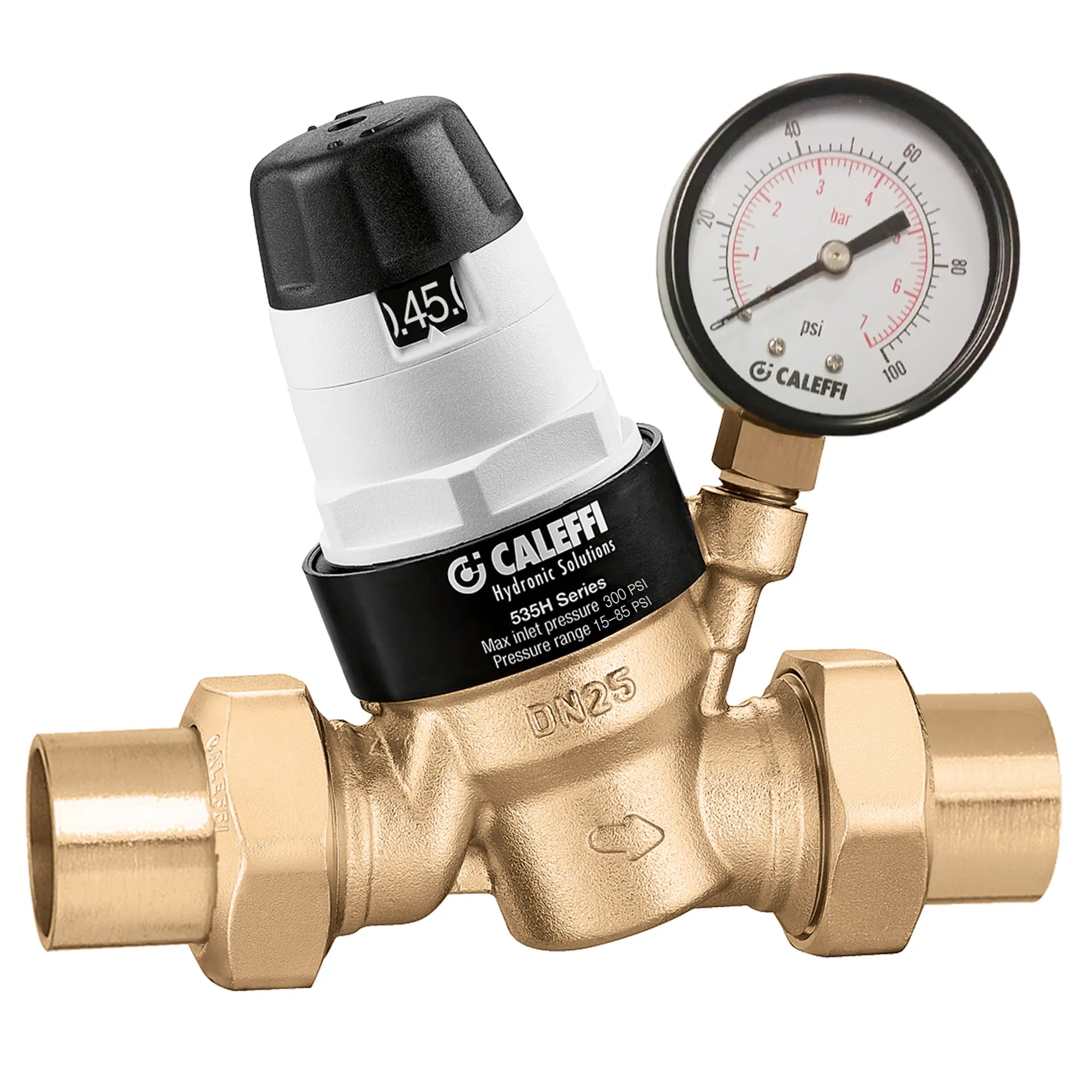

Caleffi 535991HA 2 inches Sweat Pressure Reducing Valve w/ Gauge

Product Description

The CALEFFI 535991HA is a pre-adjustable pressure reducing valve for residential and commercial applications. It features a low lead dezincification resistant "Ecobrass" body and a unique noise reducing pressure balanced cartridge. Also features low friction and anti-scale moving parts and a high flow seat design.

• Max working pressure: 300 psi (20 bar)
• Max working temperature: 180°F (80°C)
• Pressure setting range: 15 - 90 psi (1 - 6 bar)

Product Highlights

This valve has a dial indicator with direct readout, replaceable cartridge, and integral stainless steel filter. Certified to ASSE 1003, CSA B356, NSF61, NSF372.

Product Information

Standard Information

• Brand: CALEFFI
• Manufacturer Part Number: 535991HA
• Country of Origin: IT

Technical Specifications

• Max working pressure: 300 psi (20 bar)
• Max working temperature: 180 °F (80 °C)
• Pressure setting range: 15 - 90 psi (1 - 6 bar)
• Factory setting: 45 psi (3 bar)
• Size: 2"
• Inlet Type: Union Sweat
• Outlet Type: Union Sweat
• Material: Brass
• Includes: Gauge
• Manufacturer: Caleffi
• Manufacturer #: 535991HA
• Parts Town #: CALE535991HA
• Units: Each
• Body Material: Forged Brass
• End Style: C
• Flow Rate: 70 gpm
• Nominal Size: 2 in
• Inlet to Outlet Length: 8 in
• Media: Water
• Series: 535H
• Softgoods Material: Peroxide-Cured EPDM Diaphragm / Seal
• Temperature Rating: 180 deg F
• Top to Inlet Center: 7 in
• Trim Material: Stainless Steel
• Maximum operating pressure: 300 psi
• Connection: 2" Press, sweat union
• Application: For Residential and Commercial Plumbing
• Gauge Included: Yes
• Flow Rate (GPM): 64 gal/min
