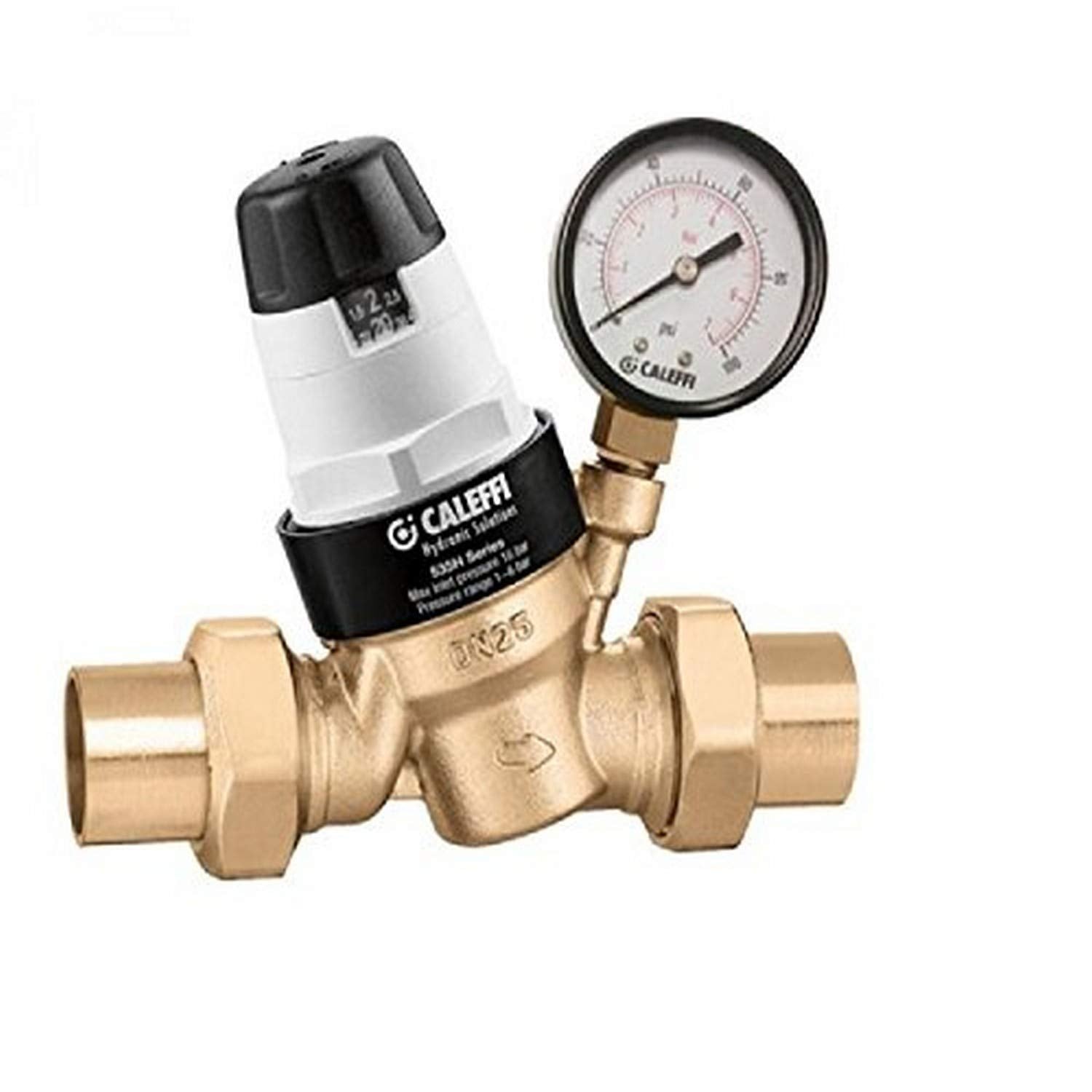

Caleffi 535981HA 535h Series Reducing Valve ASSE 1003, 1 1/2 inches Sweat w/Pressure Gauge

Product Description

The CALEFFI 535981HA pressure reducing valve features pre-adjustable settings. This valve can be set to the desired pressure before installation, using an adjustment knob with a pressure setting indicator. After installation, the system pressure automatically adjusts to the set value.

• Pre-adjustable pressure reducing valve for residential and commercial applications
• Low lead dezincification resistant "Eco brass" body
• Unique noise reducing pressure balanced cartridge

Product Highlights

This pressure reducing valve is ideal for maintaining consistent pressure in residential and commercial plumbing systems.

Product Information

Standard Information

• Brand: CALEFFI
• Manufacturer Part Number: 535981HA

Technical Specifications

• Max working pressure: 300 psi (20 bar)
• Max working temperature: 180 00b0F (80 00b0C)
• Pressure setting range: 15 - 90 psi (1 - 6 bar)
• Factory setting: 45 psi (3 bar)
• Size: 1-1/2"
• Inlet Type: Union Sweat
• Outlet Type: Union Sweat
• Material: Brass
• Includes: Gauge
• Height: 4.02 in.
• Length: 5.98 in.
• Width: 2.01 in.
• Type: Pressure Valves
• MPN: 535981HA
• Brand: CALEFFI
• Condition: New
