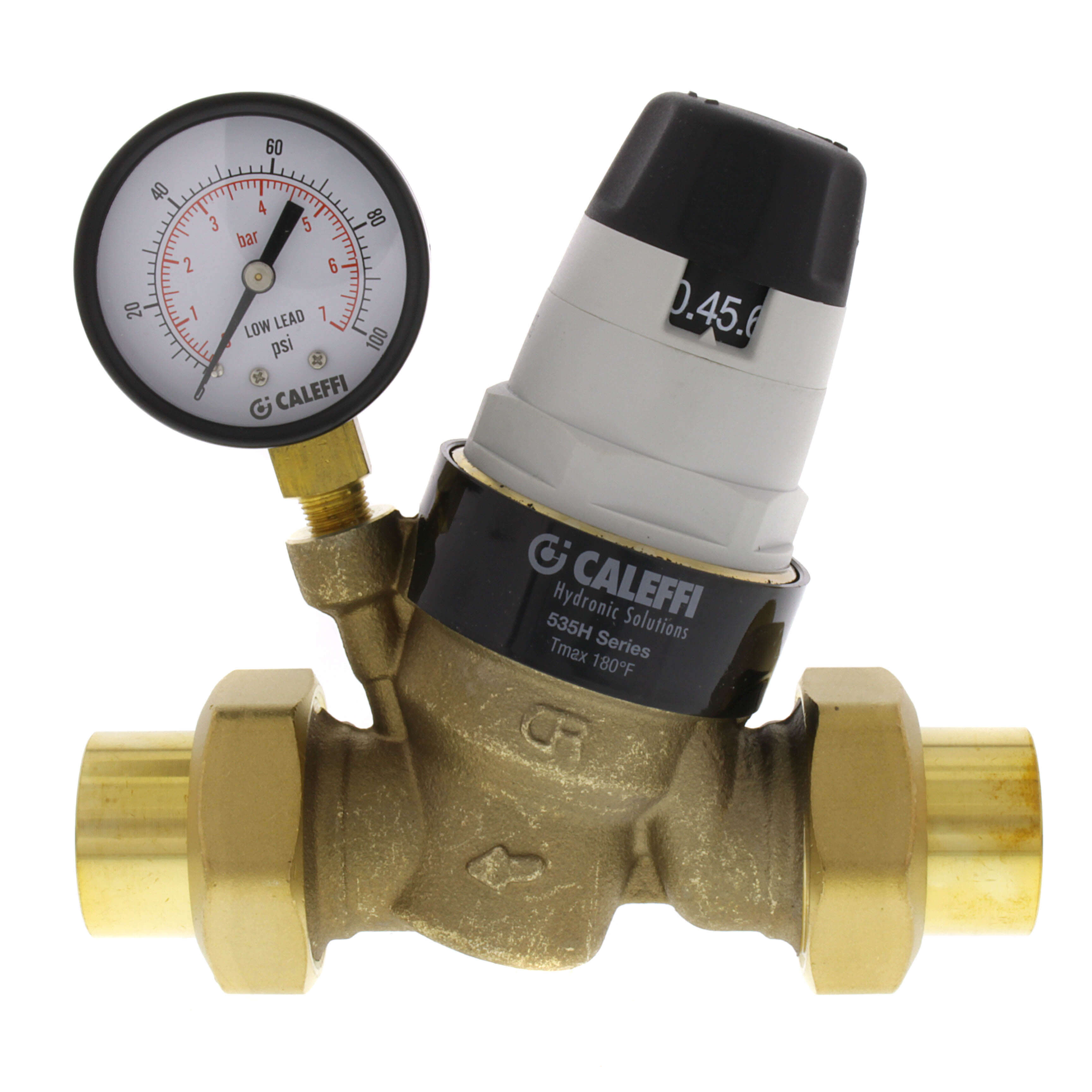

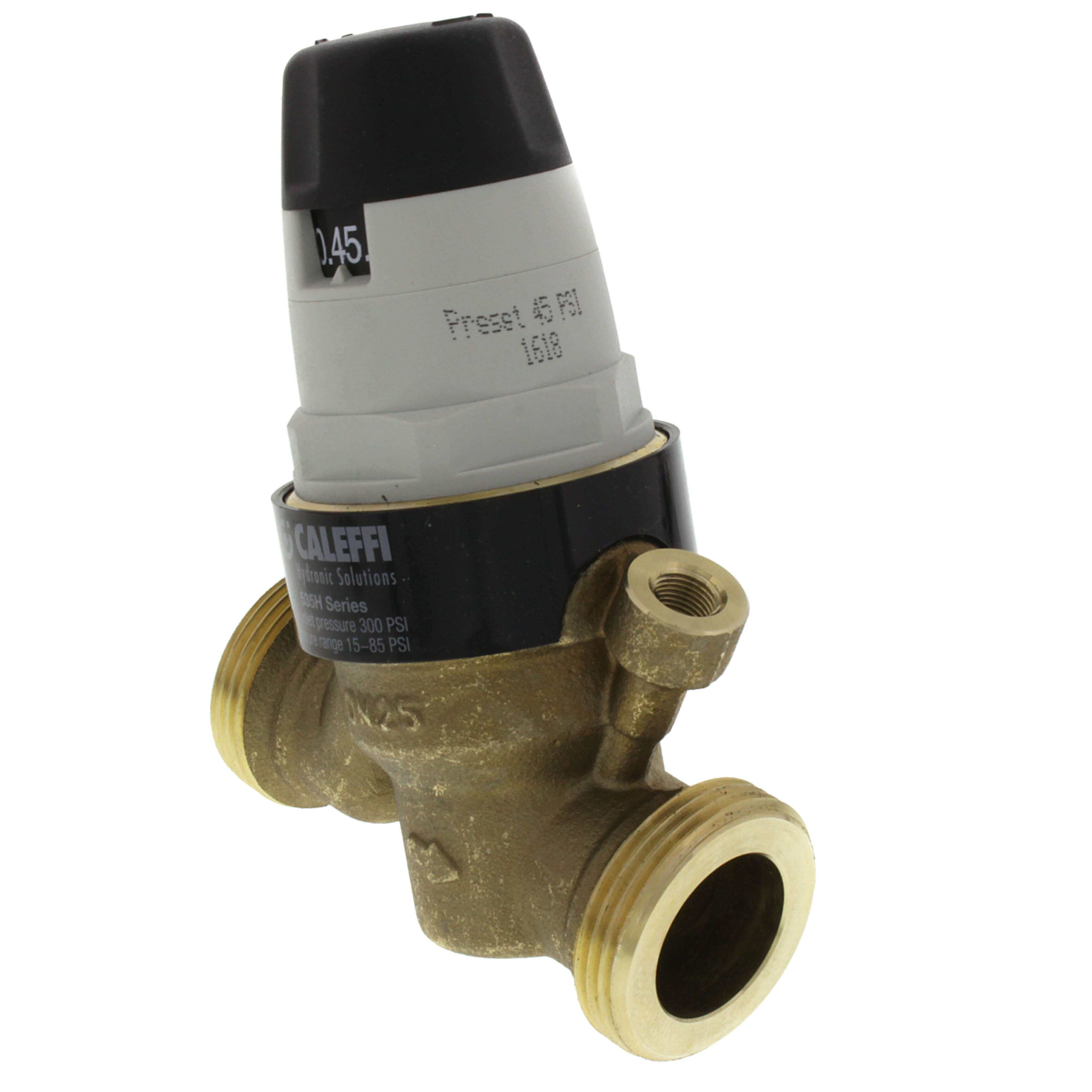

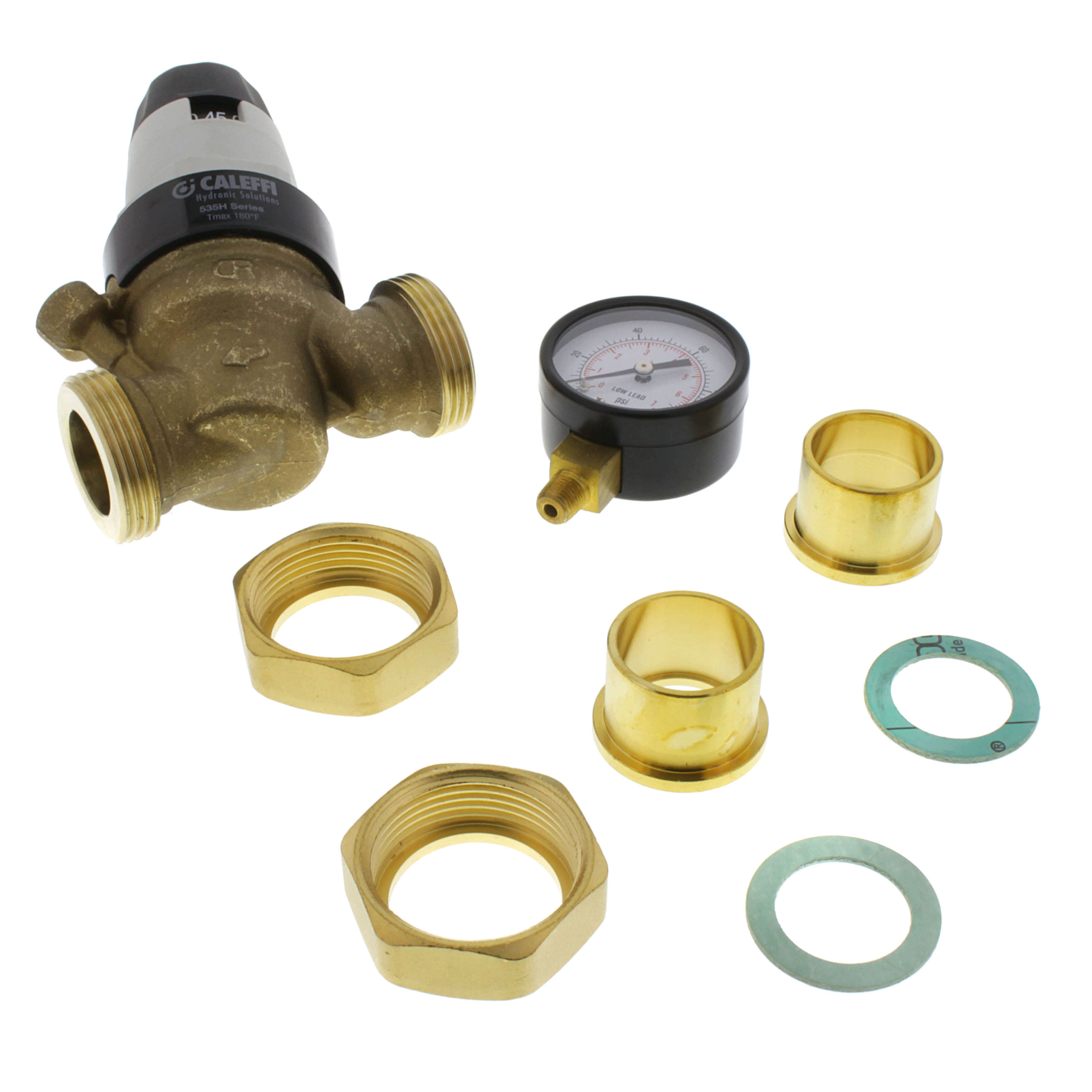

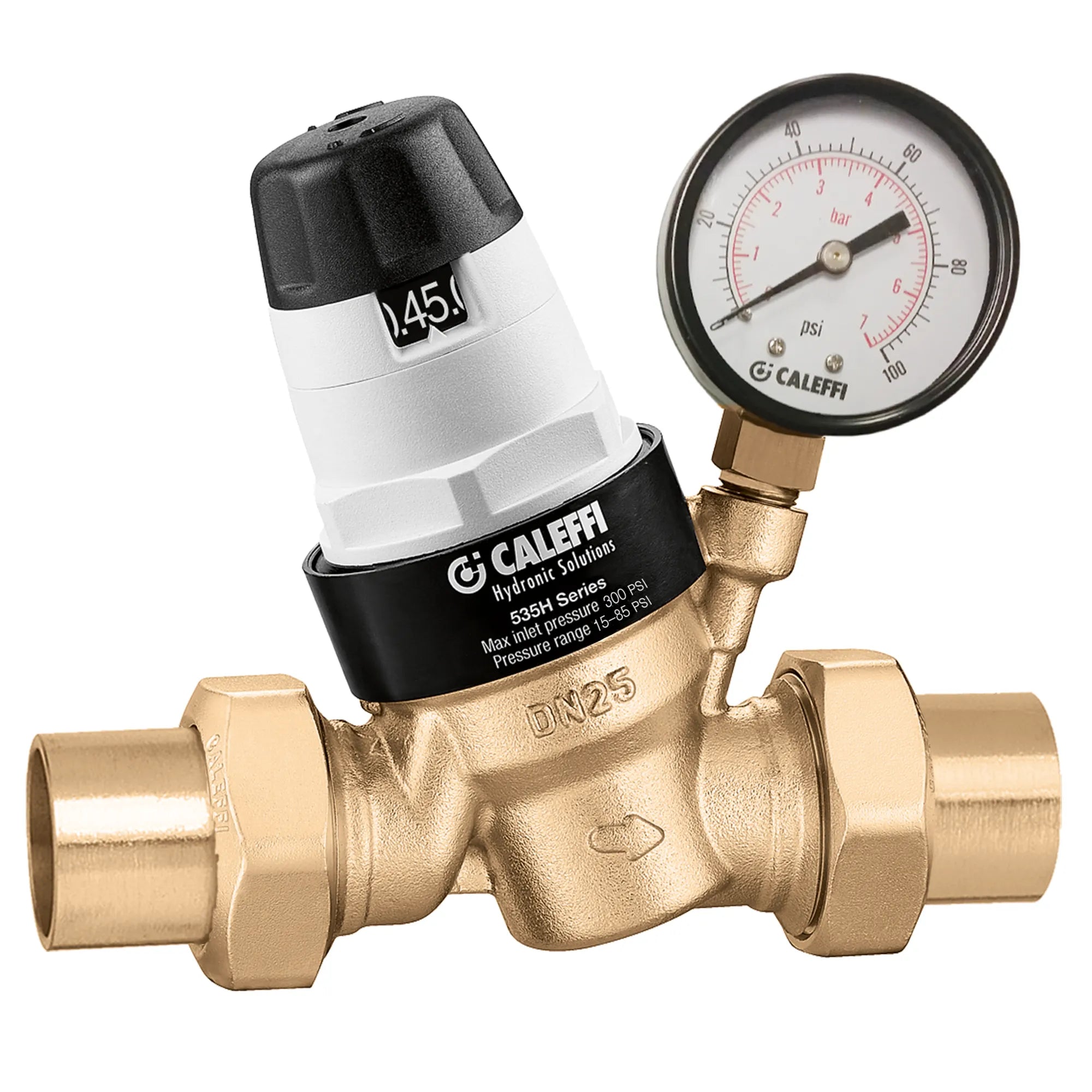

Caleffi 535961HA 535h Series Reducing Valve Asse 1003, 1 inches Sweat

Product Description

The CALEFFI 535961HA is a 535H Series reducing valve ASSE 1003, designed for residential and commercial applications. It reduces and stabilizes the pressure of water entering from the main supply. Constructed of DZR low-lead forged brass, it features a noise-reducing, high-flow seat design and a replaceable cartridge with an integral stainless steel filter.

• Pre-adjustable pressure reducing valve for residential and commercial applications
• Low lead dezincification resistant "ecobrass" body
• Unique noise reducing pressure balanced cartridge

Product Highlights

Ideal for residential and commercial applications, this valve features a dial indicator with direct readout for easy pressure pre-adjustment.

Product Information

Standard Information

• Brand: CALEFFI
• Manufacturer Part Number: 535961HA
• Country of Origin: USA

Technical Specifications

• Flow (GPM): 15.9
• Max working pressure: 300 psi (20 bar)
• Max working temperature: 180 °F (80 °C)
• Pressure setting range: 15 - 90 psi (1 - 6 bar)
• Factory setting: 45 psi (3 bar)
• Manufacturer: Caleffi
• Manufacturer #: 535961HA
• Parts Town #: CALE535961HA
• Units: Each
• Length: 1 in / 2.54 cm
• Width: 1 in / 2.54 cm
• Height: 1 in / 2.54 cm
• Material: DZR low lead brass
• Maximum working temperature: 180 °F
• Adjustment pressure range: 15 – 90 psi
• Maximum operating pressure: 300 psi
• Connection: 1" sweat, union
• Maximum flow rate: 19 gpm
• P/N: 535961HA
• Item: 1"SWT PRESSURE REDUCING VLV
• OEM: Caleffi
• OEM #: 535961HA
• Condition: New OEM Original
• Returnable: No
• Warranty: Mfr Warranty
• Mid-City Product ID: 417453
• Manufacturer Part Number: 535961HA
• UPC: 8016615549379
• Brand: Caleffi
• Connection Type: Sweat
• Dimensions: 6-5/16 in L
• Flow Rate: 19 gpm
• Lead Free Contains Lead: Contains Lead
• Material Standard: EN 1982 CC768S
• Nominal Size: 1 in
• Pressure Rating: 300 psi
• Seal Material: EPDM
• Seat Material: Stainless Steel
• Standards/Approvals: ANSI Specified|ASSE 1003 Certified|California Health and Safety Code 116875|CAN Certified|CSA B356 Certified|ICC-ES File PMG-1360 Approved|ICC-ES, File PMG-1356 Approved|IPC/IRC/UPC and NPC Listed|NSF 61/372 Certified|Reduction of Lead in Drinking Water Act S.3874|UL 2043 Listed
• Stem Material: Brass
• Temperature Rating: 180 deg F
• UNSPSC: 40141608
