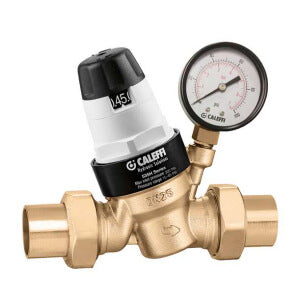

Caleffi 535761HA 1 PEX Crimp Reducing Valve With Gauge

Product Description

The Caleffi 535761HA is a 1-inch PEX Crimp Reducing Valve with Gauge. This valve is designed for both residential and commercial plumbing systems. The valve helps manage water pressure and reduce noise.

• Pre-adjustable pressure reducing valve.
• Low lead Ecobrass body.
• Integrated pressure gauge.

Product Highlights

This valve is built to reduce noise and has an anti-scale, low friction cartridge. The valve also features a high flow seat design and an integral stainless steel filter. The pressure setting ranges from 15 to 90 psi, and it has a factory setting of 45 psi.

Product Information

Standard Information

• Flow (GPM): 15.5
• Max working pressure: 300 psi
• Max working temperature: 180 degrees Fahrenheit
• Pressure setting range: 15 - 90 psi
• Factory setting: 45 psi

Technical Specifications

• Material: Forged Brass
• Inlet Type: PEX Crimp
• Outlet Type: PEX Crimp
• Maximum Flow Rate: 19 GPM
• Specifications Met: ICC ES PMG Low-Lead, ASSE 1003
• Maximum Pressure Rating: 300 PSI
• Maximum Temperature Rating: 180 degrees Fahrenheit
