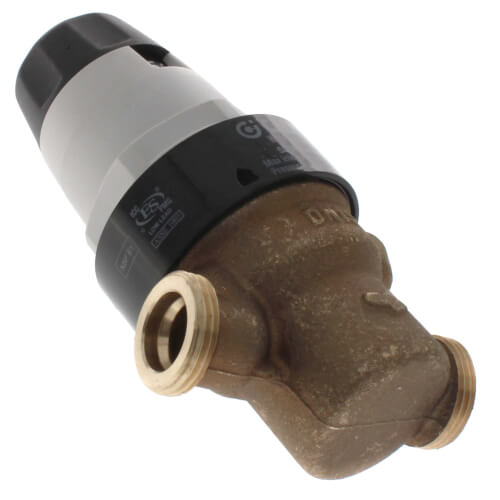

Caleffi 535391HA 2 NPTF Pressure Reducing Valve w/ Gauge (Low Lead, Pre-adjustable)

Product Description

The Caleffi 535391HA is a two-inch NPTF pressure reducing valve designed for both residential and commercial plumbing applications. This valve features a gauge for easy monitoring and is made from low lead, dezincification-resistant Ecobrass. The unique noise-reducing cartridge minimizes sound while in operation. This valve includes low friction and anti-scale moving parts for improved performance.

• Pre-adjustable pressure setting
• Integral stainless steel filter
• High flow capacity with a maximum pressure of three hundred psi

Product Highlights

This valve is suitable for high flow applications and meets all relevant plumbing codes in the U.S. and Canada.

Product Information

Standard Information

• Brand: Caleffi
• MPN: 535391HA
• Material: Brass

Technical Specifications

• Max Working Pressure: 300 psi
• Max Working Temperature: 180 degrees F
• Pressure Setting Range: 15 to 90 psi
• Factory Setting: 45 psi
• Inlet Type: FNPT
• Outlet Type: FNPT
• Weight: 7.5 lbs
• Dimensions: Length 8.375 inches, Height 8.5 inches
