Caleffi 535381HA Pressure Reducing Valve w/ Gauge Low Lead 1-1/2 FNPT FNPT

Product Description

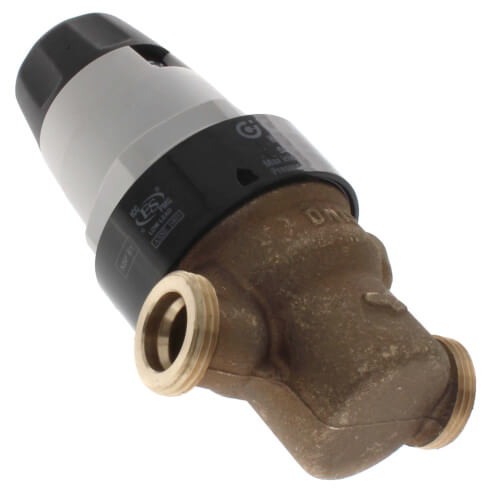

The Caleffi 535381HA is a pre-adjustable pressure reducing valve designed for various applications in residential and commercial plumbing. It features a low lead dezincification resistant Ecobrass body that ensures a long service life. This valve includes a dial indicator for easy pressure readings and is equipped with a replaceable cartridge for maintenance.

• Pre-adjustable for precise settings
• Includes a gauge for direct readout
• Integral stainless steel filter included

Product Highlights

This pressure reducing valve is essential for maintaining consistent pressure in plumbing systems, protecting fixtures and appliances from damage due to high pressure.

Product Information

Standard Information

• Brand: Caleffi
• MPN: 535381HA

Technical Specifications

• Max working pressure: 300 psi (20 bar)
• Max working temperature: 180 degrees F (80 degrees C)
• Pressure setting range: 15 - 90 psi (1 - 6 bar)
• Factory setting: 45 psi (3 bar)
• Material: Lead-free Ecobrass
• Inlet type: FNPT
• Outlet type: FNPT
• Shipping dimensions: 10.5 inches (depth) x 9.25 inches (width) x 4 inches (height)
