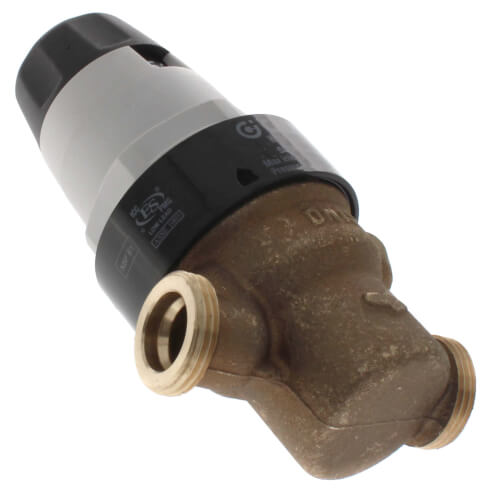

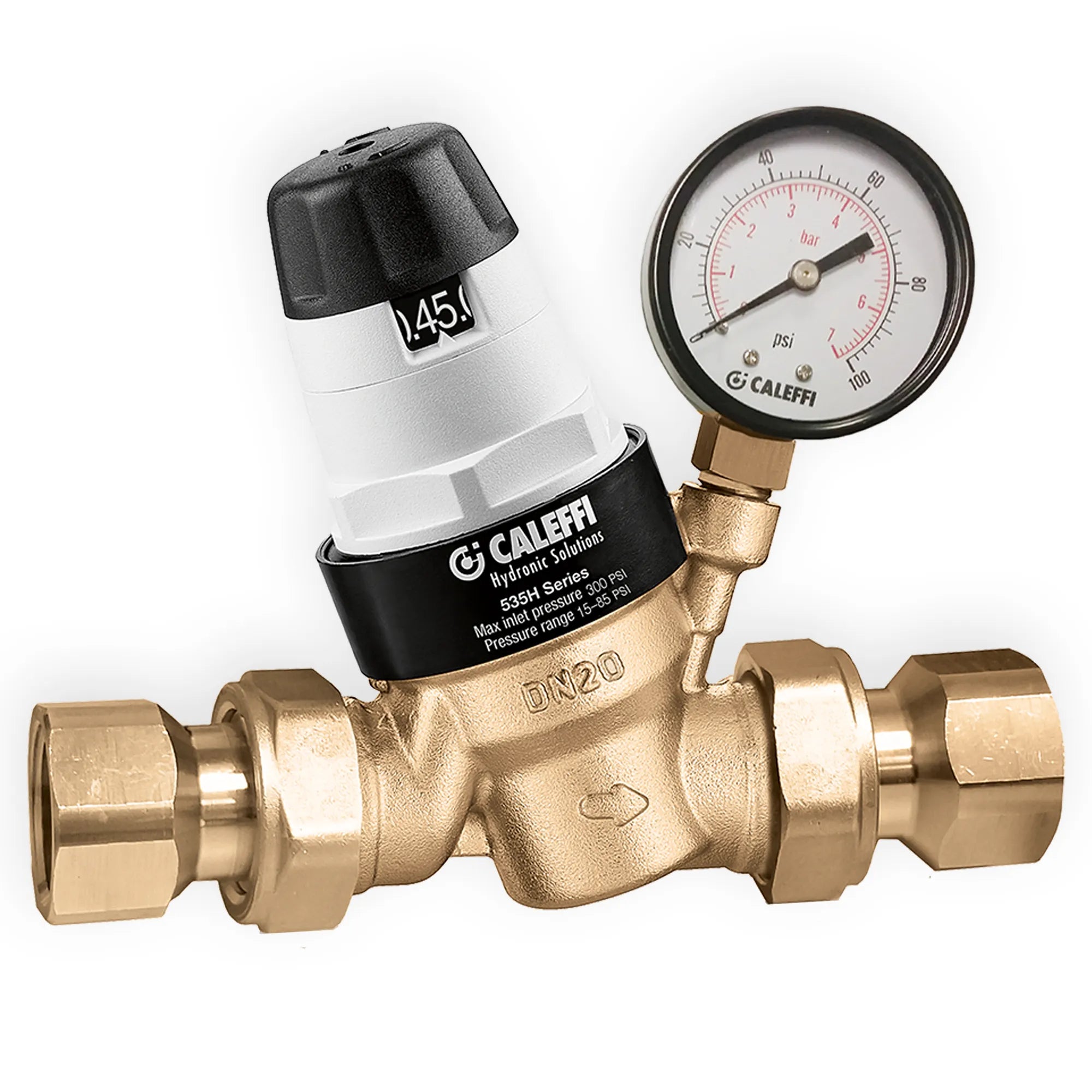

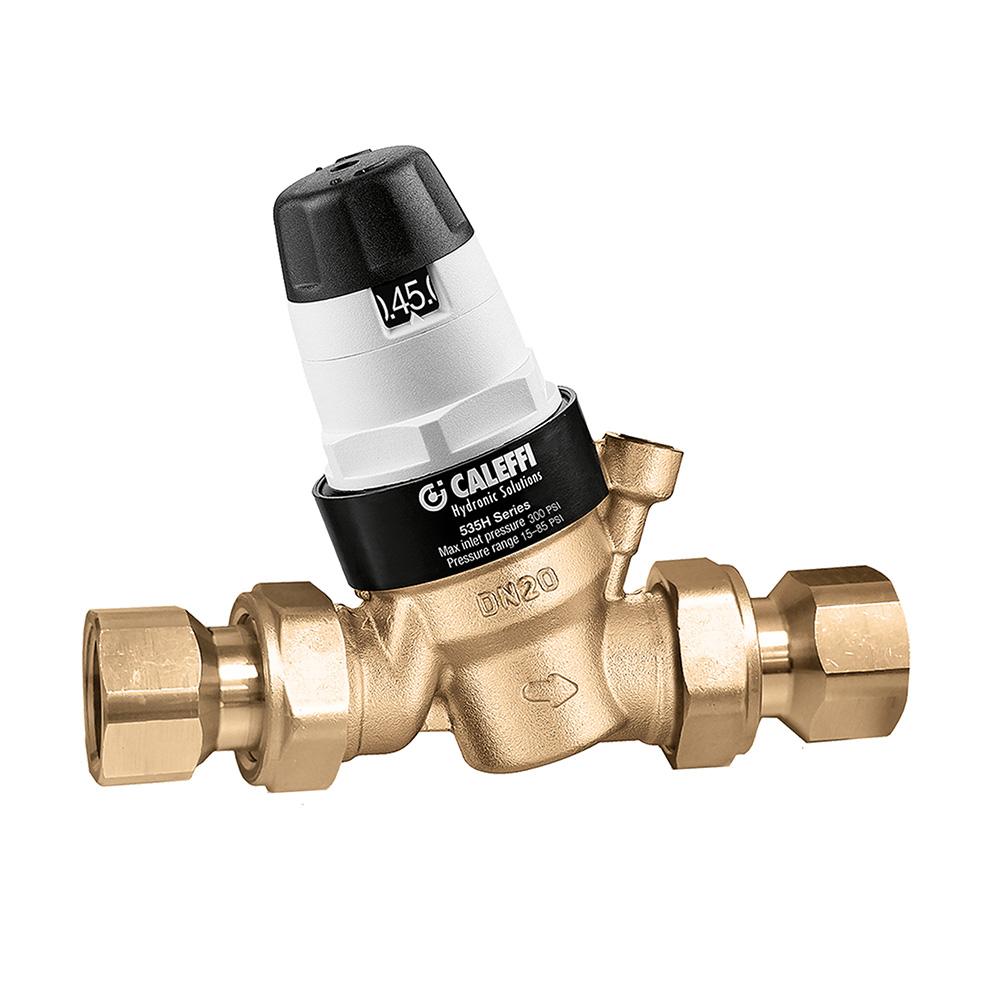

Caleffi 535380HA 535h Series Pressure Reducing Valve 1 1/2 inches NPT

Product Description

The CALEFFI 535380HA is a pre-adjustable pressure reducing valve for residential and commercial applications. It features a low lead dezincification resistant "Eco brass" body and a unique noise reducing pressure balanced cartridge. Also features low friction and anti-scale moving parts and a high flow seat design with dial indicator.

• Pre-adjustable pressure reducing valve for residential and commercial applications
• Low lead dezincification resistant "Eco brass" body
• Unique noise reducing pressure balanced cartridge

Product Highlights

This pressure reducing valve is ideal for maintaining consistent pressure in residential and commercial plumbing systems.

Product Information

Standard Information

• Brand: CALEFFI
• Manufacturer Part Number: 535380HA
• Country of Origin: IT

Technical Specifications

• Flow (GPM): 5.6
• Max working pressure: 300 psi (20 bar)
• Max working temperature: 180 °F (80 °C)
• Pressure setting range: 15 - 90 psi (1 - 6 bar)
• Factory setting: 45 psi (3 bar)
• Certified to: ASSE 1003, CSA B356, NSF61, NSF372, Low Lead Laws and listed by ICC-ES. Meets codes IPC, IRC and UPC for use in accordance with the U.S. and Canadian plumbing codes.
• Size: 1-1/2"
• Max Pressure (PSI): 300
• Inlet Type: FNPT
• Outlet Type: FNPT
• Material: Brass
• Maximum working temperature: 180 °F
• Adjustment pressure range: 15 – 90 psi
• Maximum operating pressure: 300 psi
• Connection: 1 1/2" NPT female, union
• Maximum flow rate: 44 gpm
• Manufacturer (Brand): Caleffi
• Manufacturer Item Number: 535380HA
• UPC: 8016615576290
• Weight (lb): 4.63
• Package Quantity: Each
• Flow Rate: 44 GPM, 7.3 GPM
• Valve Size: 1 1/2 Inch
• Model Number: 535H
• Operating Temperature: 35.6 to 180° F
• Pressure: 15 psi to 90 psi, 300 psi max.
• Flow Rate (GPM): 42 gal/min
• Application: For Residential and Commercial Plumbing
• Includes: Protective Snap-on Cover
• Pressure Rating: 300 psi
• Series: 535H
• Temperature Rating: 180 degree F
• Weight: 4.63 lb
• Height: 1.50 in.
• Length: 2.99 in.
• Type: Pressure Valves
• Width: 1.50 in.
• Inventory Number: CALE535380HA
• MPN: 535380HA
