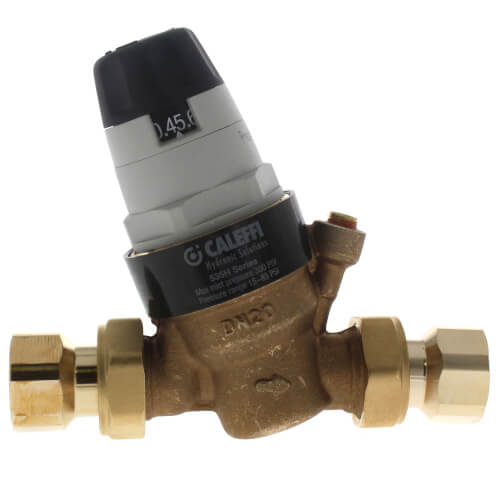

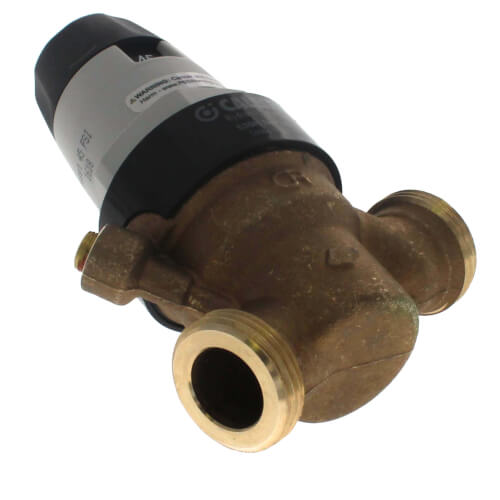

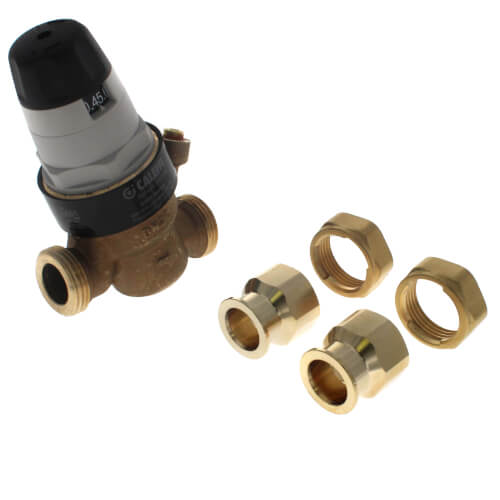

Caleffi 535350HA PressCal PRV ASSE 1003, Female 3/4 NPT

Product Description

The Caleffi 535350HA is a pressure reducing valve designed for both residential and commercial use. Its pre-adjustable feature allows for easy settings between 15 and 90 psi, making it ideal for various applications.

• Constructed with low lead dezincification resistant Ecobrass.
• Unique noise-reducing pressure balanced cartridge.
• Integral stainless steel filter for enhanced performance.

Product Highlights

The valve ensures reliability and efficiency, with a maximum working pressure of three hundred psi and a maximum temperature of one hundred eighty degrees Fahrenheit. Its design prevents scale buildup and keeps noise levels low, making it suitable for plumbing systems in homes and businesses.

Product Information

Standard Information

• Brand: Caleffi North America
• Connection Type: FIP
• Size: 3/4 inches

Technical Specifications

• Flow: 10.0 GPM
• Max Working Pressure: 300 psi (20 bar)
• Max Working Temperature: 180°F (80°C)
• Pressure Setting Range: 15 - 90 psi (1 - 6 bar)
• Factory Setting: 45 psi (3 bar)
• Standards Certified: ASSE 1003, CSA B356, NSF61, NSF372
• Application: Meets U.S. and Canadian plumbing codes
