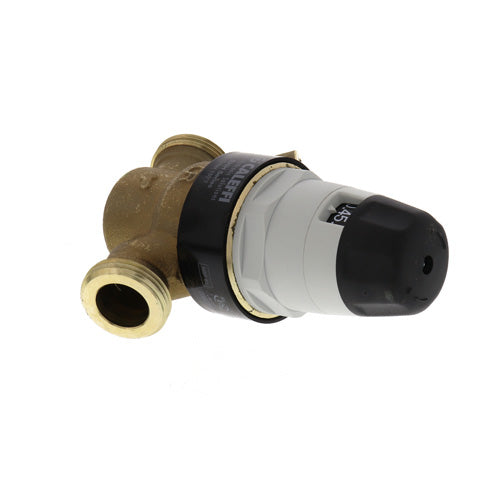

Caleffi 535351HA 3/4 FNPT Pressure Reducing Valve with Gauge

Product Description

The Caleffi 535351HA is a 3/4 FNPT pressure reducing valve designed for residential and commercial applications. This valve protects downstream piping systems from excessive water pressure. It features a lead-free brass construction, making it durable and reliable.

• Pre-adjustable pressure reducing valve
• Dezincification-resistant Ecobrass body
• Unique noise reducing pressure balanced cartridge

Product Highlights

This Caleffi pressure reducing valve offers precision control with an adjustable range of 15 to 90 psi. It includes a diaphragm actuator for accurate pressure regulation and an integral stainless steel filter for enhanced performance.

Product Information

Standard Information

• Brand: Caleffi
• MPN: 535351HA
• Category: Valves > Pressure Reducing Valves
• Material: Forged Brass
• Inlet Type: FNPT
• Outlet Type: FNPT

Technical Specifications

• Flow Rate: 5.6 GPM
• Max Working Pressure: 300 psi (20 bar)
• Max Working Temperature: 180 degrees Fahrenheit (80 degrees Celsius)
• Pressure Setting Range: 15 - 90 psi (1 - 6 bar)
• Factory Setting: 45 psi (3 bar)
• Certifications: ASSE 1003, CSA B356, NSF61, NSF372
• Compliance: Low Lead Laws, ICC-ES certified
