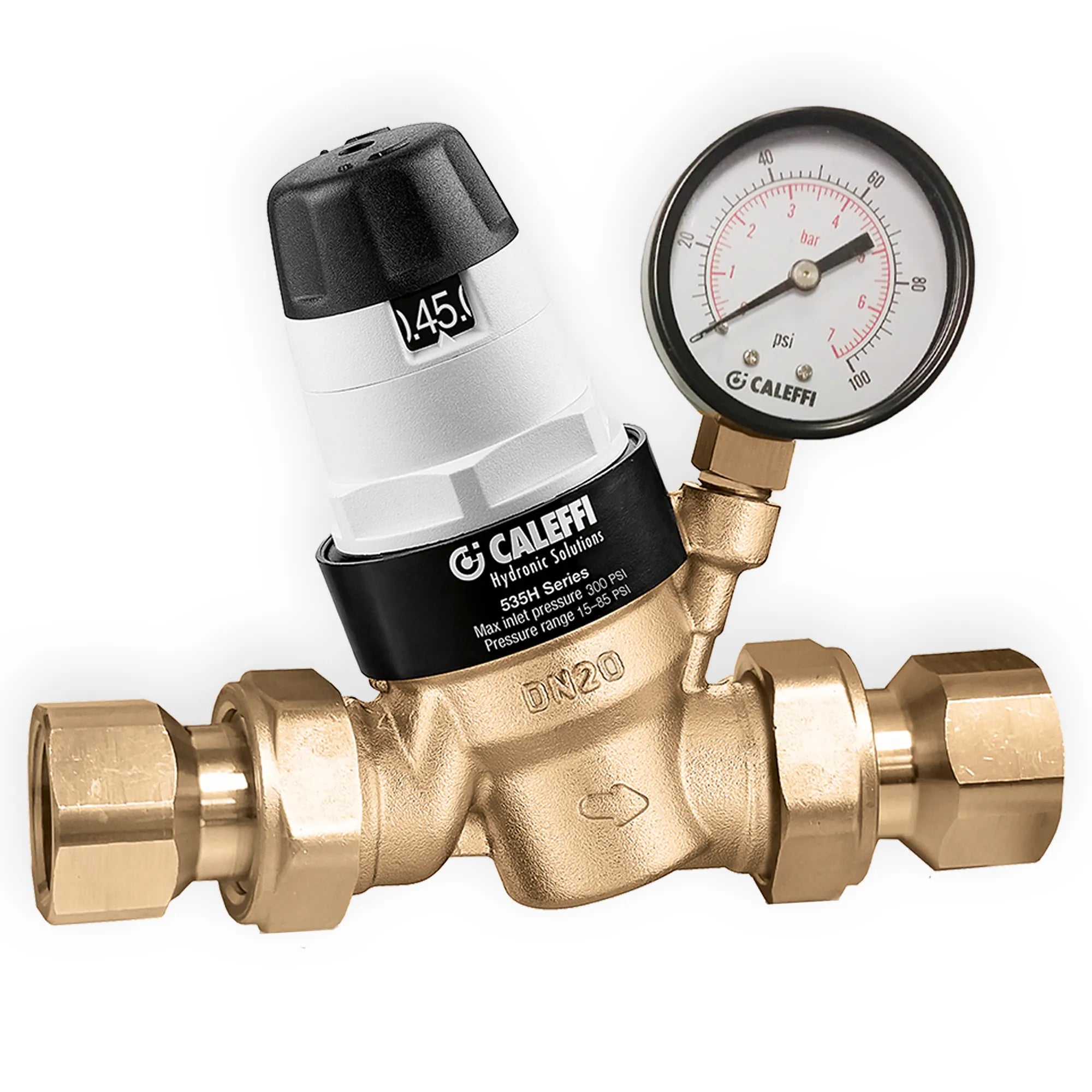

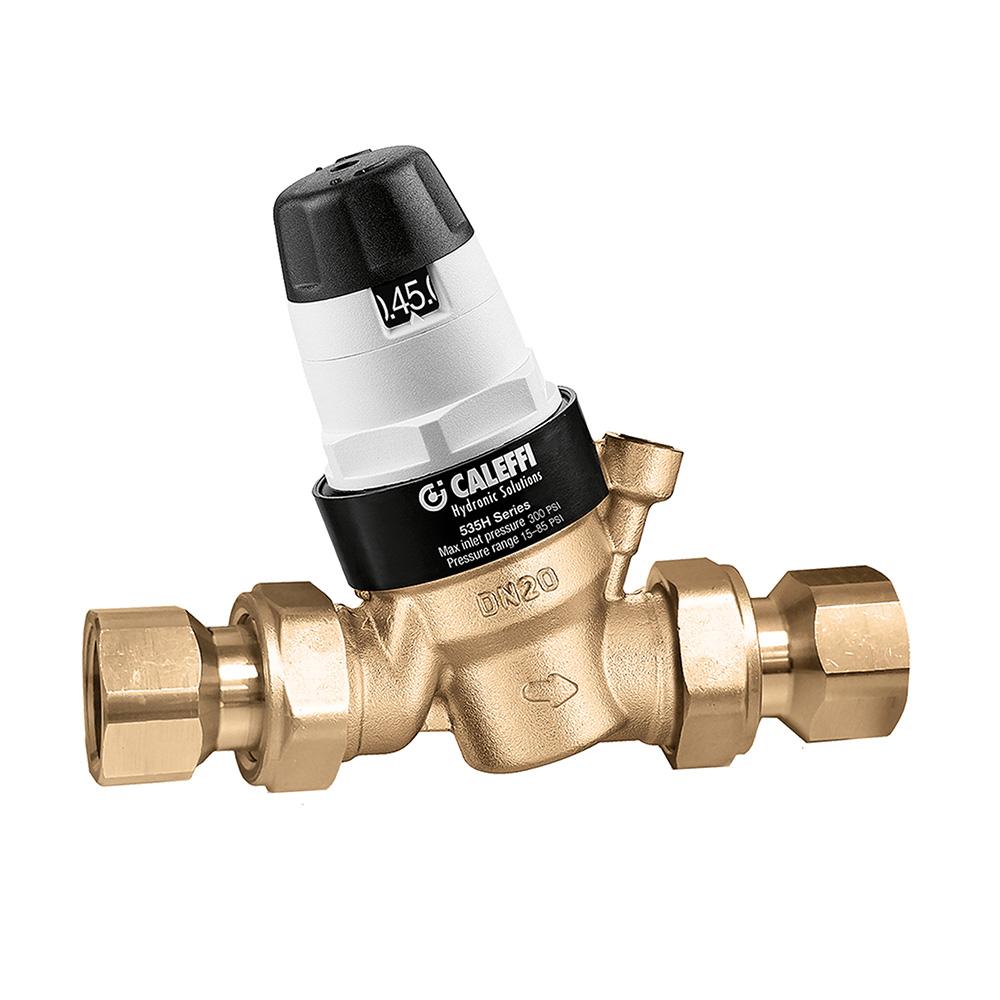

Caleffi 535340HA 535h Series Pressure Reducing Valve ASSE 1003, Female 1/2 inches NPT

Product Description

The CALEFFI 535340HA is a pre-adjustable pressure reducing valve for residential and commercial applications. It features a low lead dezincification resistant "Ecobrass" body and a unique noise reducing pressure balanced cartridge. The valve has low friction and anti-scale moving parts and a high flow seat design with dial indicator for direct readout.

• Pre-adjustable pressure reducing valve for residential and commercial applications
• Low lead dezincification resistant "Ecobrass" body
• Unique noise reducing pressure balanced cartridge

Product Highlights

This valve is ideal for reducing and stabilizing water pressure in residential and commercial water systems. It features a replaceable cartridge and an integral stainless steel filter.

Product Information

Standard Information

• Brand: CALEFFI
• Manufacturer Part Number: 535340HA

Technical Specifications

• Flow (GPM): 5.6
• Max working pressure: 300 psi (20 bar)
• Max working temperature: 180 deg F
• Pressure setting range: 15 - 90 psi (1 - 6 bar)
• Factory setting: 45 psi (3 bar)
• Body Material: Forged Brass
• End Style: FNPT
• Inlet to Outlet Length: 5-3/4 in
• Media: Water
• Nominal Size: 1/2 in
• Series: 535H
• Softgoods Material: Peroxide-Cured EPDM Diaphragm/Seal
• Top to Inlet Center: 4-1/2 in
• Trim Material: Stainless Steel
• Type: Pre-Adjustable
• Size: 1/2"
• Max Pressure (PSI): 300
• Min Pressure (PSI): 15
• Inlet Type: FNPT
• Outlet Type: FNPT
• Material: DZR low lead brass
• Maximum operating pressure: 300 psi
• Connection: 1/2" NPT female, union
• Maximum flow rate: 7.3 gpm
• Manufacturer (Brand): Caleffi
• Manufacturer Item Number: 535340HA
• UPC: 8016615549256
• Valve Size: 1/2 Inch
• Model Number: 535H
• Operating Temperature: 35.6F to 180F
• Pressure: 15 psi to 90 psi, 300 psi max.
• Exterior Finish: Stainless Steel
• Inlet Connection Type: National Pipe Tapered
• Number of Ports: 2
• Specification Met: CSA
• Part Number: 535340HA
• Item model number: 535340HA
• Item Package Quantity: 1
• Included Components: Pressure Reducing Valve
• Batteries Required?: No
• Adjustment pressure range: 15 – 90 psi
