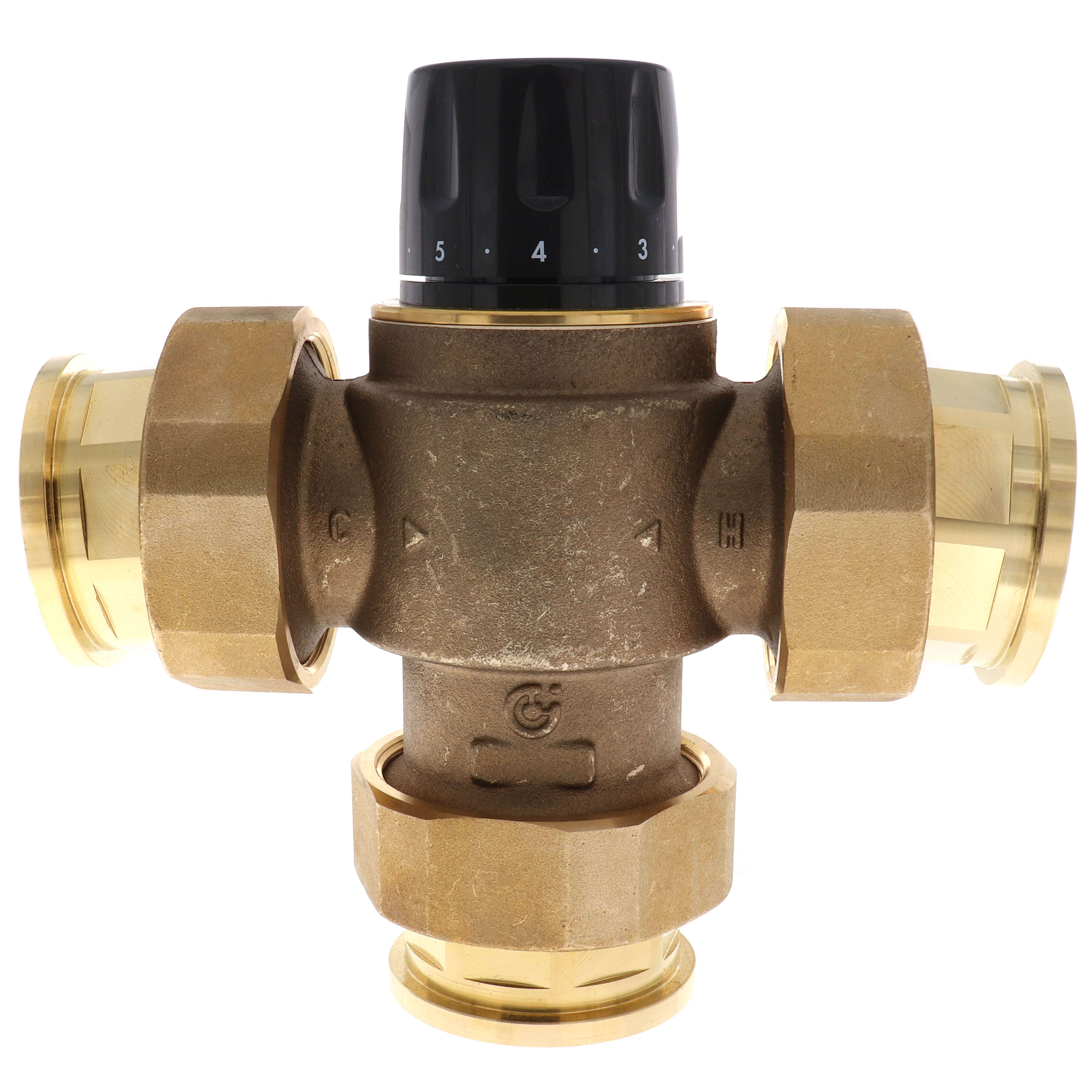

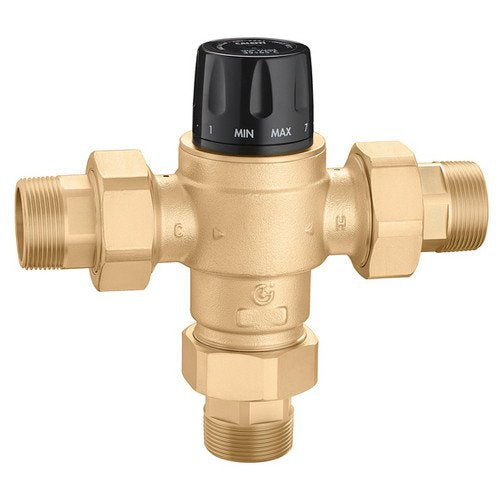

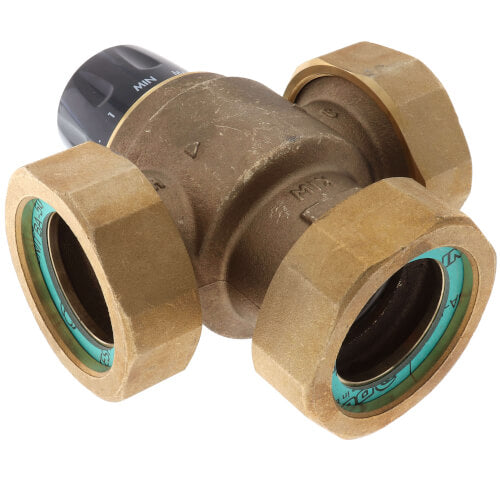

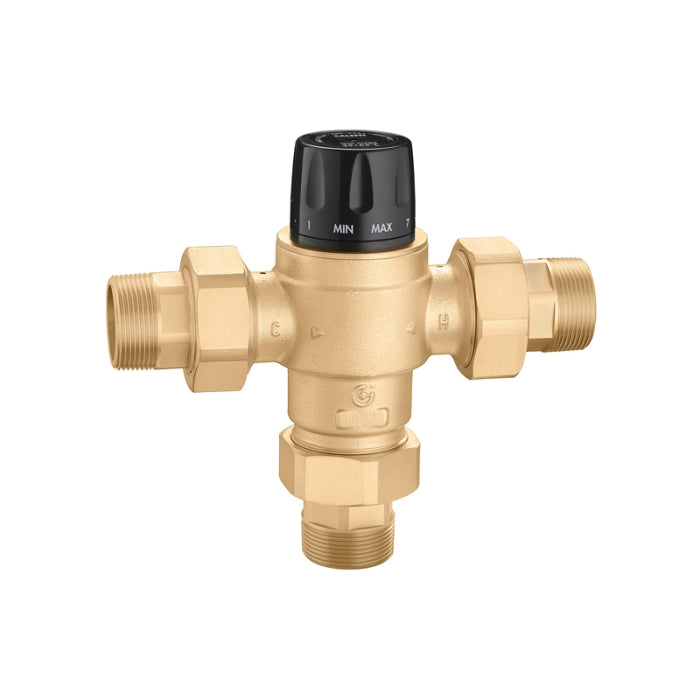

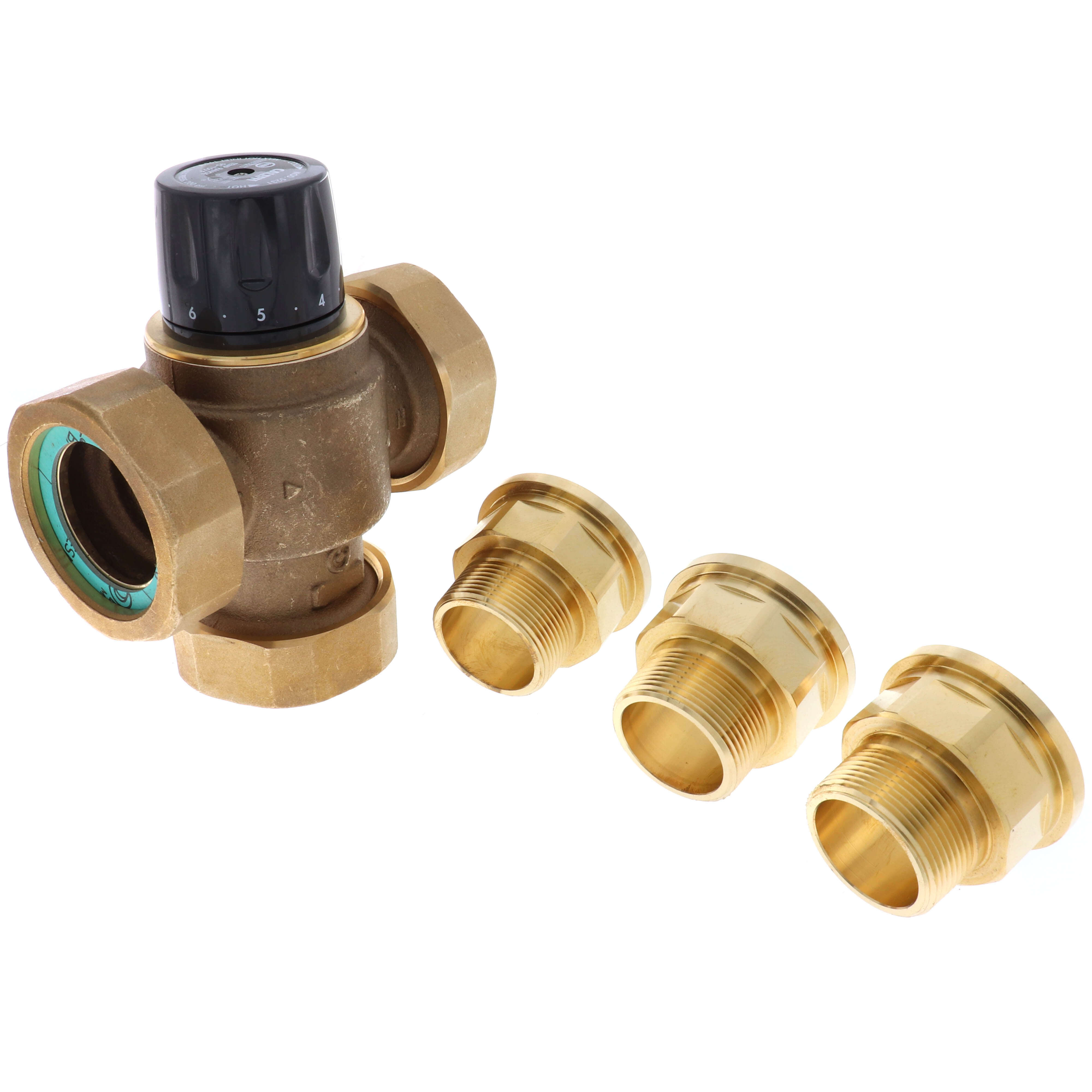

Caleffi 523180A 3-way high-flow thermostatic mixing valve 1-1/2 inch

Product Description

The Caleffi 523180A thermostatic mixing valve is designed for domestic hot water and radiant heating systems. This 3-way, high-flow valve maintains a constant mixed water temperature, even with variations in supply pressure, temperature, or flow rate. It features a brass body, MNPT x MNPT threaded connections, and a 1-1/2 inch nominal size. The valve is ASSE 1017 approved for point of distribution, ensuring precise and stable temperature control.

• Maintains constant mixed water temperature
• ASSE 1017 approved for point of distribution
• Designed for high flow rates and precise, stable temperature control

Product Highlights

This Caleffi 523180A thermostatic mixing valve ensures constant mixed water temperature for domestic hot water and radiant heating systems, featuring high flow rates and ASSE 1017 approval.

Product Information

Standard Information

• Brand: CALEFFI
• Manufacturer Part Number: 523180A

Technical Specifications

• Nominal Size: 1-1/2 inch
• Connection Type: MNPT x MNPT
• Connection Method: Threaded
• Max Pressure: 200 PSI
• Max Temperature: 195°F
• Flow Capacity (Cv): 13
• Max Flow: 70 GPM
• Min Flow: 8.8 GPM
• Body Material: Brass
• Body Pattern: 3-Way
• Application: Point of Source
• Standards Met: ASSE 1017
• Lead Free: Yes
• End Style: MNPT
• Media: Water/Glycol
• Series: 5321
• Seal Material: EPDM
• Operating Temperature Range: 95 to 150°F
• Trim Material: Stainless Steel
• Type: High-Flow
