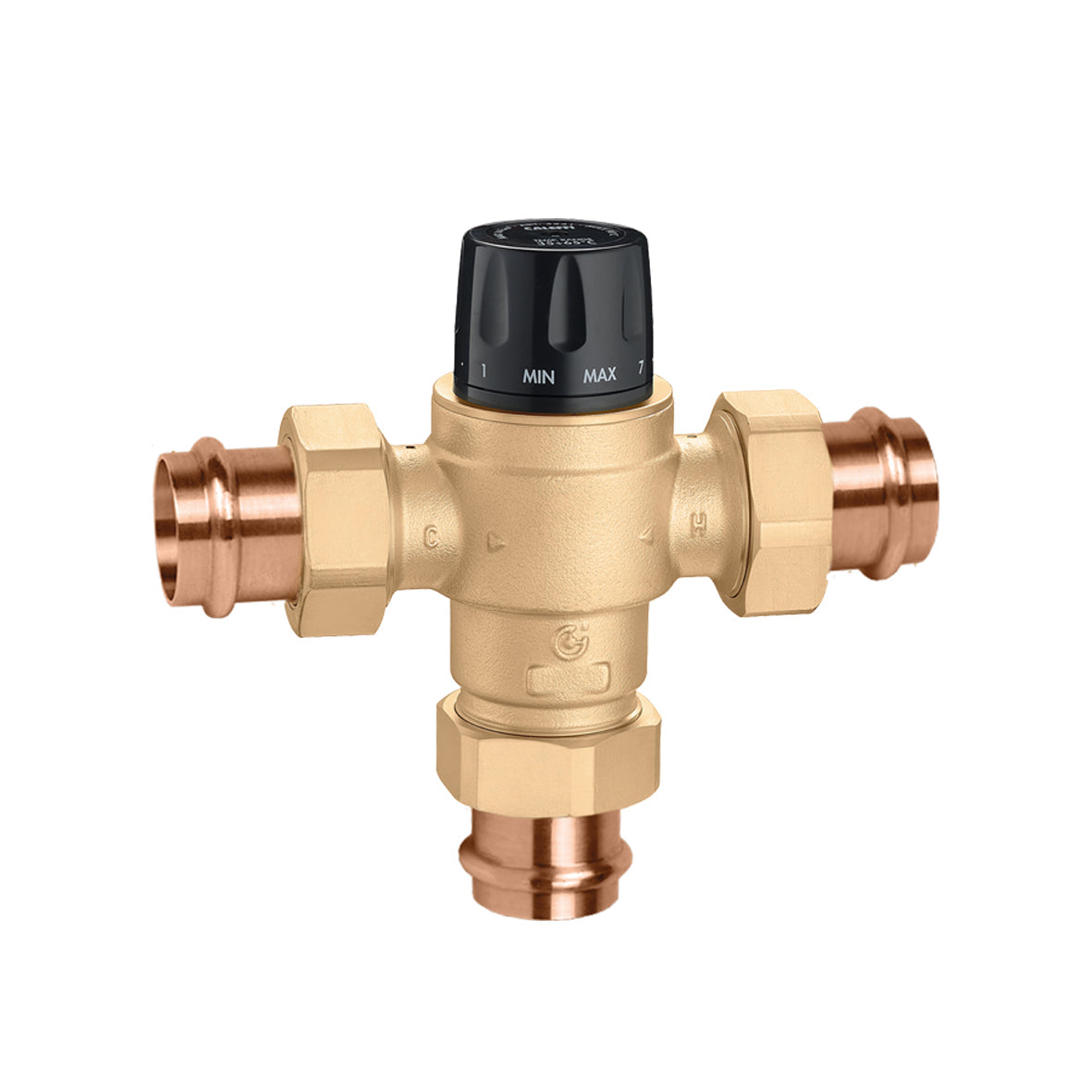

Caleffi 523176A high flow 3-way mixing valve 1 1/4 inches press

Product Description

The CALEFFI 523176A thermostatic mixing valve is designed for domestic hot water or radiant heating systems. It maintains a constant mixed water temperature despite variations in supply pressure, temperature, or flow rate. This 5231 series valve is ASSE 1017 approved for point of distribution, engineered for high flow rates and precise, stable temperature control.

• 1-1/4 inch Press x Press connection for secure installation.
• Constructed from durable Brass material.
• ASSE 1017 approved for point of distribution applications.

Product Highlights

High flow thermostatic mixing valve with precise and stable temperature control.

Product Information

Standard Information

• Brand: CALEFFI
• Manufacturer Part Number: 523176A

Technical Specifications

• Size: 1-1/4"
• Material: Brass
• Application: Point of Source
• Body Pattern: 3-Way
• Standards Met: ASSE 1017
• Min Flow (GPM): 4.4
• Connection Type: Press x Press
• Flow Capacity (Cv): 7.6
• Max Operating Pressure: 200 psi
• Adjustment Temperature Range: 95–150 °F
• Max Inlet Temperature: 195 °F
