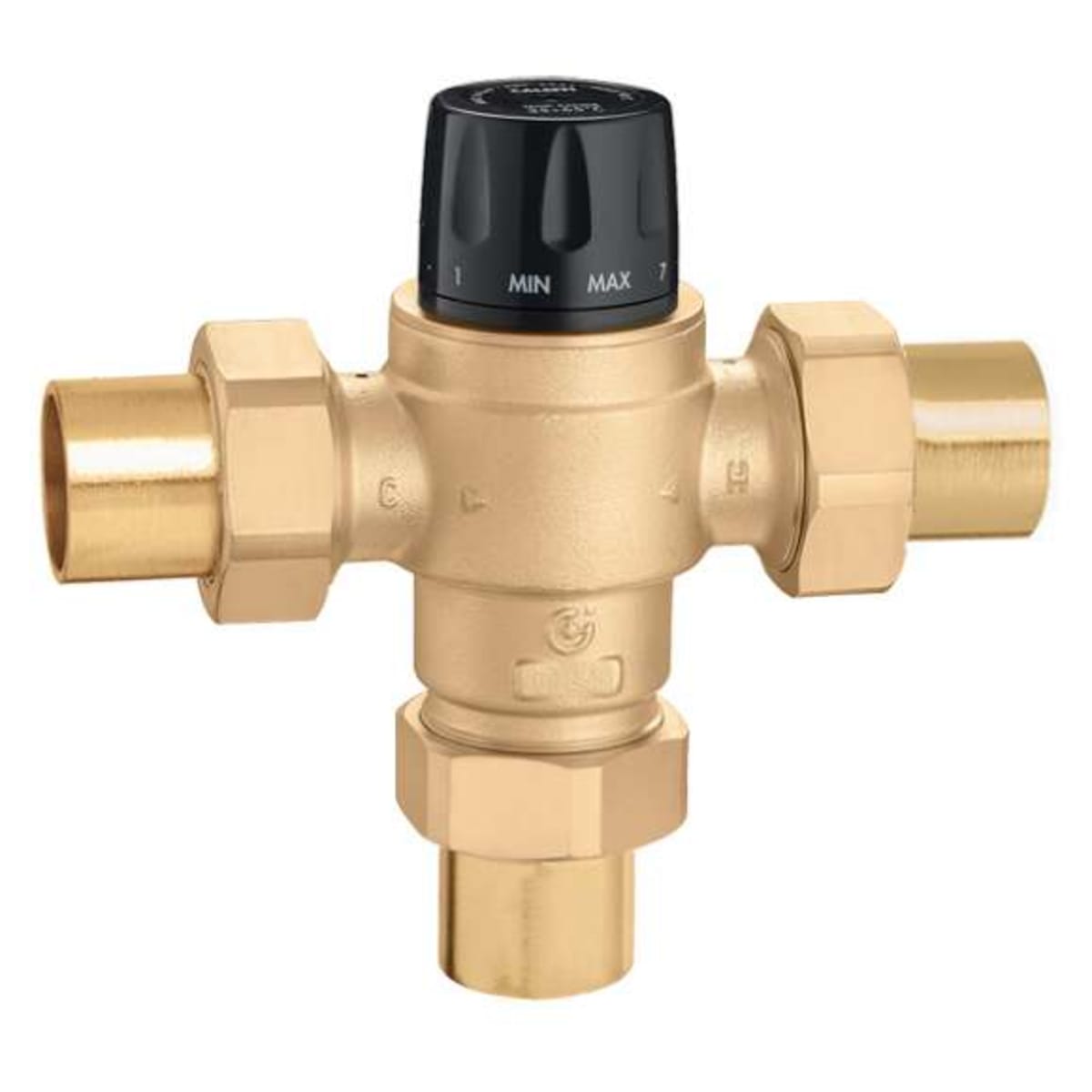

Caleffi 523168A MixCal+ High Flow 3-Way Mixing Valve 1 Sweat

Product Description

The Caleffi thermostatic mixing valve, model 523168A, is designed for use in systems generating domestic hot water or in radiant heating setups. It maintains a consistent temperature of the mixed water supplied to users, even with changes in supply pressure and temperature of the incoming hot and cold water. This valve supports systems that require high flow rates while ensuring stable temperature control.

• High flow capacity of four point four gallons per minute.
• Constructed with a brass body and stainless steel trim.
• Certified under ASSE 1017 for safe point-of-distribution applications.

Product Highlights

This valve is ideal for various heating systems, particularly where flow rates vary significantly or precise temperature management is essential.

Product Information

Standard Information

• Brand: Caleffi North America
• Type: 3-Way Mixing Valve

Technical Specifications

• MPN: 523168A
• Nominal Size: 1 inch
• Connection Type: Sweat
• Flow Capacity: 4.4 gpm
• Pressure Rating: 200 psi
• Temperature Range: 95 to 150 degrees Fahrenheit
• Body Material: Brass
• Seal Material: EPDM
• Trim Material: Stainless Steel
• Dimensions: 7 inches height
