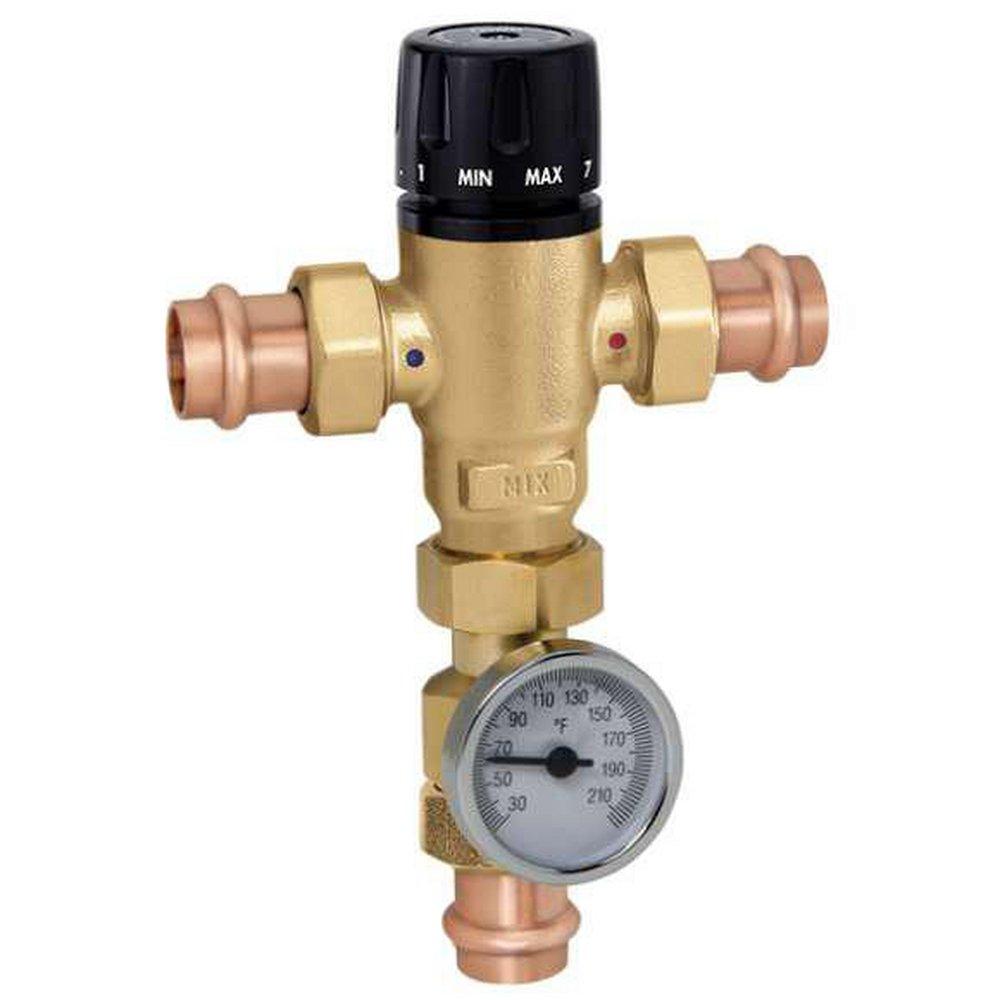

Caleffi 521616A MixCal 1 in Press Thermostat Mixing Valve

Product Description

The Caleffi MixCal 521616A is a 1-inch press thermostatic mixing valve designed for use in hydronic heating and hot water systems. This valve regulates mixed water temperature by adjusting the ratio of hot and cold water supply, ensuring consistent output.

• Adjustable thermostatic mixing range: 85 to 150 degrees Fahrenheit
• Maximum inlet temperature: 195 degrees Fahrenheit
• Maximum working pressure: 200 psi

Product Highlights

This valve is built with DZR low-lead brass and includes internal anti-scale materials to enhance longevity and performance in demanding environments.

Product Information

Standard Information

• Brand: Caleffi
• MPN: 521616A

Technical Specifications

• Nominal Size: 1 inch
• Flow Capacity: 1 gpm
• Series: 521
• Body Material: Brass
• Pressure Rating: 200 psi
• Temperature Rating: 85 to 150 degrees Fahrenheit
• Inlet to Outlet Length: 5-7/8 inches
• Top to Inlet Center: 2-5/8 inches
