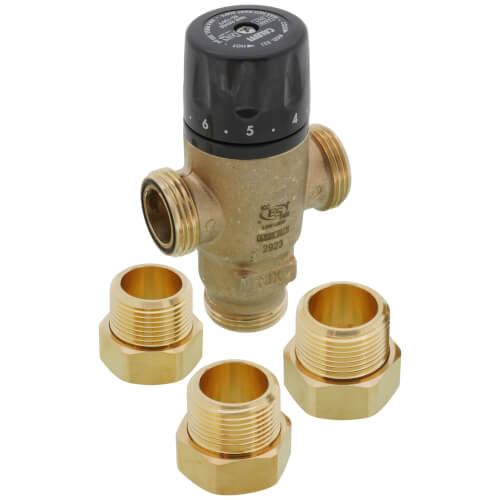

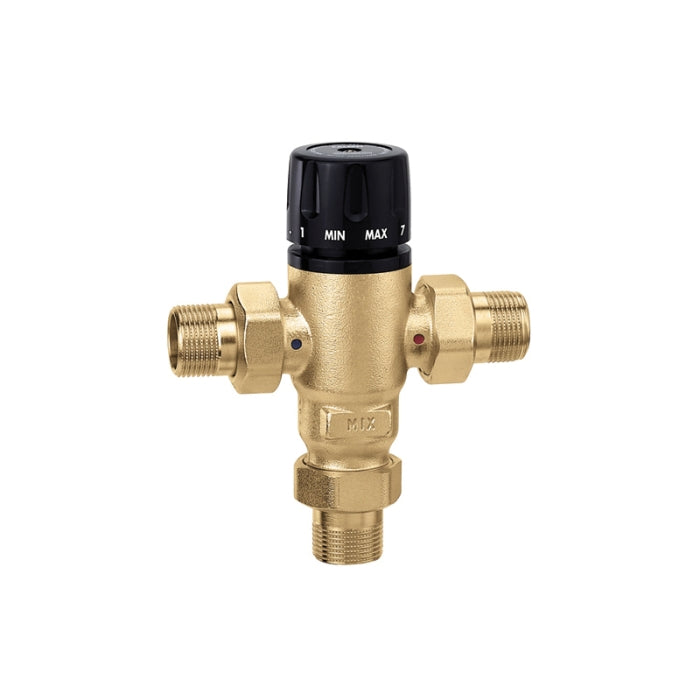

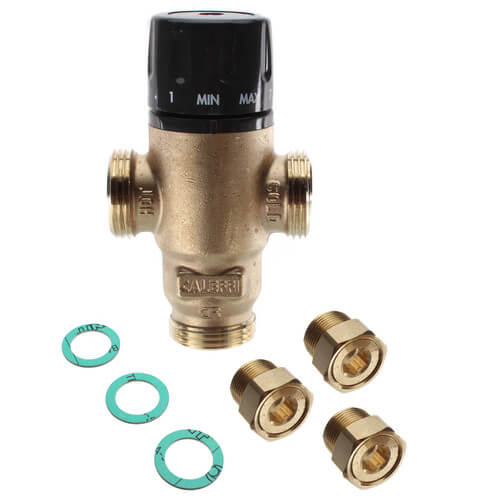

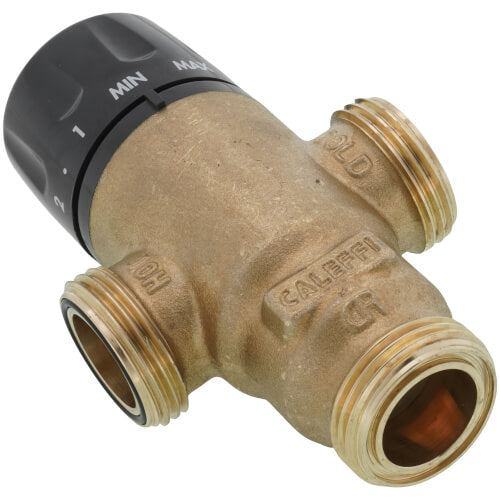

Caleffi 521600A MixCal 3-way Mixing Valve 1 NPT

Product Description

The Caleffi MixCal 3-way mixing valve with MPN 521600A is designed for domestic hot water systems and hydronic heating systems. This valve adjusts the temperature of mixed water, ensuring it remains constant despite changes in pressure or temperature of the incoming water. The valve automatically closes the hot water port when there is a failure of either the cold or hot water supply.

• Adjustable thermostatic and pressure balanced
• Low-lead brass construction
• Max working pressure of 200 psi

Product Highlights

This valve is essential for maintaining safe and consistent water temperatures in heating systems.

Product Information

Standard Information

• Brand: Caleffi North America
• MPN: 521600A
• UPC: 8016615961683

Technical Specifications

• Type: 3-way adjustable
• Nominal Size: 1 in
• Connection Type: MIP
• Flow Capacity: 1 gpm
• Pressure Rating: 200 psi
• Temperature Range: 85 to 150 deg F
• Inlet to Outlet Length: 5-3/4 in
• Softgoods Material: EPDM Seal
• Body Material: Brass
• Trim Material: Stainless Steel
