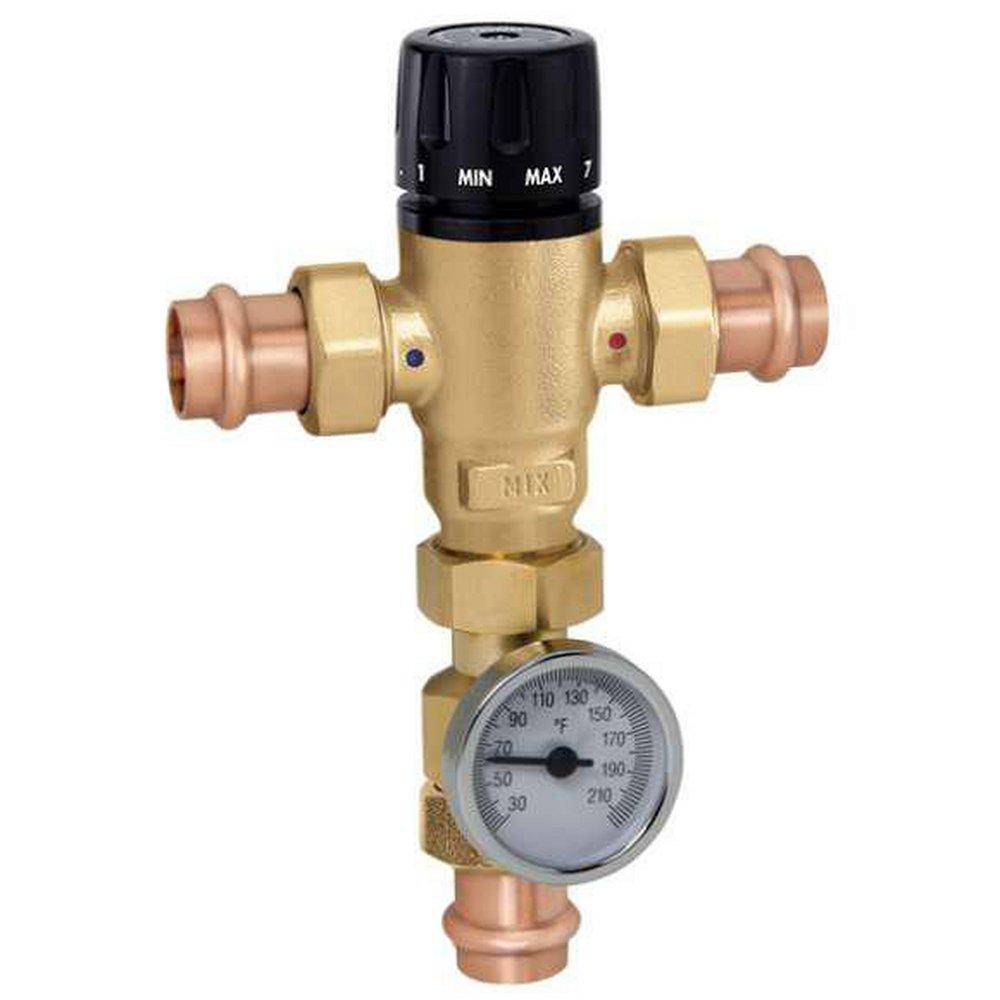

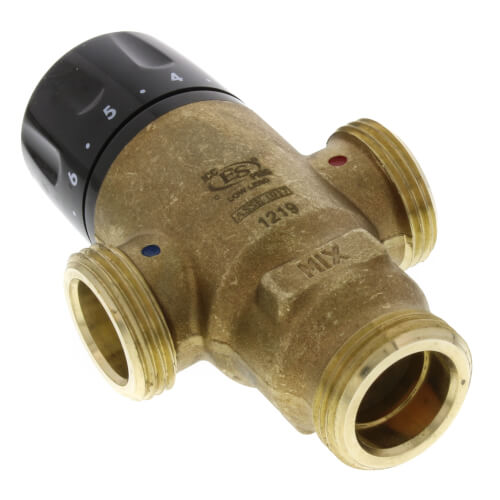

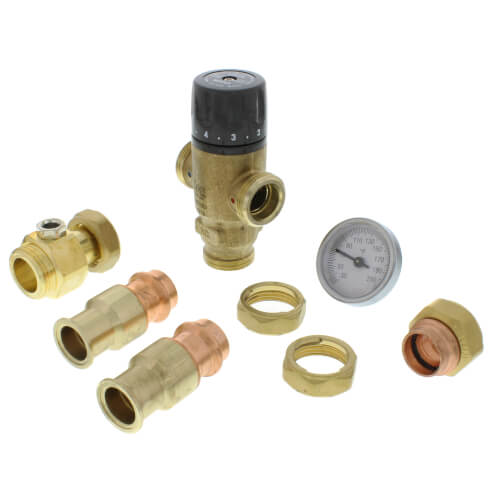

Caleffi 521516AC 3/4 Press Thermostatic Mixing Valve

Product Description

The Caleffi 521516AC thermostatic mixing valve is designed for effective temperature control in various water systems. Ideal for hydronic and radiant heating systems, as well as domestic hot water systems. This mixing valve ensures consistent water temperature by compensating for changes in both temperature and pressure.

• Low-lead brass body
• Temperature range: 85-150 degrees Fahrenheit
• Maximum pressure: 200 PSI

Product Highlights

The Caleffi 521516AC offers precise control for both residential and commercial applications. Equipped with inlet check valves and a gauge, it ensures reliable performance and energy efficiency.

Product Information

Standard Information

• Brand: Caleffi
• Material: Brass

Technical Specifications

• MPN: 521516AC
• Body Pattern: 3-Way
• Flow Capacity (Cv): 3
• Connection Type: Press x Press
• Max Pressure (PSI): 200
• Max Temp (F): 200
• Min Temp (F): 85
• Weight: 3.3 pounds
• Adjustable Range: 85-150 degrees Fahrenheit
• Gauge Scale: 30-210 degrees Fahrenheit
• Gauge Accuracy: ± 6 degrees Fahrenheit
