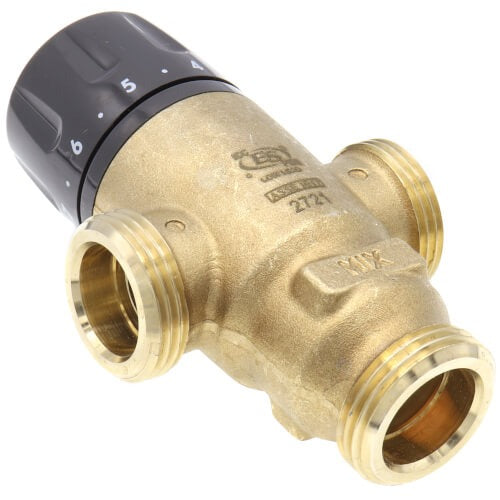

Caleffi 521507A MixCal 3-Way Adjustable Thermostatic Pressure Balanced Mixing Valve 3/4 inches PEX Crimp

Product Description

The Caleffi 521507A MixCal 3-way adjustable thermostatic and pressure-balanced mixing valve provides temperature regulation and pressure balancing for shower, domestic hot water, and hydronic or radiant heating systems. It features 3/4" PEX crimp connections, a low-lead brass body with internal anti-scale materials, and a locking set point knob. Typical performance includes an adjustable output temperature range, a 200 psi maximum working pressure, and a minimum recommended flow of 1.0 gpm.

• Thermostatic and pressure-balanced mixing valve with locking set point knob
• 3/4" PEX crimp connections and low-lead brass body with internal anti-scale materials
• Adjustable output temperature range 85 - 150 F, max working pressure 200 psi, minimum flow 1.0 gpm, Cv 3

Product Highlights

Three-way thermostatic mixing valve for domestic hot water and hydronic systems; 3/4" PEX crimp connections; ASSE 1017 and cUPC certified.

Product Information

Standard Information

• Brand: CALEFFI
• Manufacturer Part Number: 521507A
