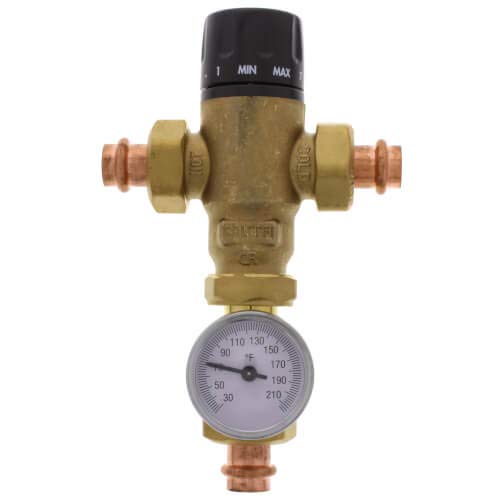

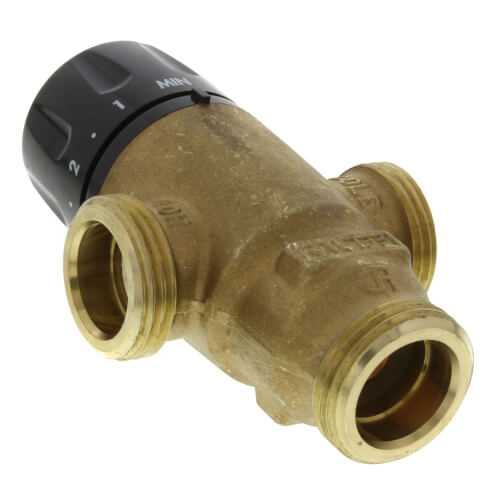

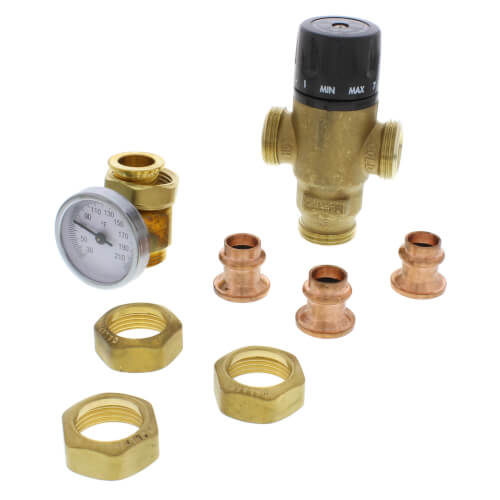

Caleffi 521416A 3-Way Thermostatic Mixing Valve 1/2 Inch Press Connections with Temperature Gauge

Product Description

The Caleffi 521416A 3-Way Thermostatic Mixing Valve is engineered to deliver precise temperature control in domestic hot water, hydronic, and radiant heating systems. This robust valve manages the output temperature of mixed water, compensating for both temperature and pressure variations in the input flows. It's designed for longevity and efficient performance.

• Integrated temperature gauge for real-time monitoring
• Press connection type, making installation swift and tool-free
• Constructed from low-lead brass to ensure water safety and durability

Product Highlights

Offering a flow capacity of 3 Cv, this valve operates optimally within a temperature range of 85 degrees Fahrenheit to 150 degrees Fahrenheit. It adheres to ASSE 1017 standards, ensuring top-tier reliability and safety in point-of-source applications.

Product Information

Technical Specifications

• MPN: 521416A
• Brand: Caleffi
• Connection Size: 1/2 inch
• Max Pressure: 200 PSI
• Material: Brass
• Body Pattern: 3-Way
• Max Temperature: 150 degrees Fahrenheit
• Min Temperature: 85 degrees Fahrenheit
