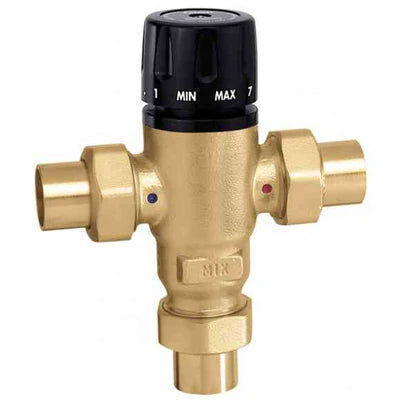

Caleffi 521409AC MixCal 3-Way Thermostatic Mixing Valve 1/2 Sweat w/Check Valves

Product Description

The Caleffi 521409AC MixCal 3-way thermostatic mixing valve is designed for use in systems supplying domestic hot water or in hydronic and radiant heating systems. This valve effectively maintains a consistent output temperature of mixed water. It adjusts for both temperature and pressure changes in the incoming hot and cold water. This ensures stable performance across various conditions.

• 3-way adjustable mixing valve for precise temperature control
• Constructed from durable brass with stainless steel trim
• Built for a maximum pressure rating of 200 psi

Product Highlights

This valve is suitable for point-of-source applications. It features inlet check valves that help maintain temperature integrity and provide reliable service.

Product Information

Standard Information

• Brand: Caleffi
• MPN: 521409AC

Technical Specifications

• Nominal Size: 1/2 in
• Type: 3-Way Adjustable
• Connection Type: Sweat
• Media: Water/Glycol
• Flow Capacity: 1 gpm
• Pressure Rating: 200 psi
• Temperature Rating: 85 to 150 deg F
• Body Material: Brass
• Trim Material: Stainless Steel
• Inlet to Outlet Length: 5-3/4 in
• Top to Inlet Center: 2-9/16 in
