Caleffi 521367A TubMixer 1 PEX CrimpASSE 1070 Anti-Scald

Product Description

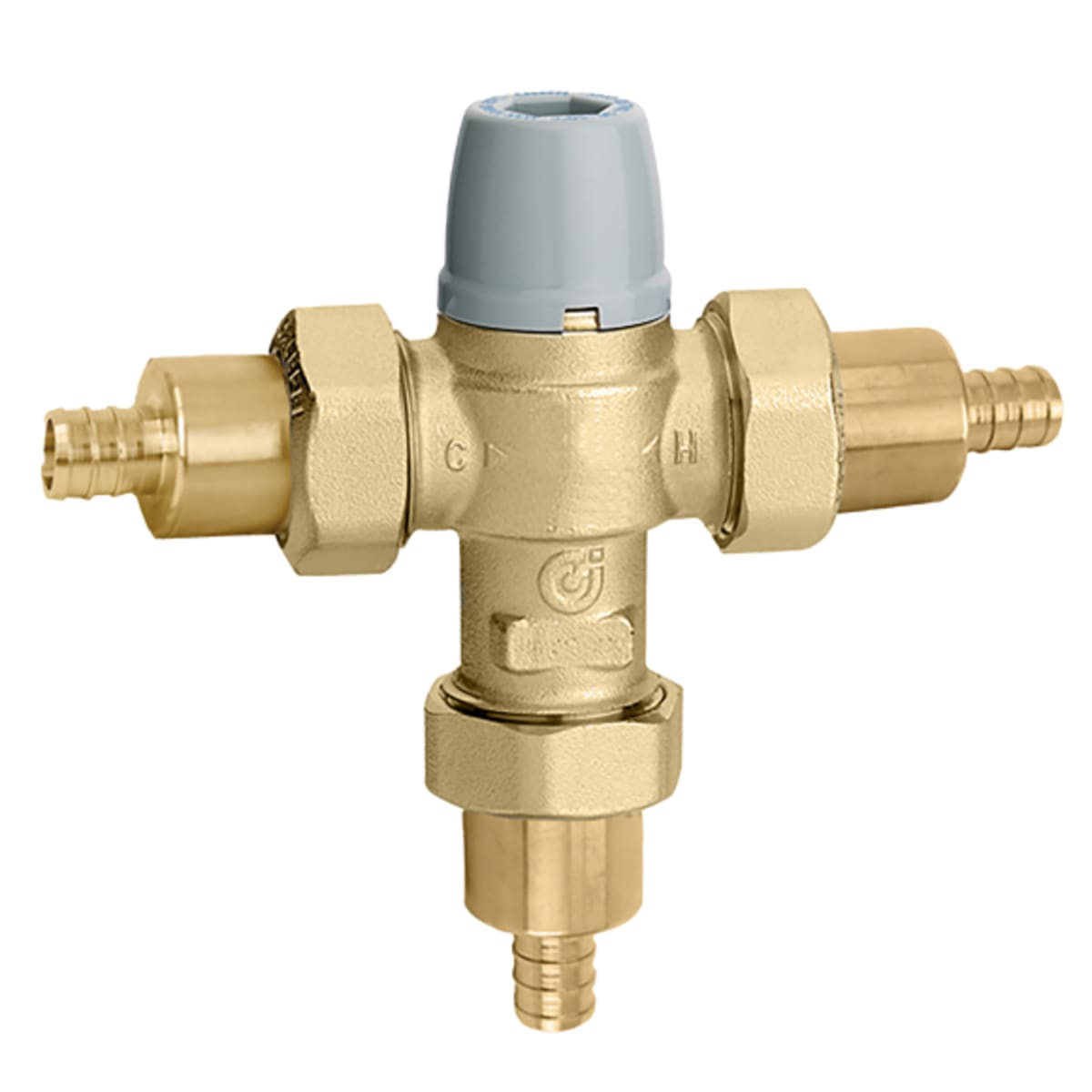

The Caleffi 521367A TubMixer is a 1 PEX crimp thermostatic mixing valve designed for point-of-use applications. Its function is to protect users from scalding hot water. This valve features a locking set point for temperature control and is compliant with ASSE 1070 standards.

• Low-lead brass construction.
• Maximum working pressure: 150 psi.
• Temperature adjustable between eighty-five and one hundred twenty degrees Fahrenheit.

Product Highlights

This mixing valve includes check valves on both the hot and cold inlets. For optimal safety and performance, it is designed to maintain a minimum flow rate of 0.5 gallons per minute.

Product Information

Standard Information

• Brand: Caleffi North America
• MPN: 521367A
• Type: 3-Way
• Connection Type: F1807 (Crimp)
• Lead Free: Yes
• Application: Point of Use

Technical Specifications

• Size: 1 inch
• Max Temperature: 185 degrees Fahrenheit
• Min Flow: 0.5 gallons per minute
• Flow Capacity: 2 CV
• Shipping Dimensions: 6 x 5 x 2.5 inches
• Weight: 0.1 pounds
