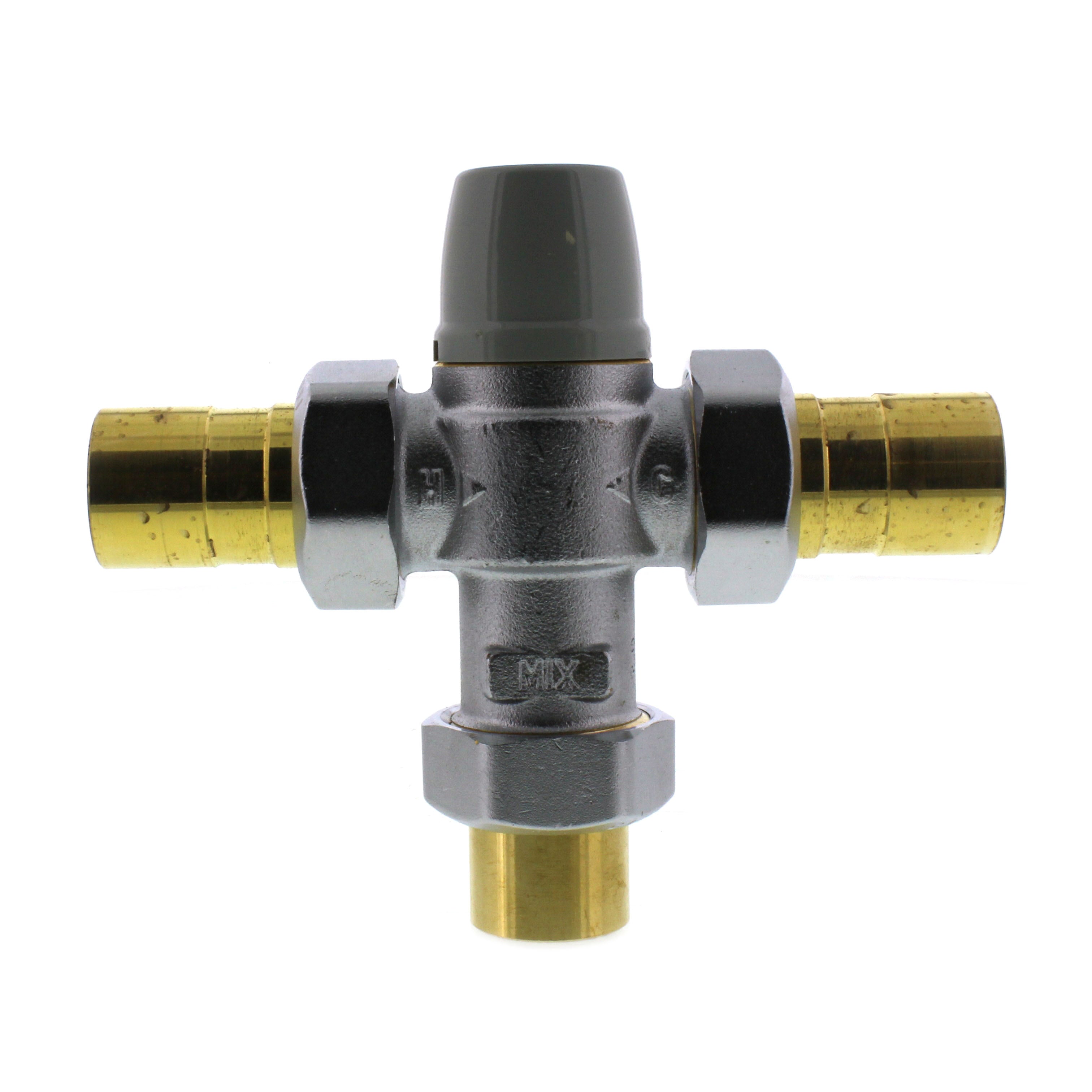

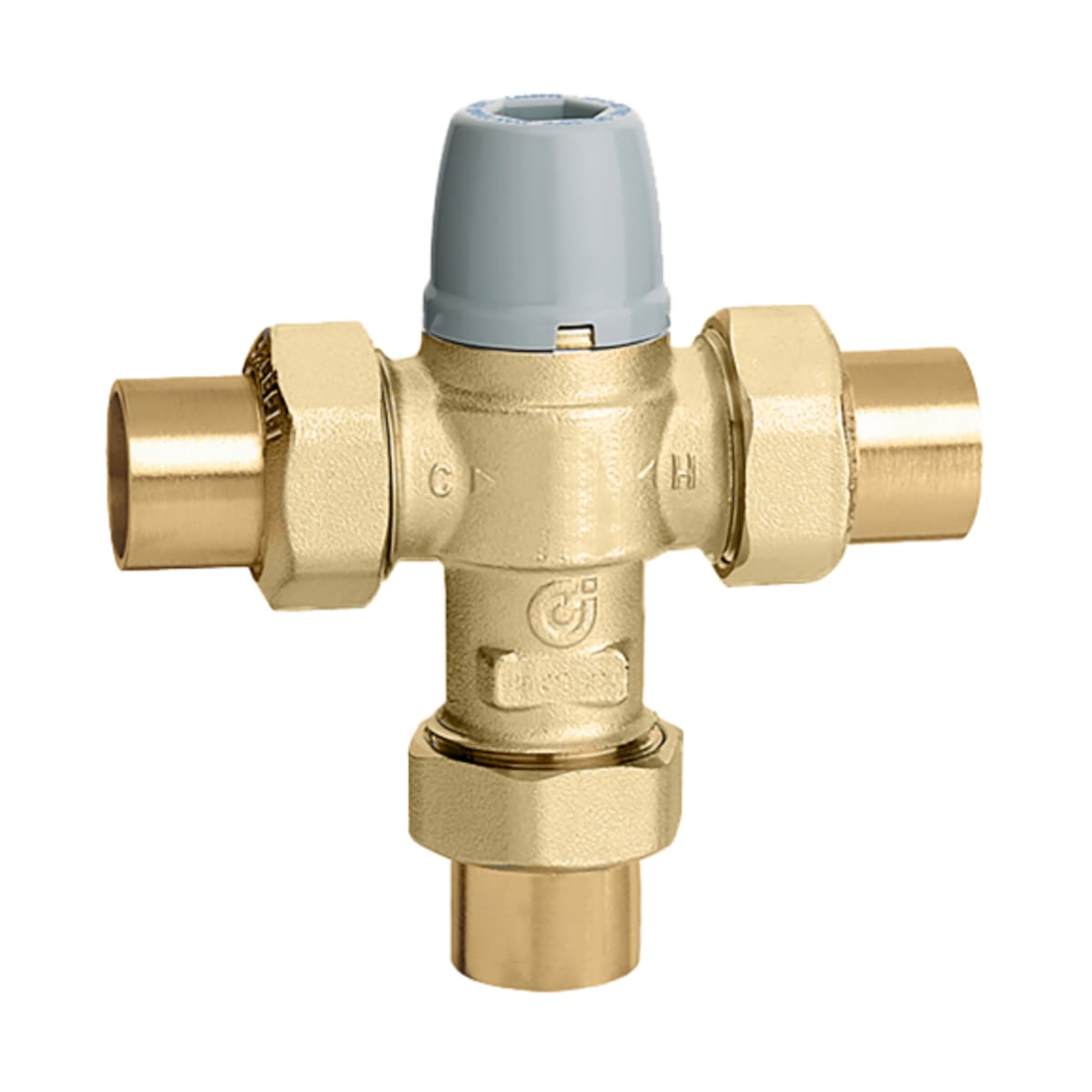

Caleffi 521359A TubMixer 3/4 SweatASSE 1070 Anti-Scald

Product Description

The Caleffi TubMixer 3/4 SweatASSE 1070 Anti-Scald valve is designed to protect users from hot water scalding. This 3-way thermostatic mixing valve ensures safety at point-of-use installations. The valve features a locking set point and is equipped with check valves on both hot and cold inlets.

• Adjustable temperature control from eighty-five to one hundred twenty degrees Fahrenheit
• Low-lead brass body, compliant with the Reduction of Lead in Drinking Water Act
• Rated for a maximum pressure of one hundred fifty psi

Product Highlights

This valve offers consistent temperature maintenance and reliable performance, making it suitable for applications in residential and commercial settings.

Product Information

Standard Information

• Brand: Caleffi North America
• Part Number: 521359A

Technical Specifications

• Nominal Size: 3/4 in
• Type: 3-Way
• Connection Type: Sweat
• Flow Rate: 0.5 gpm
• Body Material: Brass
• Pressure Rating: 150 psi
• Temperature Rating: 85 to 120 deg F
• Dimensions: 4-13/16 in L x 5-3/4 in W
