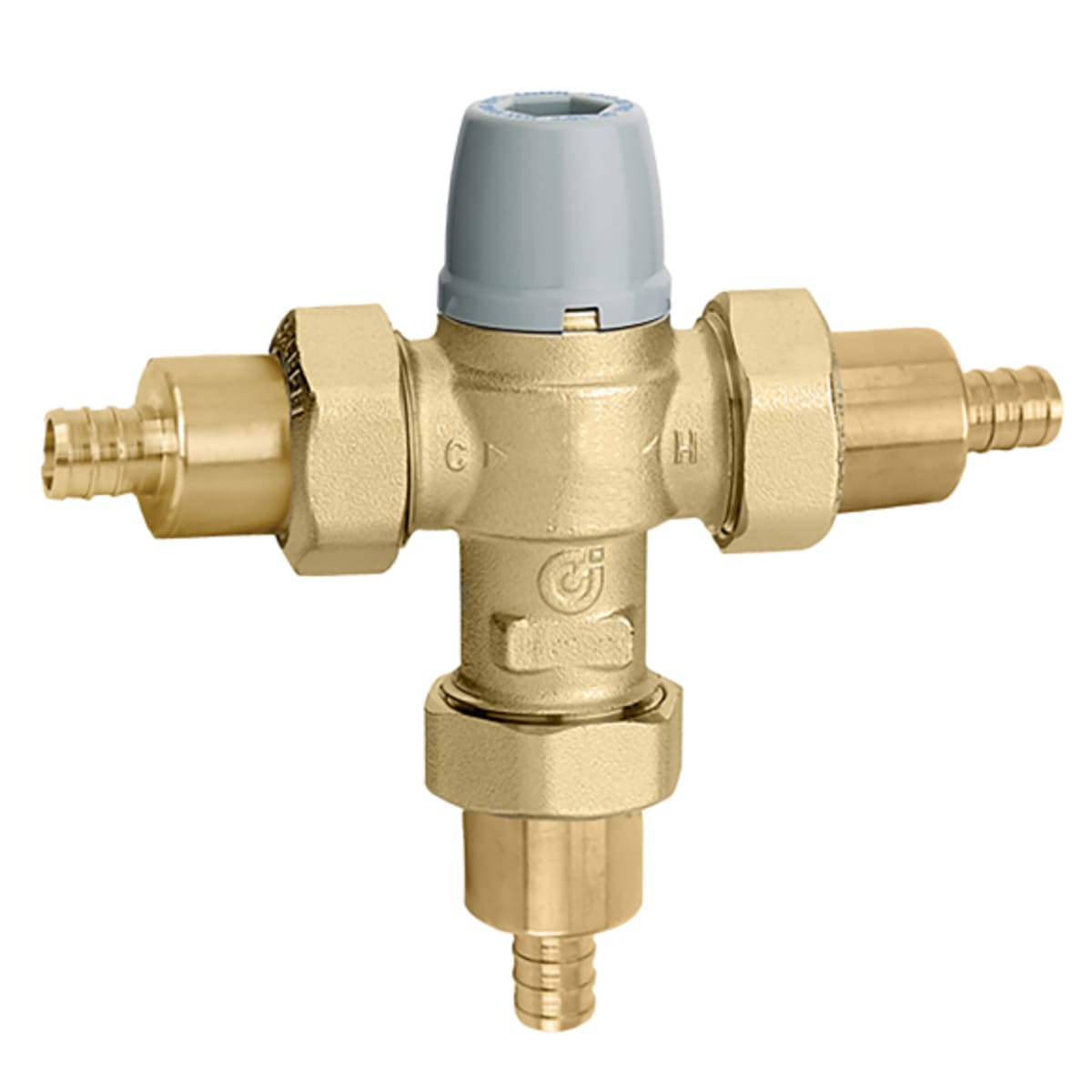

Caleffi 521347A TubMixer™ 1/2 PEX Crimp ASSE 1070 Anti-Scald

Product Description

The Caleffi TubMixer™ with MPN 521347A is a 1/2 inch thermostatic mixing valve designed to prevent scalding from hot water. This valve features a pressure balanced design and is suitable for point of use applications. It includes check valves on both hot and cold inlets, ensuring safe operation.

• Adjustable thermostatic control
• Lead-free brass construction
• Max working pressure of 150 psi

Product Highlights

This mixing valve provides a safe solution for maintaining water temperature in various applications, including showers and baths.

Product Information

Standard Information

• Maximum Inlet Temperature: 185 degrees Fahrenheit
• Adjusted Temperature Range: 85-120 degrees Fahrenheit

Technical Specifications

• Connection Type: PEX Crimp
• Body Pattern: 3-Way
• Min Flow Rate: 0.5 gallons per minute
• Flow Capacity: 2 CV
• Standards Compliance: ASSE 1070, CSA B125.3
• Lead Compliance: Lead-free, compliant with Reduction of Lead in Drinking Water Act
