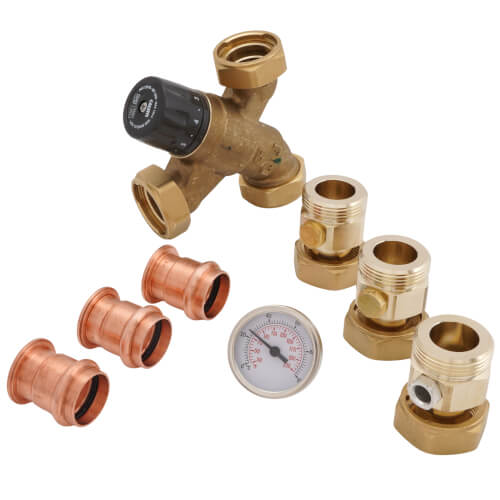

Caleffi 520616AC AngleMix 3-Way Mixing Valve 1 Press Union Check Valves

Product Description

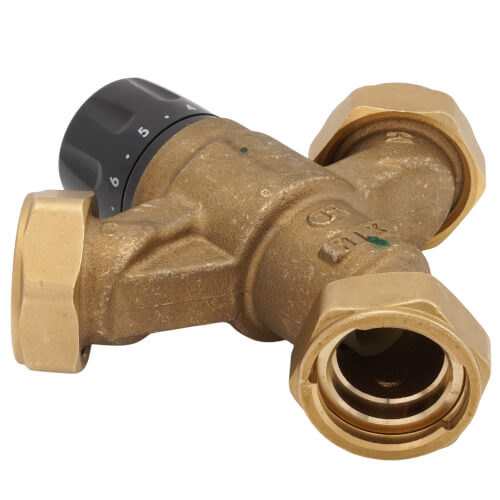

The Caleffi AngleMix 520616AC is a three-way mixing valve designed for domestic hot water systems. This valve connects seamlessly to the top of water heaters, optimizing space and ensuring efficient operation. It stabilizes the temperature of the mixed water, accommodating fluctuations in the hot and cold water supply. The valve also features a thermal shut-off mechanism to prevent cold water supply failures, enhancing safety and reliability.

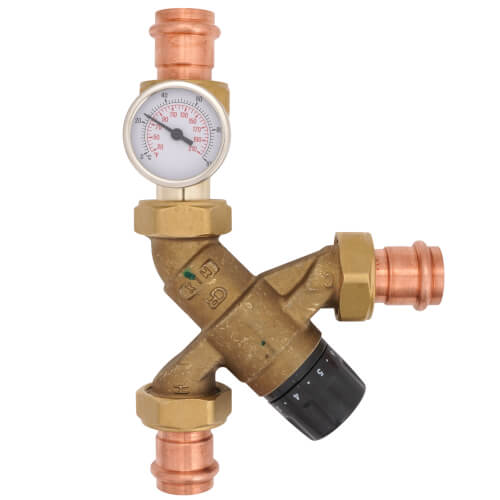

• Includes check valves for better performance.
• Easy installation with press connection.
• Compact design reduces the need for additional piping.

Product Highlights

Reliable and efficient hot water mixing for residential applications.

Product Information

Standard Information

• Brand: Caleffi North America
• Part Number: CALE-520616AC

Technical Specifications

• Size: 1 inch
• Type: 3-Way
• Connection Type: Press
• Max Inlet Temp: 195°F
• Min Flow for Optimum Performance: 0.5 gpm
• Flow Capacity (Cv): 3.5
• Max Working Pressure (Static): 150 psi
• Max Working Pressure (Dynamic): 75 psi
