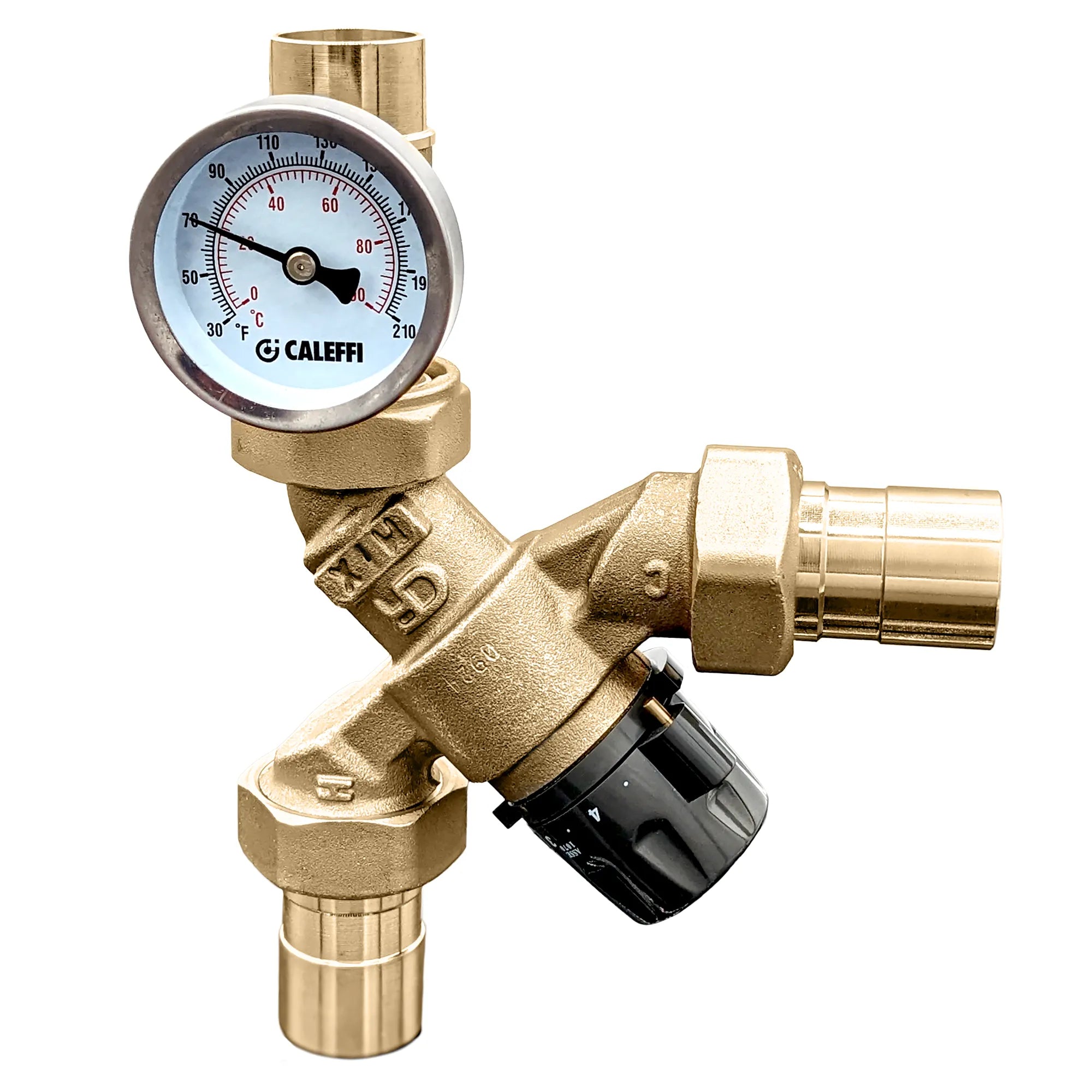

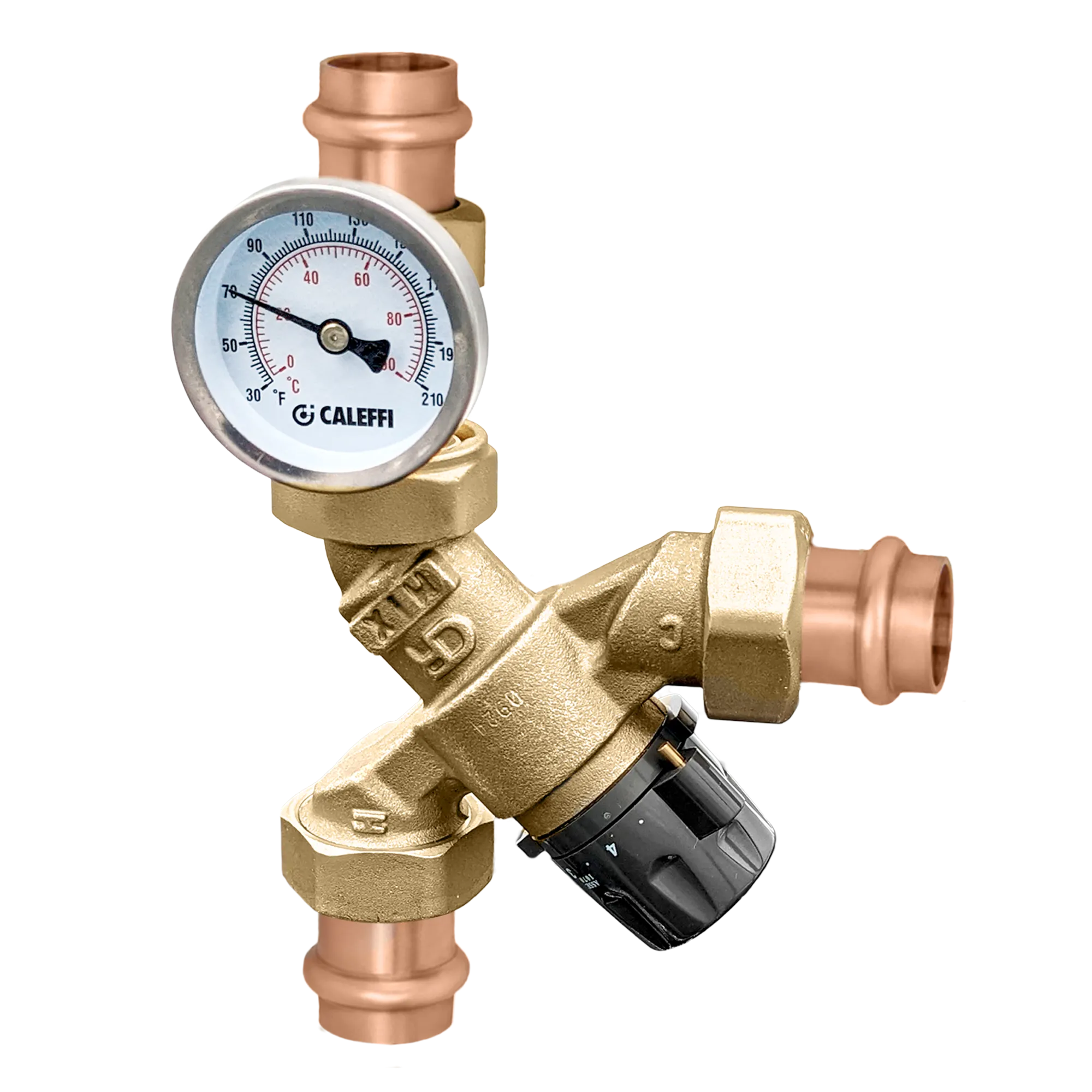

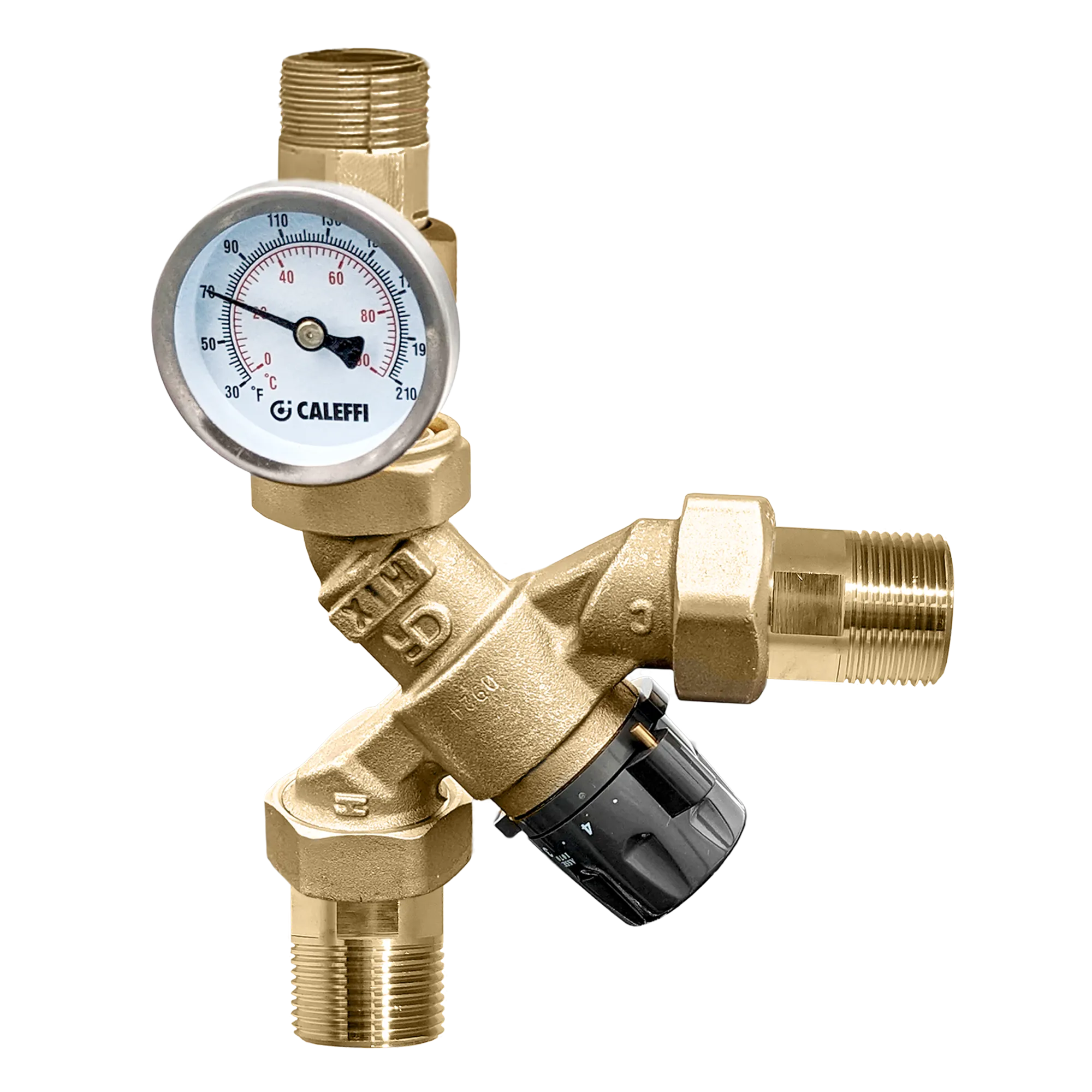

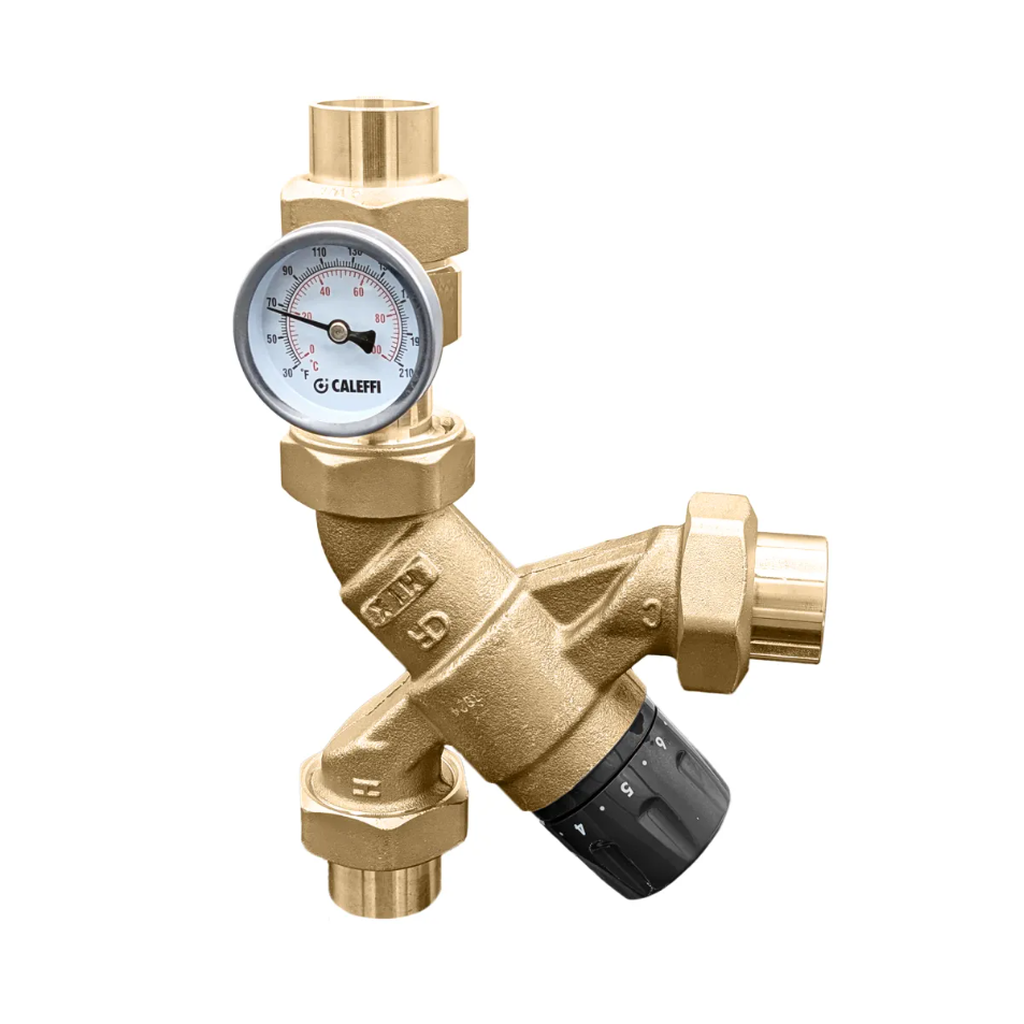

Caleffi 520610AC AngleMix 3-Way Thermostatic Mixing Valve 1 inches NPT

Product Description

The CALEFFI 520610AC AngleMix™ 520 series thermostatic mixing valve is used in systems producing domestic hot water and easily mounts to the top of water heaters. The AngleMix maintains the desired output temperature of the mixed water supplied at a constant set value compensating for temperature and pressure fluctuations. The mixing valve also features a thermal shut-off function that operates in the event of a cold water supply failure at the inlet.

• Adjustment temp range: 95° - 150°F
• Max working pressure (static): 150 psi
• Max working pressure (dynamic): 75 psi

Product Highlights

AngleMix maintains the desired output temperature, compensating for temperature and pressure fluctuations. It also features a thermal shut-off function.

Product Information

Standard Information

• Brand: CALEFFI
• Manufacturer Part Number: 520610AC

Technical Specifications

• Connection Type: MNPT Union x MNPT Union
• Size: 1"
• Connection Method: Press
• Type: Angle
• Flow Capacity (Cv): 3.5
• Material: Brass
• Body Pattern: 3-Way
• Maximum static operating pressure: 150 psi
• Maximum dynamic operating pressure: 75 psi
• Maximum inlet temperature: 195 °F
• Adjustment temperature range: 95 – 150 °F
• Medium: water
• Minimum flow rate: 0.5 gpm
• MPN: 520610AC
• Brand: Caleffi
• Category: Hydraulics & Valves
• UPC: 8016615716283
• Application: Designed for hydronic and plumbing systems where dependable flow control, protection, or regulation is required.
