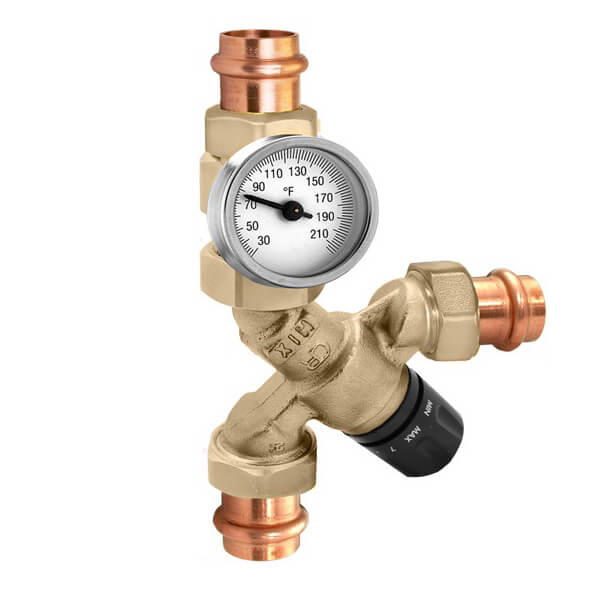

Caleffi 520519A AngleMix 3-Way Mixing Valve 3/4 SWTw/probe

Product Description

The Caleffi AngleMix 520519A is a 3-way thermostatic mixing valve designed for domestic hot water systems. This valve easily mounts to the top of water heaters, ensuring minimal space usage. The design allows for a straightforward connection to the hot water inlet, enhancing installation efficiency. It maintains a consistent mixed water temperature despite fluctuations in supply temperatures and pressures.

• Temperature adjustment range: 95°F to 150°F
• Max working pressure (static): 150 psi
• Thermal shut-off functionality in cold water supply failure

Product Highlights

This mixing valve is perfect for both residential and commercial applications where temperature regulation is critical.

Product Information

Standard Information

• Brand: Caleffi North America
• Part Number: CALE-520519A

Technical Specifications

• Type: 3-Way
• Size: 3/4
• Connection Type: Sweat
• Max Inlet Temperature: 195°F
• Min Flow for Optimum Performance: 0.5 gpm
• Body Pattern: 3-Way
• Flow Capacity (Cv): 2
