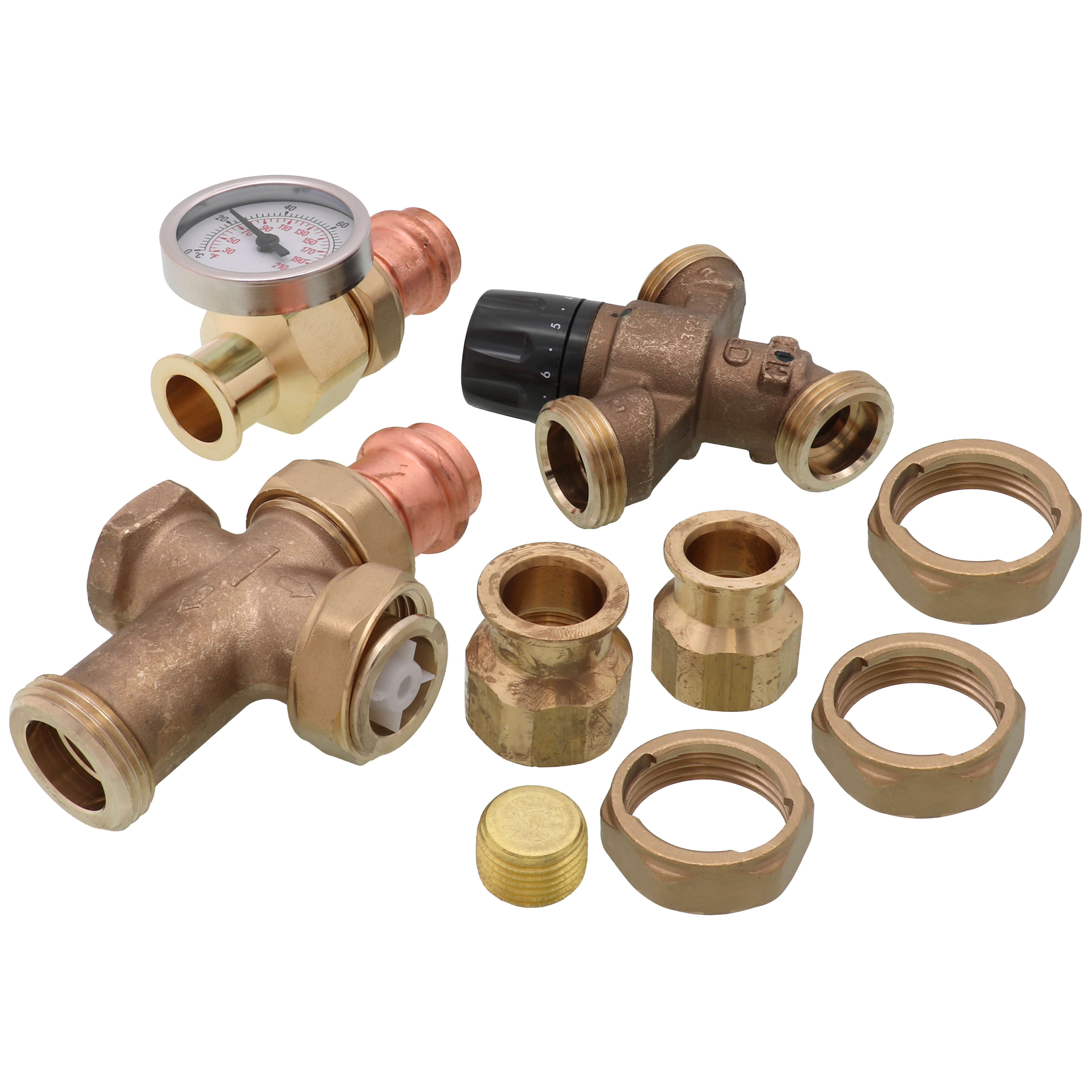

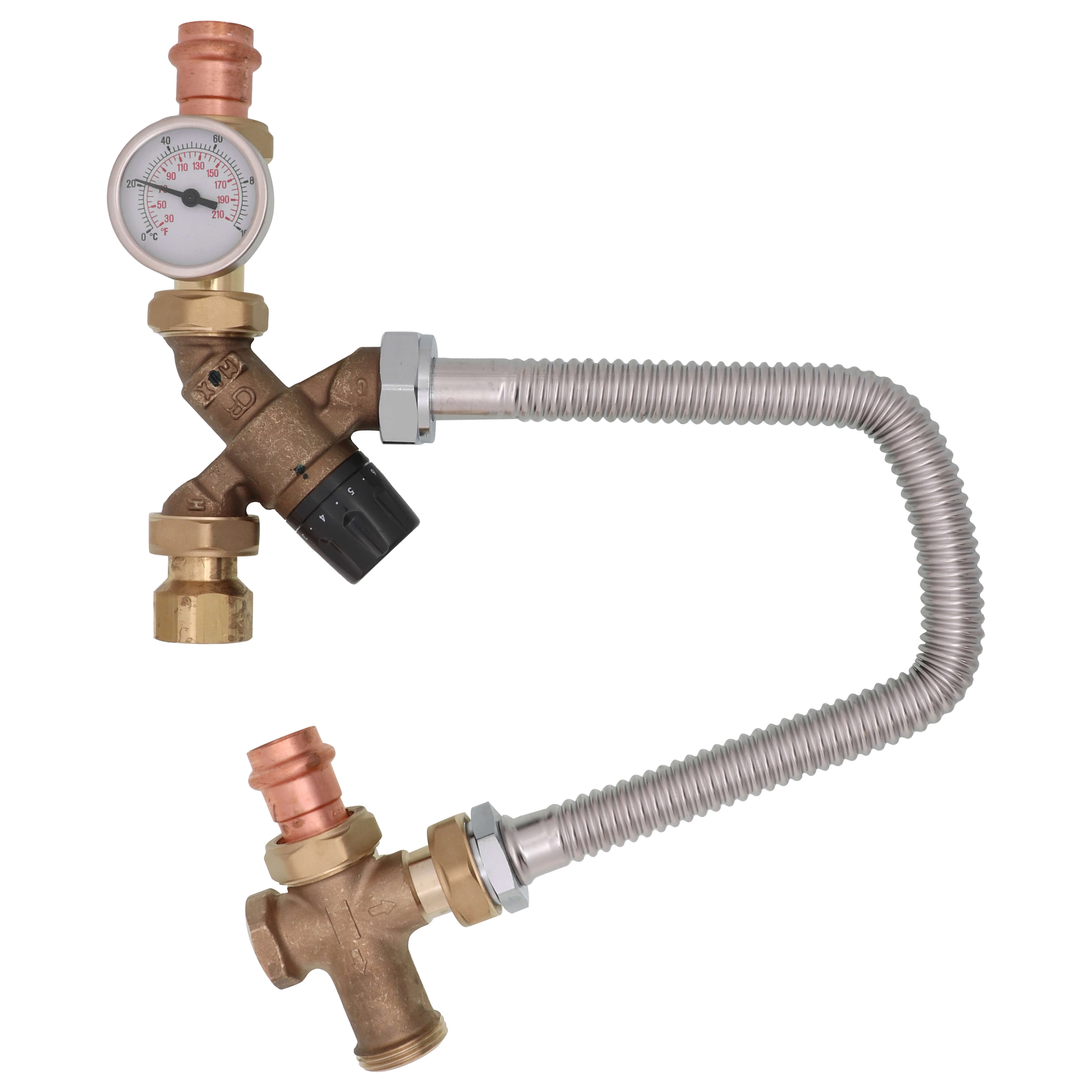

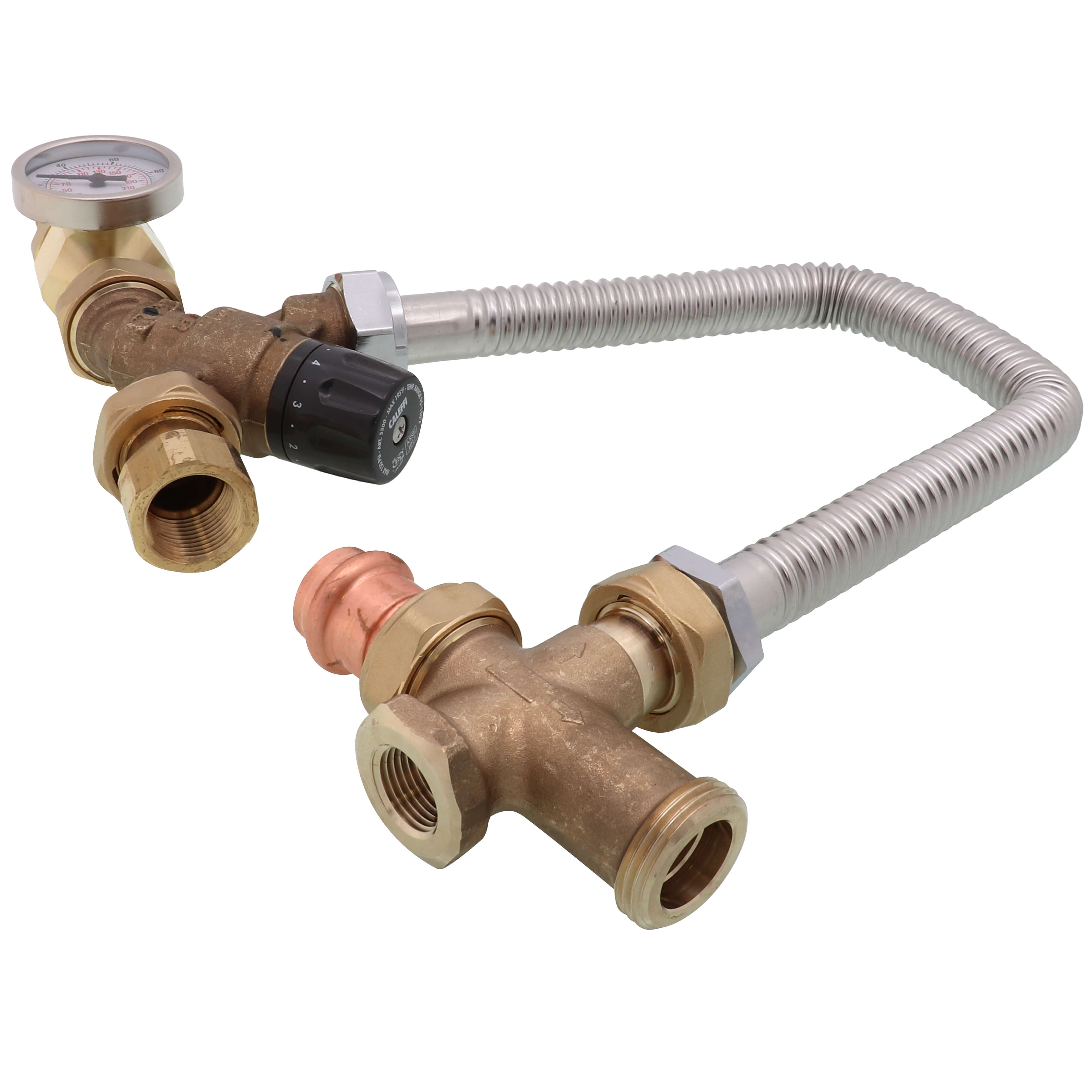

Caleffi 520516AX TankMixer 3-Way Mixing Valve 3/4 FNPT tank 18 flex hose cross 3/4 press system gauge

Product Description

The Caleffi 520516AX is a 3-way mixing valve designed for efficient control of water temperature in various applications. This valve connects with 3/4 FNPT union and features an eighteen-inch flexible hose. It stabilizes water temperature within an adjustable range of ninety-five to one hundred fifty degrees Fahrenheit. The inlet and outlet are both configured for 3/4 press systems, ensuring a secure and reliable connection.

• Inlet: 3/4 FNPT Union
• Outlet: 3/4 Press
• Hose Length: Eighteen inches of flexible hose

Product Highlights

This mixing valve works effectively to manage temperature and flow for water heaters and point of source applications. It is built to handle a maximum working pressure of one hundred fifty psi and a dynamic pressure of seventy-five psi.

Product Information

Standard Information

• Brand: Caleffi North America
• Part Number: 520516AX
• UPC: 8016615576245

Technical Specifications

• Size: 3/4 inches
• Type: 3-Way
• Connection Type: FIP
• Max Inlet Temperature: 195 degrees Fahrenheit
• Min Flow for Optimal Performance: 0.5 gallons per minute
• Gauge Scale: 30 - 210 degrees Fahrenheit
• Gauge Accuracy: +/- 6 degrees Fahrenheit
• Gauge Dial Diameter: 2 inches
