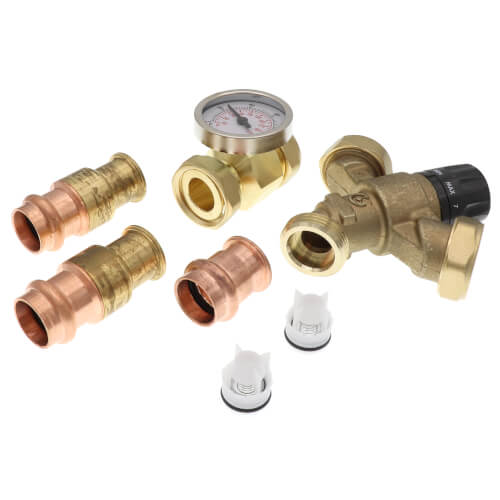

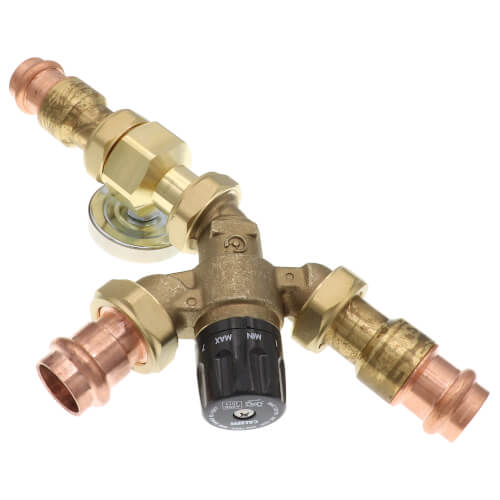

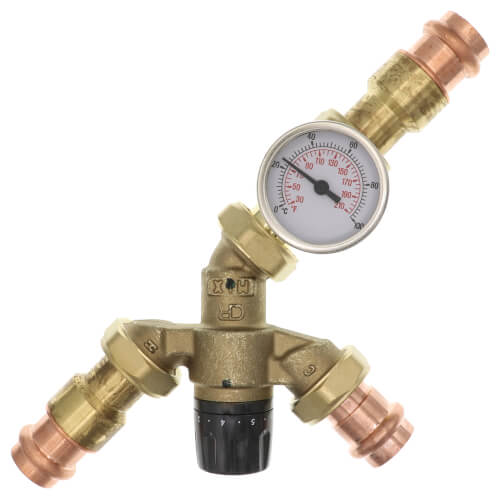

Caleffi 520516AC Anglemix 3-Way Mixing Valve 3/4 Press with Check Gauge

Product Description

The Caleffi Anglemix 520516AC 3-way mixing valve is a durable and efficient solution for precise temperature control in hydronic heating and cooling systems. It features a 3/4 press connection and an integrated check gauge for real-time pressure monitoring. This compact valve simplifies installation and ensures long-lasting reliability.

• 3-way mixing valve for precise temperature control
• 3/4 press connection for easy installation
• Integrated check gauge for real-time monitoring

Product Highlights

The Caleffi Anglemix valve offers accurate temperature control, simple installation, and real-time pressure monitoring, making it ideal for hydronic systems.

Product Information

Standard Information

• Brand: CALEFFI
• MPN: 520516AC

Technical Specifications

• Item Number: 520516AC
• Connection Type: Press Union x Press Union
• Body Pattern: 3-Way
• Material: Brass
• Adjustment Temperature Range: 95°F - 150°F
• Maximum Working Pressure (static): 150 psi
• Maximum Working Pressure (dynamic): 75 psi
• Maximum Inlet Temperature: 195°F
• Gauge Scale: 30°F - 210°F
• Minimum Flow for Optimum Performance: 0.5 gpm
• Flow Capacity (Cv): 2
