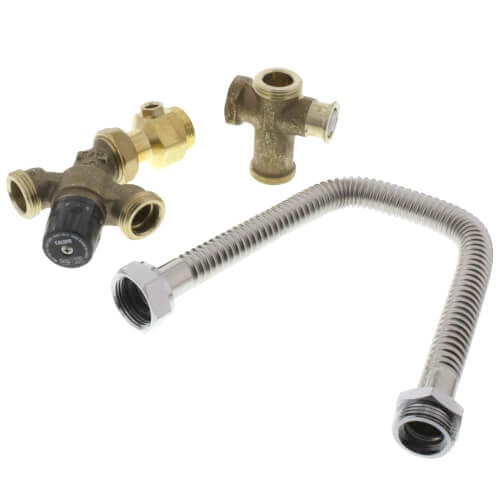

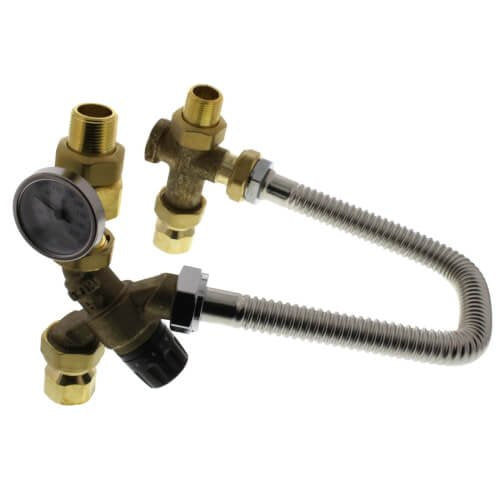

Caleffi 520510AX 3/4 MNPT Outlet Tankmixer Water Heater Mixing Valve w/ Gauge

Product Description

The Caleffi 520510AX is a 3/4 MNPT outlet tankmixer water heater mixing valve with gauge. This mixing valve features a flexible 18-inch hose and an adjustable temperature range from 95 degrees Fahrenheit to 150 degrees Fahrenheit. It ensures consistent water temperature and pressure, making it ideal for point of source applications.

• Application: Point of Source
• Size: 3/4 inch
• Connection Method: Threaded

Product Highlights

This mixing valve includes a gauge and is designed to meet ASSE 1017 standards. It offers reliable control of water temperatures and is made with durable materials to ensure long-lasting performance.

Product Information

Standard Information

• Brand: Caleffi
• MPN: 520510AX

Technical Specifications

• Inlet: 3/4 inch FNPT
• Outlet: 3/4 inch MNPT
• Hose Length: 18 inches
• Adjustment Temperature Range: 95 to 150 degrees Fahrenheit
• Max Working Pressure (Static): 150 psi
• Max Working Pressure (Dynamic): 75 psi
• Max Inlet Temperature: 195 degrees Fahrenheit
• Minimum Flow for Optimum Performance: 0.5 gpm
• Gauge Scale: 30 to 210 degrees Fahrenheit
• Gauge Accuracy: ±6 degrees Fahrenheit
• Gauge Dial: 2 inches diameter
• Flow Capacity (Cv): 3
• Standards Met: ASSE 1017
• Includes: Gauge
