Product Description

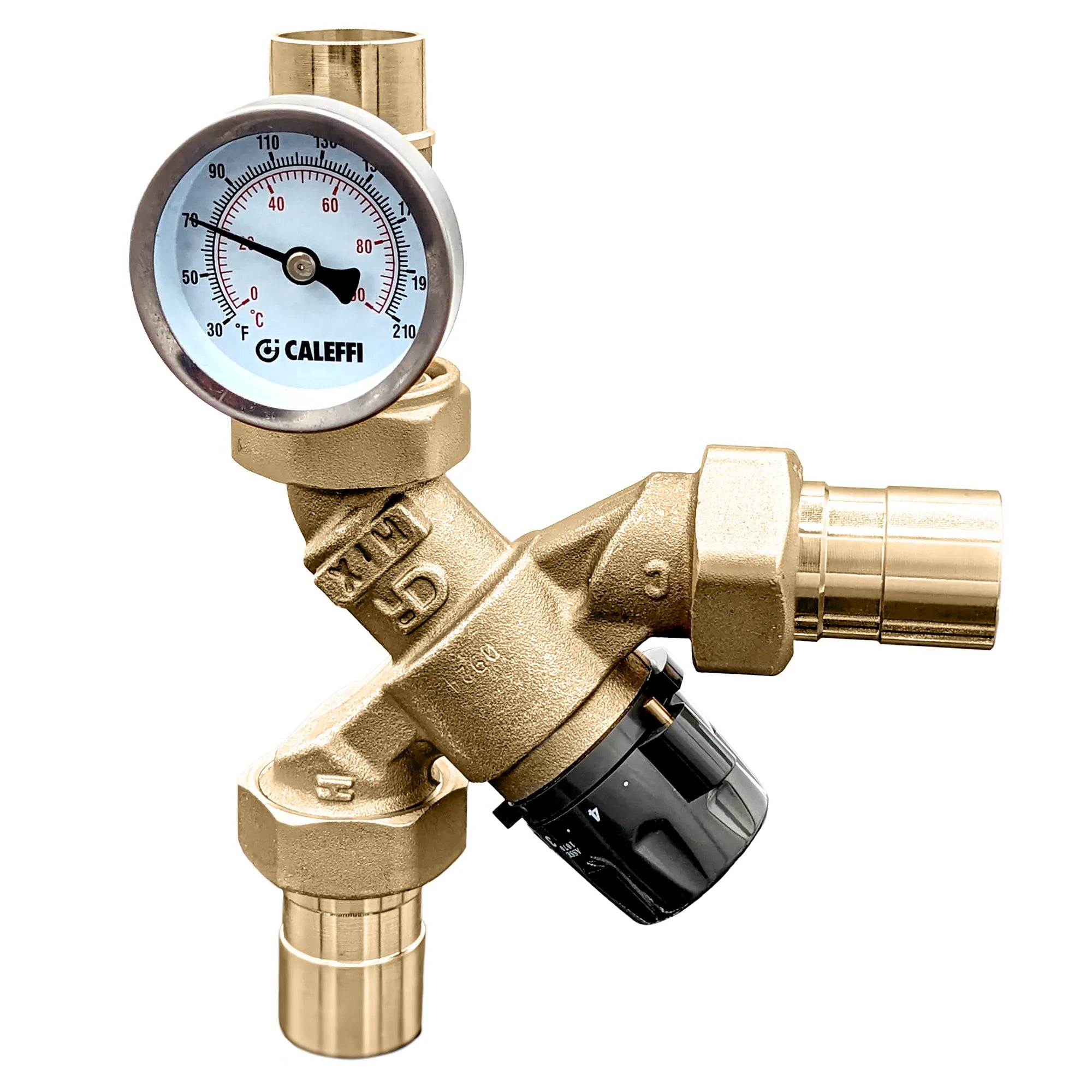

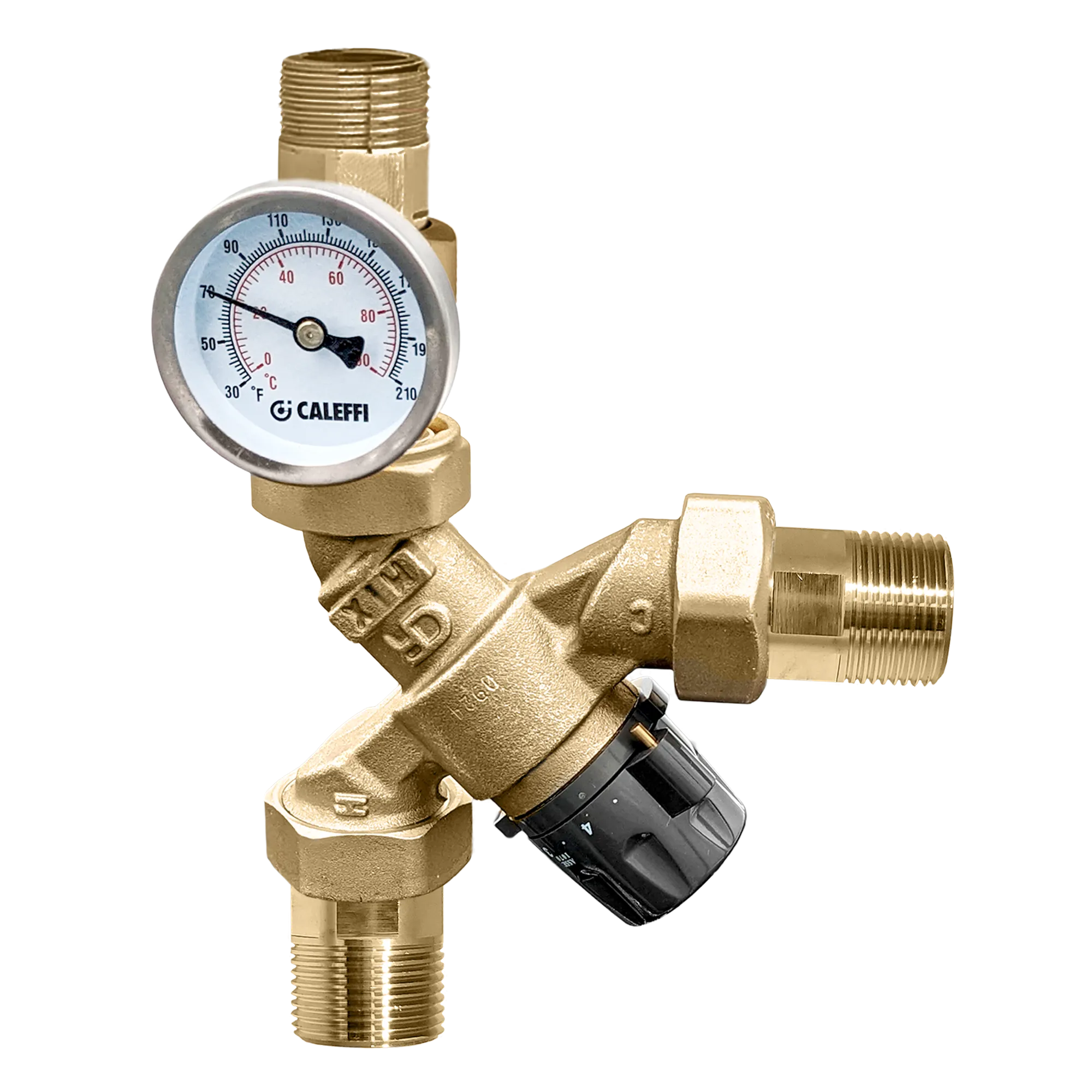

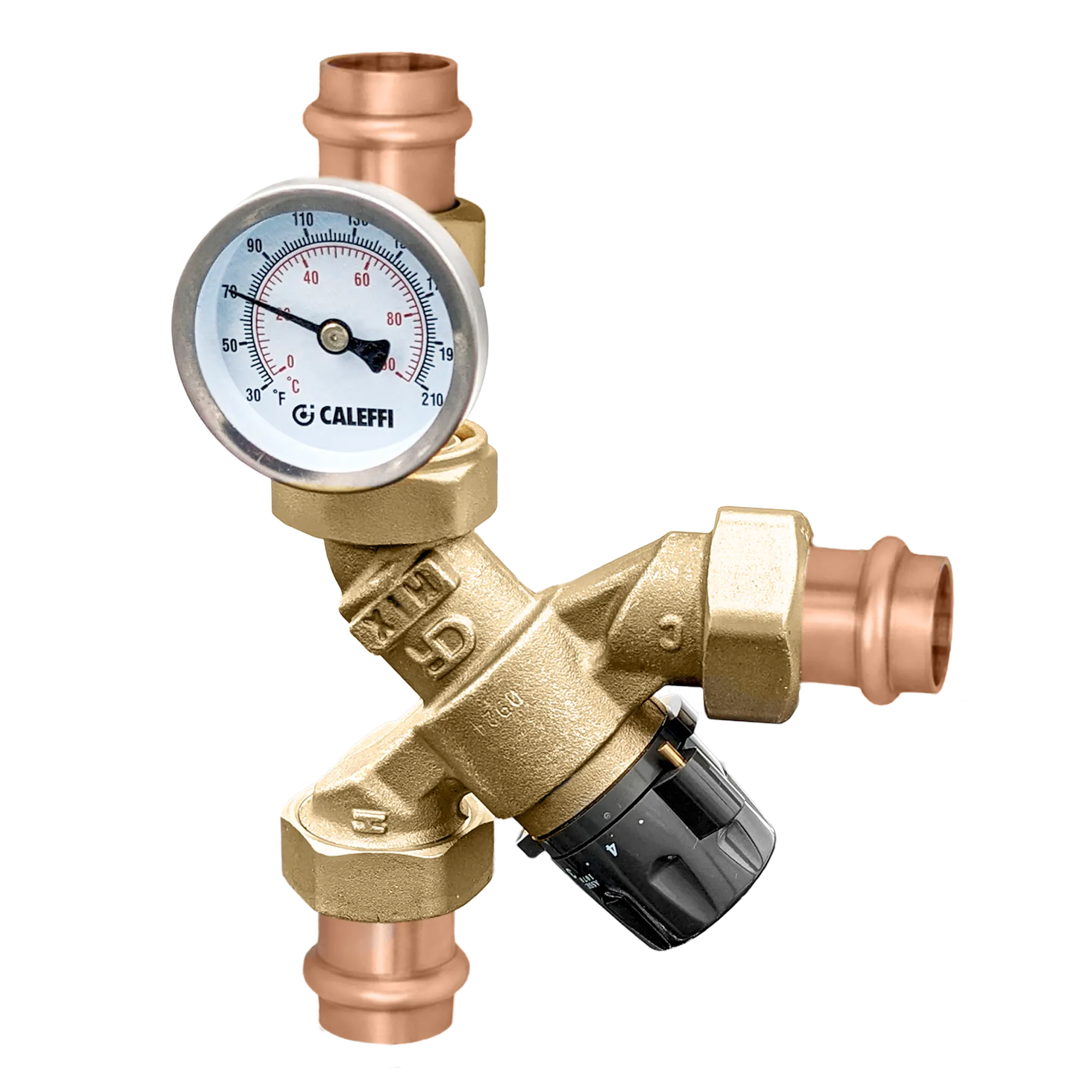

The CALEFFI 520510AC AngleMix™ DL is a dual listed angled thermostatic mixing valve compliant with ASSE 1070 and ASSE 1017. It features inlet check valves and a mixed outlet temperature gauge. The factory-set mixed outlet temperature is limited to 120 °F. It is made of DZR low lead brass.
- Dual listed angled thermostatic mixing valve
- Compliant with ASSE 1070 and ASSE 1017
- Complete with inlet check valves
- Factory set mixed outlet temperature limited to 120 °F
- Complete with mixed outlet temperature gauge
Product Highlights
The CALEFFI AngleMix DL thermostatic mixing valve ensures safe and consistent water temperatures, preventing scalding and optimizing water usage.
Product Information
Standard Information
-
Brand: CALEFFI
-
Manufacturer Part Number: 520510AC
-
Country of Origin: IT
Technical Specifications
-
Medium: water
-
Minimum flow rate: 0.5 gpm
-
Maximum static operating pressure: 150 psi
-
Maximum dynamic operating pressure: 75 psi
-
Maximum inlet temperature: 195 degree F
-
Adjustment temperature range: 95 – 150 degree F
-
Connection: 3/4" NPT male, union
-
Cv: 2.0
-
Brand: Caleffi
-
MFR Part No: 520510AC
-
TSCO Part Number: 1261219
-
Height: 2.5 in
-
Material: DZR low lead brass
-
Series: AngleMix™
-
Temperature Rating: 30–210 °F
-
Width: 5 in
-
Product Type: Item
-
Adjustable Range: 95-150 degree F
-
Flow Coefficient Cv: 2
-
Flow For Optimum Performance: 0.5 gpm
-
Gauge Included: Yes
-
Gauge Scale: 30-210 degree F
-
Includes: Temperature Gauge
-
Maximum Body Pressure Rating Static: 150 PSI
-
Nominal Size: 3/4 in
-
End Style: Union MNPT
-
Finish: Rough Brass
-
Manufacturer: Caleffi
-
Manufacturer Part Number: 520510AC
