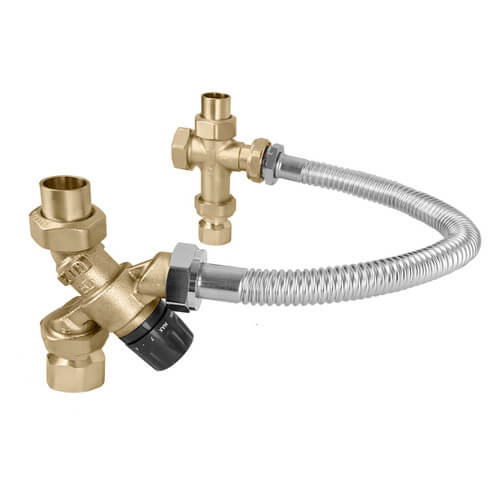

Caleffi 520509AX TankMixer 3-Way Mixing Valve 3/4 FNPT tank

Product Description

The Caleffi 520509AX is a 3-way mixing valve designed for water heater applications. It features a three-quarter inch FNPT inlet and a three-quarter inch sweat outlet. The valve comes with an eighteen-inch flexible hose. This mixing valve is suitable for maintaining temperature control in water heating systems.

• Inlet size: 3/4 FNPT Union
• Outlet size: 3/4 Sweat
• Flexible hose length: 18 inches

Product Highlights

This valve allows for precise temperature adjustments ranging from ninety-five to one hundred fifty degrees Fahrenheit.

Product Information

Standard Information

• Brand: Caleffi North America
• Part Number: CALE-520509AX

Technical Specifications

• Type: 3-Way
• Max Inlet Temperature: 195 degrees Fahrenheit
• Max Working Pressure (Static): 150 psi
• Max Working Pressure (Dynamic): 75 psi
• Flow Capacity: 3 Cv
• Application: Point of Source
• Connection Type: MIP
• Replacement Parts: 520051A
