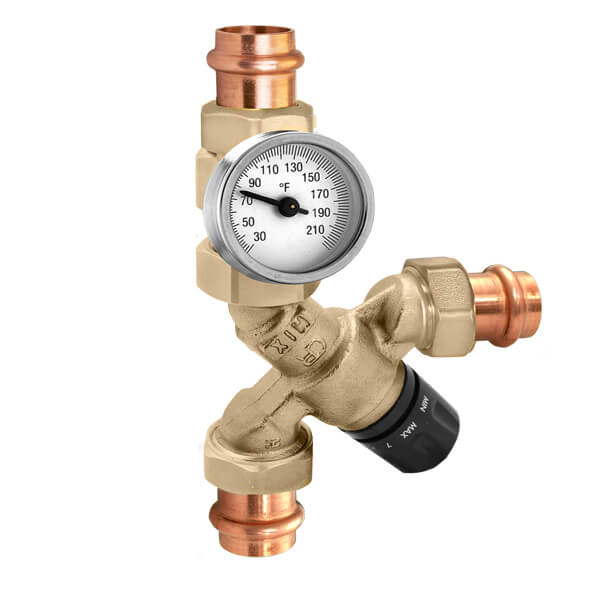

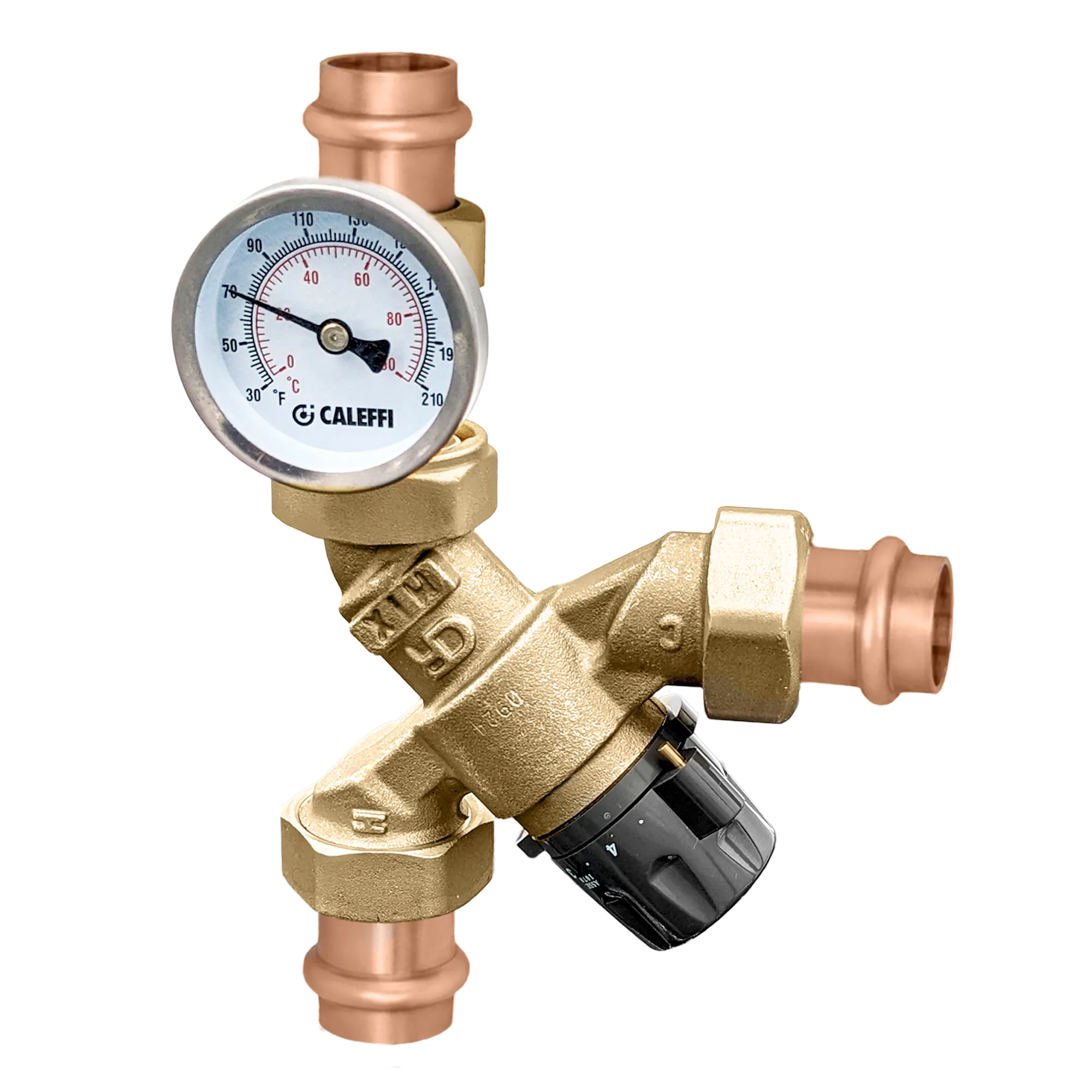

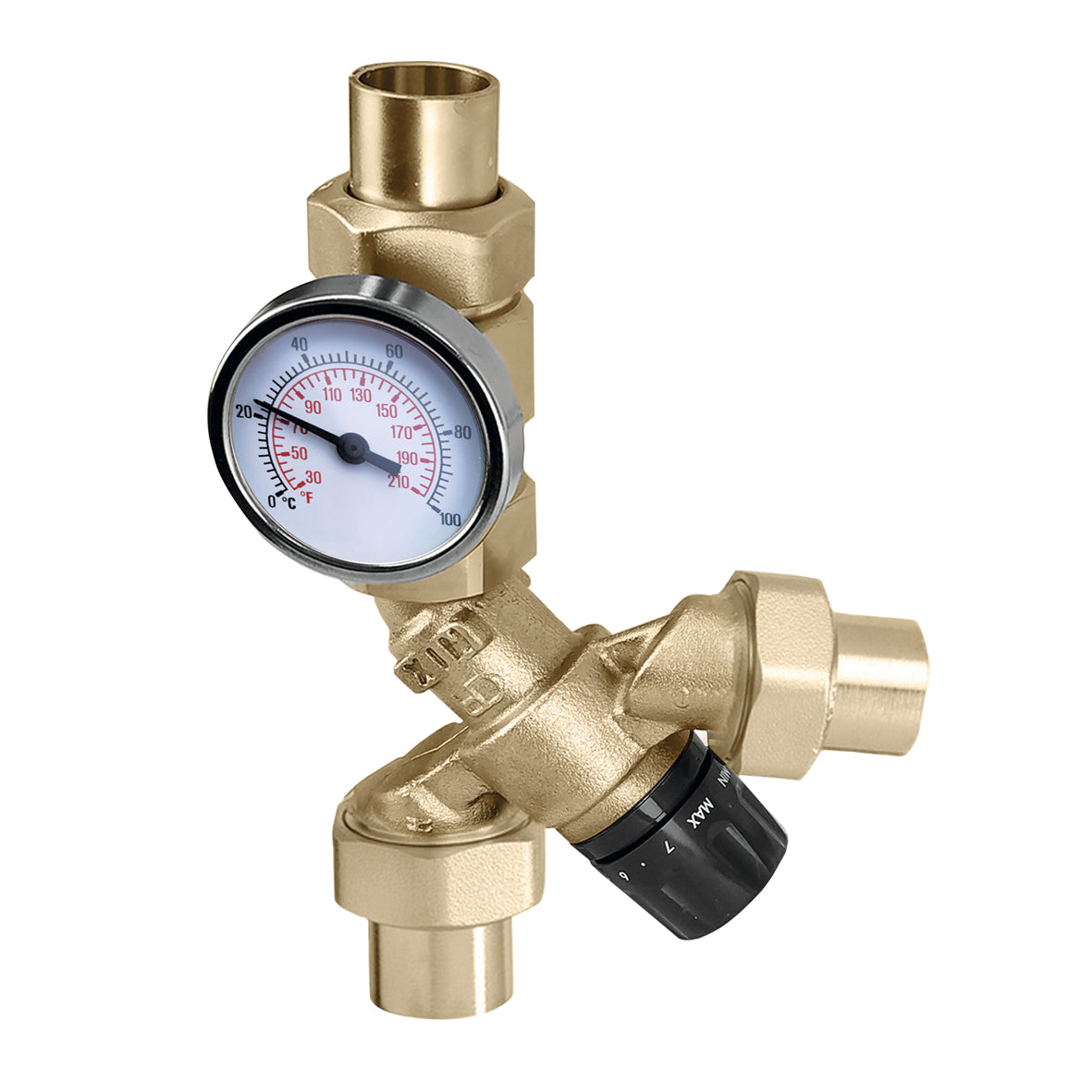

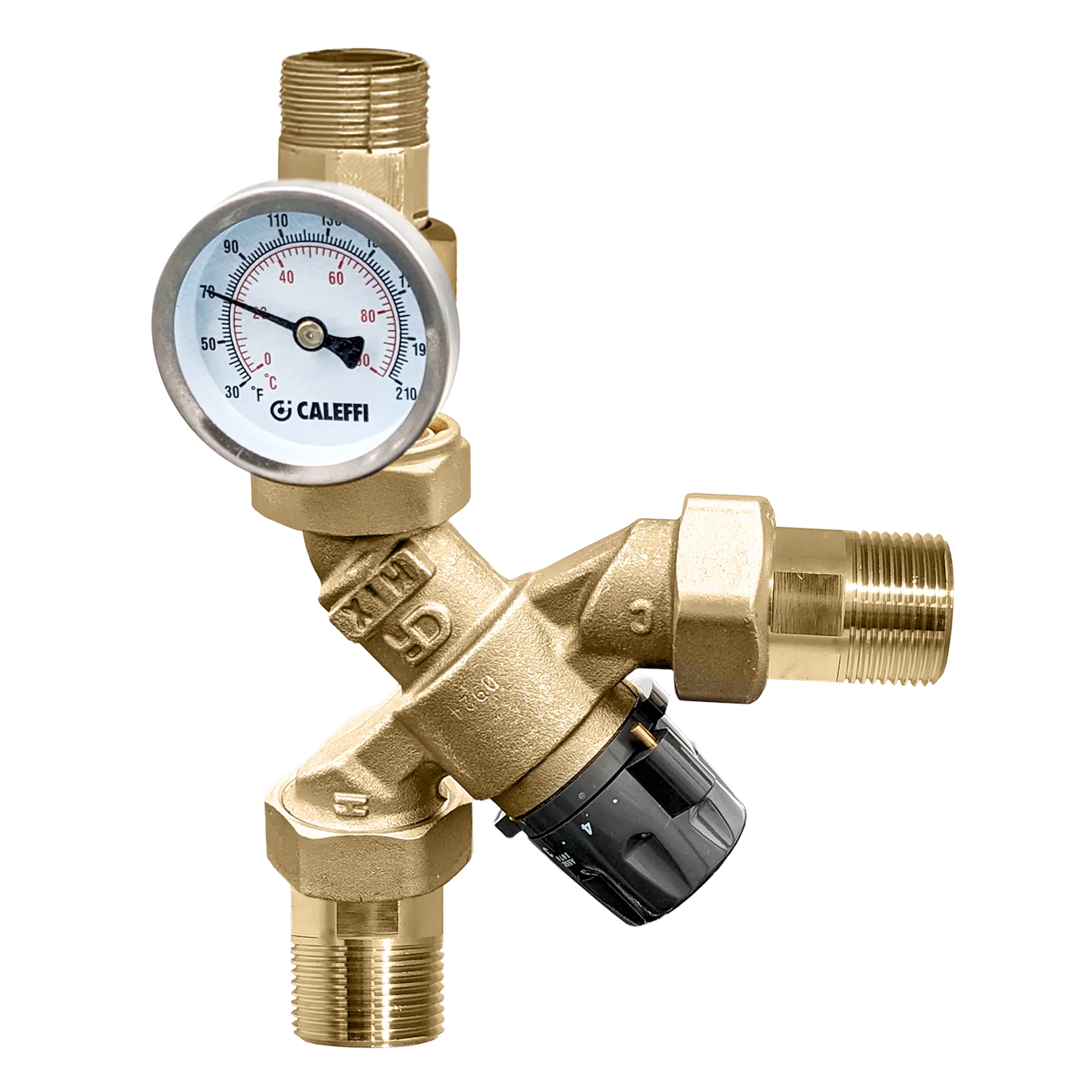

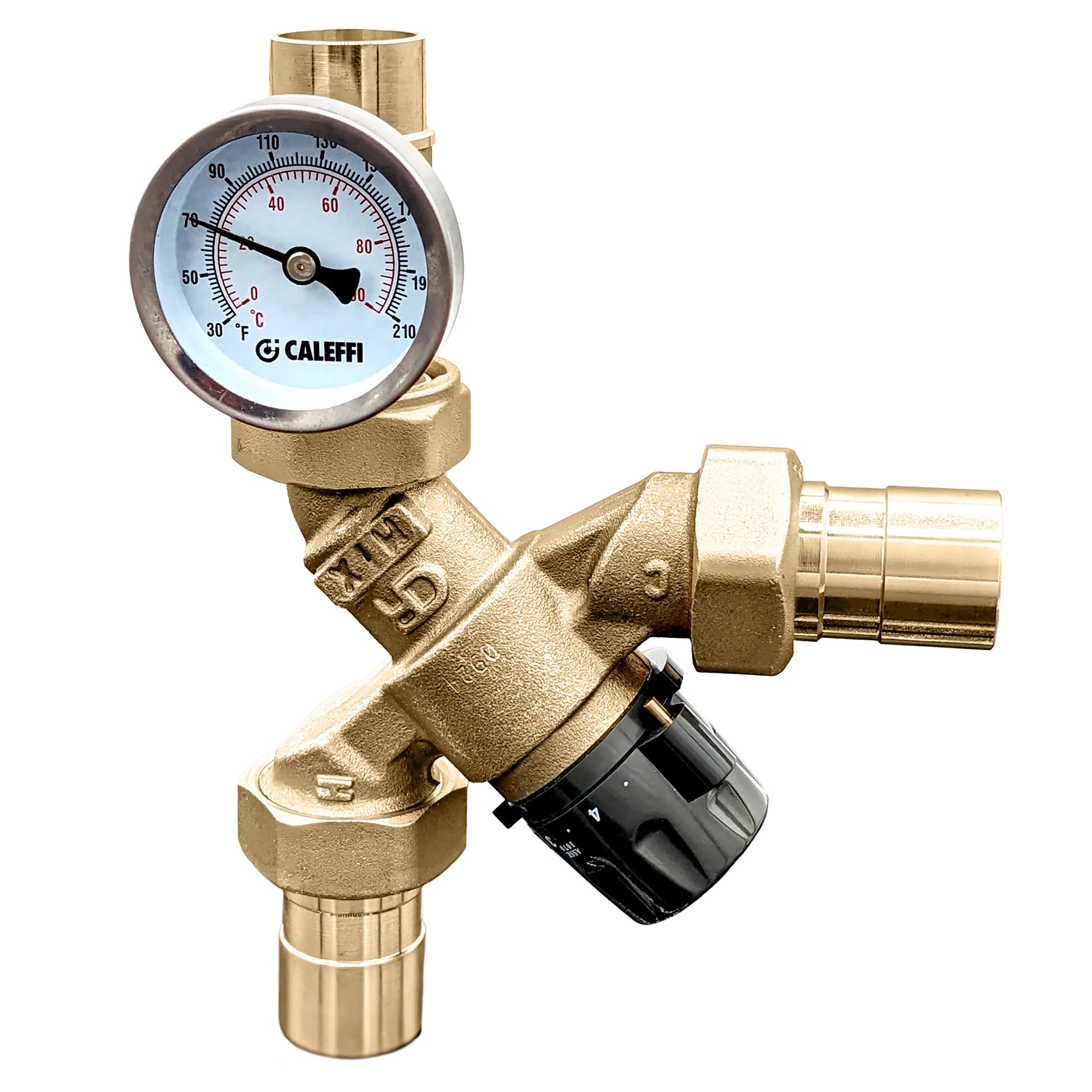

Caleffi 520410AC AngleMix 3-Way Thermostatic Mixing Valve 1/2 inches NPT Gauge

Product Description

The CALEFFI 520410AC AngleMix™ 520 series thermostatic mixing valve is used in systems producing domestic hot water and easily mounts to the top of water heaters. It maintains the desired output temperature, compensating for temperature and pressure fluctuations. The mixing valve also features a thermal shut-off function in the event of cold water supply failure.

• AngleMix™ 520 series
• Thermostatic mixing valve
• Thermal shut-off function

Product Highlights

The AngleMix valve maintains a constant set value, compensating for temperature and pressure fluctuations. Its angle style body design improves fluid dynamics and reduces installation labor.

Product Information

Standard Information

• Brand: CALEFFI
• Manufacturer Part Number: 520410AC

Technical Specifications

• Size: 1/2"
• Type: Angle
• Includes: Gauge
• Material: Brass
• Body Pattern: 3-Way
• Connection Type: MNPT x MNPT
• Connection Method: Threaded
• Flow Capacity (Cv): 2
• Maximum Static Operating Pressure: 150 psi
• Maximum Dynamic Operating Pressure: 75 psi
• Maximum Inlet Temperature: 195 °F
• Adjustment Temperature Range: 95 – 150 °F
• Medium: water
• Minimum Flow Rate: 0.5 gpm
