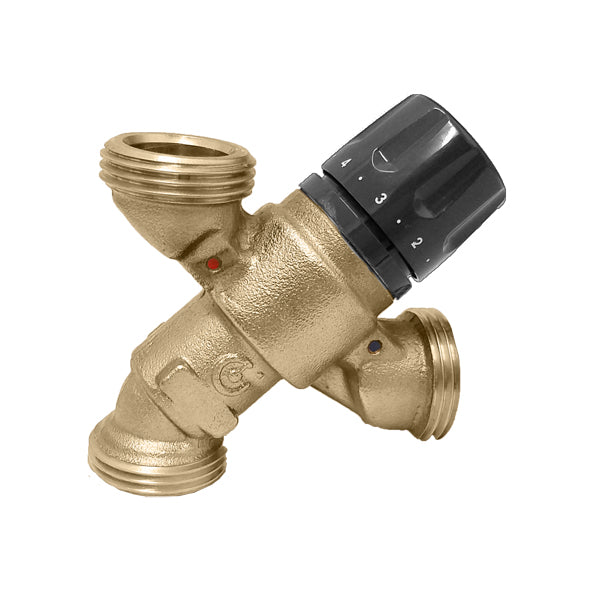

Caleffi 520051A 1 Male Union TankMixer Mixing Valve Body

Product Description

The Caleffi AngleMix 520051A is a 3-way mixing valve designed for efficient temperature control in heating systems. It features a low lead construction, ensuring compliance with health and safety standards. This valve is ideal for applications where precise temperature adjustments are required, providing a reliable solution for heating professionals.

• Adjustable temperature range from ninety-five to one hundred fifty degrees Fahrenheit.
• Max static working pressure of one hundred fifty psi.
• Compatible with various Caleffi mixing systems.

Product Highlights

This mixing valve is built for optimal performance in point-of-source applications, ensuring efficient flow rates and temperature control.

Product Information

Standard Information

• Brand: Caleffi North America
• Type: 3-Way

Technical Specifications

• MPN: 520051A
• Max Inlet Temperature: one hundred ninety-five degrees Fahrenheit
• Min Flow for Optimum Performance: zero point five gallons per minute
• Connection Type: MNPT x MNPT
• Weight: two point nine pounds
• Shipping Dimensions: 4 inches (depth) x 4 inches (width) x 2 inches (height)
• Standards Met: ASSE 1017
• Compatible Models: 520500AX, 520506AX, 520509AX, 520510AX, 520516AX, 520519AX
