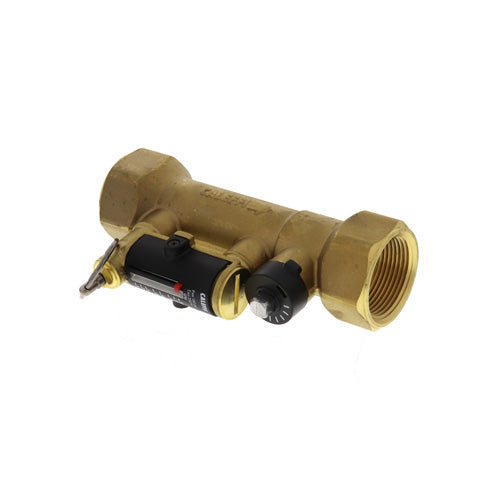

Caleffi 132772A QuickSetter Balancing Valve 1-1/4 Inch FNPT Flow Rate 5-19 GPM Brass

Product Description

The Caleffi 132772A QuickSetter Balancing Valve offers precise control over the flow rate of heating and cooling fluids in hydronic systems. This product, ideal for fan coils, terminal units, and solar thermal systems, promotes optimal system functioning by ensuring balanced flow rates.

• Integrated flow meter for direct reading of flow rates.
• Designed for easy installation and maintenance.
• Durable brass body with chrome-plated brass trim.

Product Highlights

The Caleffi 132772A allows for swift adjustments without the need for differential pressure gauges, simplifying the balancing process. It features a bypass circuit for the flow meter, enhancing both hot and cold water systems' performance.

Product Information

Standard Information

• Brand: Caleffi
• MPN: 132772A
• Material: Brass body, Chrome Plated Brass Trim

Technical Specifications

• Flow Rate: 5 to 19 gallons per minute
• Pressure: up to 150 psi
• Temperature Range: 14 to 230 degrees Fahrenheit
• Connection Type: FNPT 1-1/4 in
• Dimensions: Height: 6.5 inches
