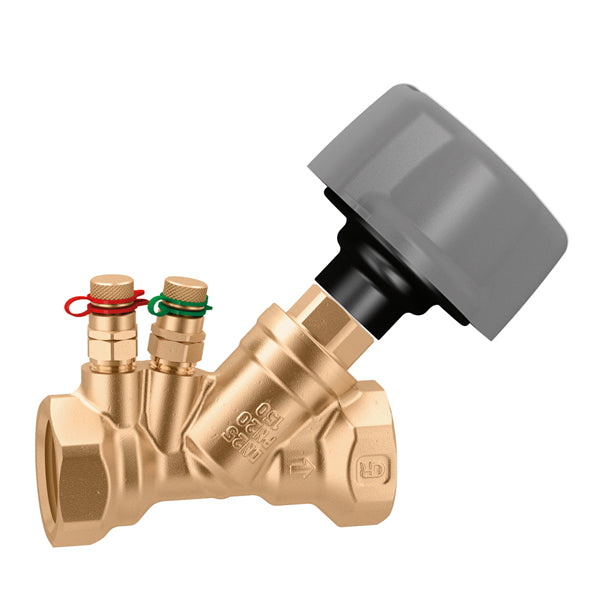

Caleffi 130400A 130 Series Fixed Orifice Low Lead Balancing Valve 1/2 NPT w/PT ports

Product Description

The Caleffi 130400A is a balancing valve that features a fixed orifice design. It is used for measuring and adjusting fluid flow rates in hydronic or plumbing circuits. This valve connects with a half-inch NPT size and is made from low lead brass, ensuring compliance with safety standards. The 130 series balancing valve can improve system efficiency by reducing pressure variations and turbulence, which makes readings from the pressure test ports reliable.

• Fixed orifice for accurate flow measurement
• Multi-turn adjustment for precise control
• Compatible with insulation shells to minimize heat loss

Product Highlights

Ideal for plumbers and HVAC technicians, this valve simplifies flow rate calculations and is designed for durability.

Product Information

Standard Information

• Brand: Caleffi North America
• Part Number: CALE-130400A

Technical Specifications

• Connection Type: MIP
• Size: 1/2 inches
• Max Pressure: 232 psi
• Temperature Range: -4°F to 230°F
• Flow Capacity: 3.7 Cv
• Material: Low Lead Brass
• Adjustments: 5
• Memory Stop Feature: Yes
