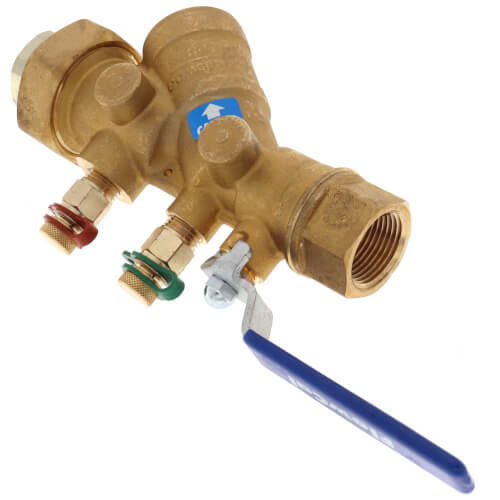

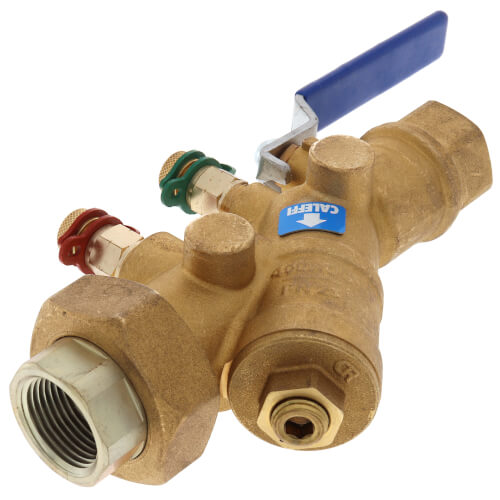

Caleffi 120351A-000 3/4 NPT FlowCal Y-Strainer w/ Integral Ball Valve & Pressure and Temperature Test Ports

Product Description

The Caleffi 120351A-000 is a Y-strainer designed for plumbing applications. It features a three-quarter inch NPT connection with an integral ball valve that simplifies inspection and maintenance. The unique design allows for easy replacement of the strainer cartridge without disconnecting the entire unit from the pipeline. The product also incorporates pressure and temperature test ports, enhancing its functionality in various systems.

• Brass body construction ensures durability.
• Includes stainless steel filter cartridge for reliable filtering.
• Maximum working pressure of four hundred psi.

Product Highlights

The Caleffi Y-strainer is ideal for applications requiring regular maintenance and testing.

Product Information

Standard Information

• Brand: Caleffi
• MPN: 120351A-000

Technical Specifications

• Connection Type: FNPT x FNPT
• Max Pressure: 400 psi
• Working Temperature Range: 32 - 212 degrees Fahrenheit
• Max Percentage Glycol: 50%
• Strainer Mesh Size: 20 mesh
• Flow Capacity (Cv): 8.4
• Shipping Weight: 2.6 pounds
• Shipping Dimensions (L x W x H): 9.75 x 6.5 x 3.5 inches
