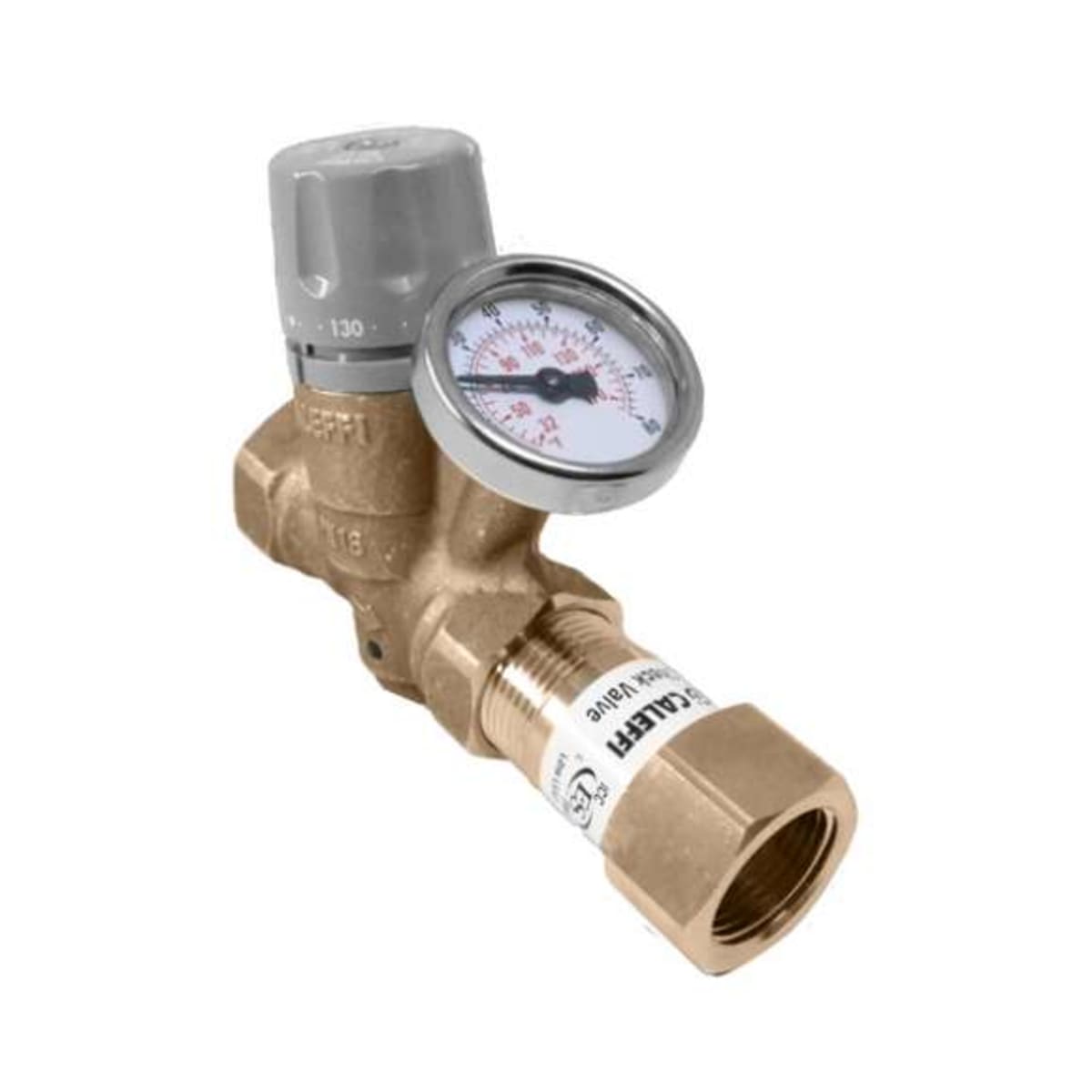

Caleffi 116451AC ThermoSetter Adjustable Thermal Balancing Valve 3/4 FNPT w/ Check Valve & Pressure Gauge

Product Description

The Caleffi 116451AC ThermoSetter adjustable thermal balancing valve is designed for automatic balancing of recirculation loops in domestic hot water systems. Its purpose is to enhance hot water delivery, minimize water waste, and improve energy efficiency.

• Features a built-in thermostatic balancing cartridge that modulates flow for consistent temperature control.
• Includes an adjustment knob indicating a temperature scale from 105 degrees Fahrenheit to 150 degrees Fahrenheit.
• Comes with a drywell for a slide-in temperature gauge or a sensor for remote temperature monitoring.

Product Highlights

This valve is ideal for residential and commercial applications requiring efficient hot water circulation and temperature management.

Product Information

Standard Information

• Brand: Caleffi North America
• Part Number: CALE-116451AC

Technical Specifications

• Size: 3/4 inches
• Type: Balancing Valve
• Connection Type: FIP
• Max Working Pressure: 230 psi (16 bar)
• Max Differential Pressure: 15 psi (1 bar)
• Max Inlet Temperature: 195 degrees Fahrenheit
• Temperature Adjustment Range: 105 degrees Fahrenheit to 150 degrees Fahrenheit
• Flow Capacity (Cv): Max 2.1, Min 0.35
