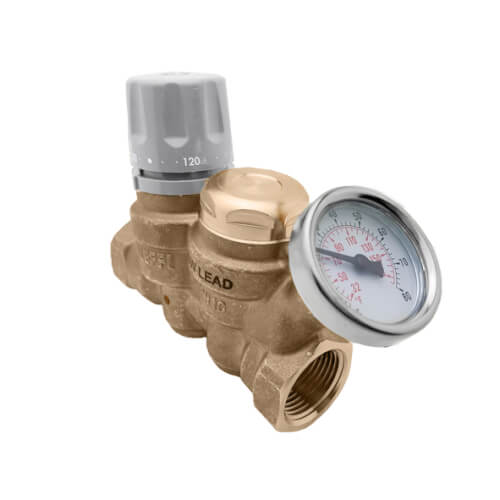

Caleffi 116141AC ThermoSetter Adjustable Thermal Balancing Valve 1/2 FNPT w/ Check Valve & Pressure Gauge

Product Description

The Caleffi ThermoSetter 116141AC is an adjustable thermal balancing valve designed for domestic hot water recirculation systems. This valve enhances hot water delivery efficiency, minimizes waste, and saves energy.

• Adjustable temperature settings for precise control.
• Includes a check valve to prevent thermo-syphoning.
• Durable DZR low-lead brass construction.

Product Highlights

This valve is suitable for managing flow in recirculation loops. It features a dry well for a temperature gauge, providing real-time monitoring.

Product Information

Standard Information

• Brand: Caleffi North America
• Part Number: 116141AC

Technical Specifications

• Connection Type: FIP
• Size: 1/2 inches
• Max Working Pressure: 230 psi (16 bar)
• Max Differential Pressure: 14.5 psi (1 bar)
• Max Inlet Temperature: 195°F
• Temperature Adjustment Range: 95°F to 140°F (35°C to 60°C)
• Flow Capacity (Cv): Max 2.1, Min 0.23
