Calefactio HGSC-SS Wall Mount Bracket & Service Center for Thermal Expansion Tanks

Product Description

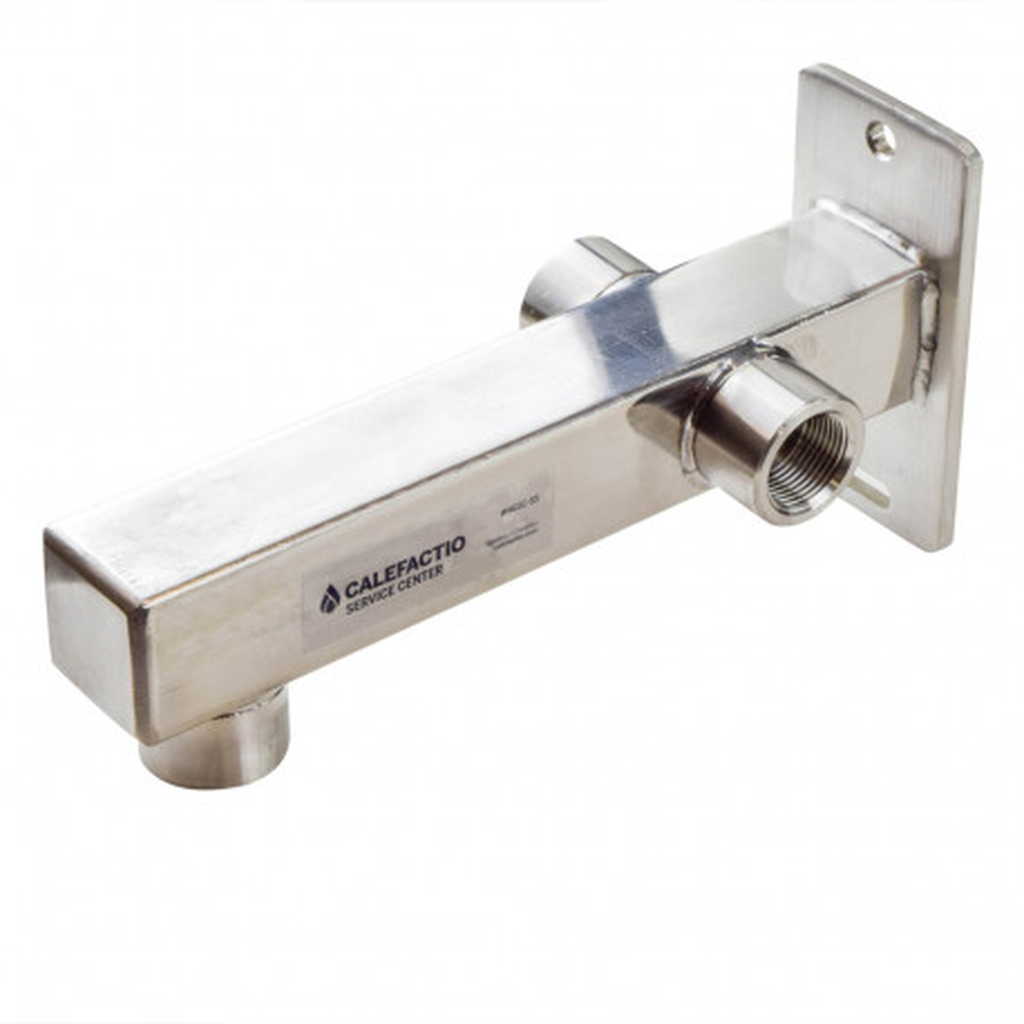

The CALEFACTIO HGSC-SS is a stainless steel wall mount bracket and service center designed for system-mount thermal expansion tanks. It supports up to 8-gallon tank models, including #5, #8, #12, and #25. This bracket simplifies installation and facilitates tank replacement, taking load off system piping and allowing flexible positioning. It features 3/4" Female NPT connections for water inlet/outlet and expansion tank, ensuring a professional setup for potable thermal expansion tanks.

• Non-corrosive, heavy-gauge stainless steel
• Allows for a professional tank installation with an optional ability to connect a service valve and pressure gauge
• Takes off load from the system piping, allows for flexible positioning of the tank

Product Highlights

Stainless steel wall mount bracket and service center for thermal expansion tanks, simplifying installation and maintenance.

Product Information

Standard Information

• Brand: CALEFACTIO
• Manufacturer Part Number: HGSC-SS

Technical Specifications

• Material: Stainless Steel
• Water Inlet/Outlet Connection: 3/4" Female NPT
• Expansion Tank Connection: 3/4" Female NPT
• Length: 9-1/4" (overall)
• Wall to Tank Inlet/Center Distance: 8" (also, max. tank diameter)
• Height: 4-3/4"
• Width: 2-3/8"
• Manufacturer Part Number: HGSC-SS
• Application: Potable Thermal Expansion Tanks
• Mounting Type: Wall
• Accessory Type: Wall Mount Service Center
