Calbrite S61500LB00 Stainless Steel LB Conduit Body 1-1/2 inches

Product Description

The CALBRITE S61500LB00 is a stainless steel conduit body that connects and allows for changes in the direction of conduit runs. It can be used as a pulling fitting, with an accessible wiring chamber that provides a spacious location to make splices. Designed for use with stainless steel EMT, light wall, and rigid conduits.

• Connects and changes direction of conduit runs
• Accessible wiring chamber for splices
• NPT threaded coupling

Product Highlights

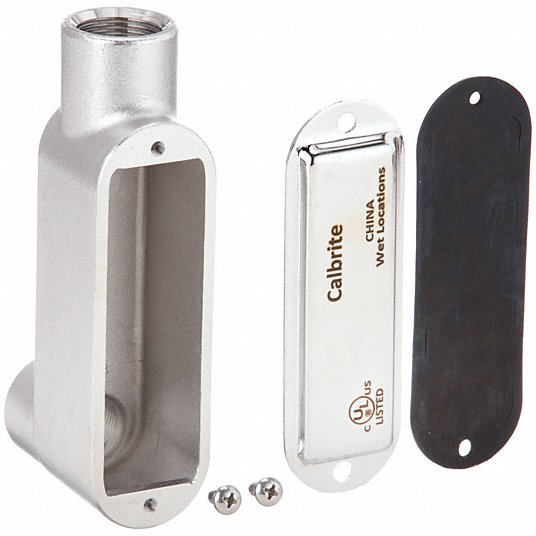

This LB conduit body is constructed from 316 stainless steel with a #4 polished finish and includes a neoprene gasket, cover, and screws.

Product Information

Standard Information

• Brand: CALBRITE
• Manufacturer Part Number: S61500LB00
• Country of Origin: China

Technical Specifications

• Catalog Number: S61500LB00
• Manufacturer: ATKORE - CALBRITE
• Brand: Calbrite
• Country of Origin: China
• Made in USA: No
• Application: TO CONNECT AMD CHANGE DIRECTION OF CONDUIT RUNS
• Connection: NPT Threaded Coupling
• Finish: #4 Polished Finish
• Material: Stainless Steel - 316
• Standard: UL 514A
• UPC: 847656000967
• GTIN: 00847656000967
• Item Type: Rigid
• Length: 8.87
• Width: 2.53
• Height: 4.15
• Configuration: LB
• Cover Type: 316 Stainless Steel
• Hub Location: 90 Degree
• Number of Hubs: 2
• Hub Size: 1-1/2 Inch
• Installation: Screw
• Form Type: Form 8
• Approval: UL (Canada and US), UL 514A
• Used On: Stainless Steel EMT, Light Wall, Rigid Conduit
• Enclosure Rating: NEMA 4X
• Back Type: Flat
• Body Type: Conduit Outlet Body with Cover
• Hub Style: Threaded
• Standards: UL File# E307133, UL 514A
• Trade Size: 1 1/2 in
• Thread Size: 1-1/2 in
• Thread Type: NPT
• For Use With: EMT, RMC
• Body Capacity: 35 cu in
• Overall Width: 2 1/2 in
• Thread Gender: Female
• Cover Included: Yes
• Overall Height: 4 1/8 in
• Overall Length: 8 7/8 in
• Connection Type: Threaded
• Gasket Included: Yes
• Hazardous Location: No
• Indoor/Outdoor Usage: Indoor/Outdoor
• Connection Orientation: 90 Degrees
• Compatible Conduit Type: EMT, RMC
• Conduit Outlet Hub Size: 1-1/2"
• Conduit Outlet Body Type: Conduit Outlet Body with Cover
• Conduit Outlet Body Style: LB
• Conduit Outlet Body Capacity: 35.0 cu in
• Conduit Outlet Body Hub Size: 1 1/2 in
• Conduit Outlet Body Material: Stainless Steel
• Compatible Conduit Trade Size: 1 1/2 in
• Conduit Outlet Body Hub Style: Threaded
