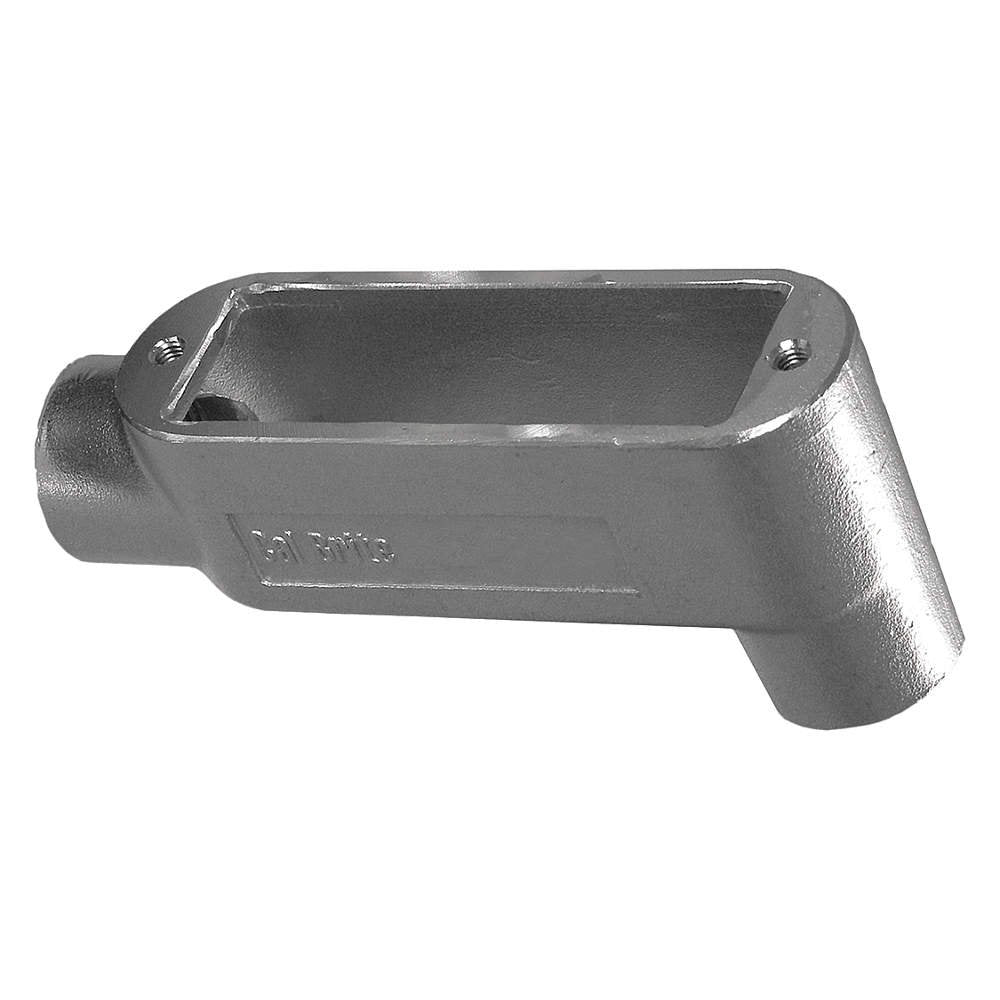

Calbrite S61000LB00 Stainless Steel Conduit Body W/Gasket, LB-Type, 1 Inch

Product Description

The CALBRITE S61000LB00 is a stainless steel conduit body with gasket, LB-Type, and 1-inch trade size. It is manufactured in type 316 stainless steel and polished with a standard brite finish. The conduit body connects and allows for changes in the direction of conduit runs. It can be used as a pulling fitting with an accessible wiring chamber.

• Manufactured in type 316 stainless steel to meet any stringent sanitary condition
• Polished with standard brite finish to increase corrosion resistance and aesthetic appearance
• Solid stainless construction permits easy installation using ordinary hand tools

Product Highlights

This stainless steel conduit body is suitable for connecting and changing the direction of conduit runs in demanding environments.

Product Information

Standard Information

• Brand: CALBRITE
• Manufacturer Part Number: S61000LB00
• Country of Origin: Multiple

Technical Specifications

• Item Model Number: S61000LB00
• Type: Stainless Steel Conduit Bodies
• Brand: Calbrite
• Material: Stainless Steel
• Trade Size: 1 Inch
• Applications: To connect and change direction of conduit runs
• Form: Form 8
• Finish: Polished
• Hub Size: 1 in
• Standard: UL514A,
• Back Type: Flat
• Body Type: Conduit Outlet Body with Cover
• Body Style: LB
• Thread Size: 1 in
• Thread Type: NPT
• For Use With: EMT, RMC
• Body Capacity: 11 cu in
• Thread Gender: Female
• Cover Included: Yes
• Number of Hubs: 2
• Connection Type: Threaded
• Gasket Included: Yes
• Indoor/Outdoor Usage: Indoor/Outdoor
• Connection Orientation: 90 Degrees
• Compatible Conduit Type: EMT, RMC
• Conduit Outlet Hub Size: 1"
• Conduit Outlet Body Type: Conduit Outlet Body with Cover
• Conduit Outlet Body Style: LB
• Conduit Outlet Body Capacity: 11.0 cu in
• Conduit Outlet Body Hub Size: 1 in
• Conduit Outlet Body Material: Stainless Steel
• Compatible Conduit Trade Size: 1 in
• Conduit Outlet Body Hub Style: Threaded
• Configuration: LB
• Cover Type: 316 Stainless Steel
• Hub Location: 90 Degree
• Installation: Screw
• Approval: UL (Canada and US), UL 514A
• Used On: Stainless Steel EMT, Light Wall, Rigid Conduit
• Enclosure Rating: NEMA 4X
• Includes: Neoprene Gasket, Cover, Screws
• Material Type: Stainless Steel - 316
• Surface Finish: #4 Polished Finish
• Resistance Properties: Corrosion Resistant, Rust Resistant
• Flexibility: Rigid
• Capacity: 11 in³
