Calbrite S60700TB00 TB Conduit Body 3/4 Inch

Product Description

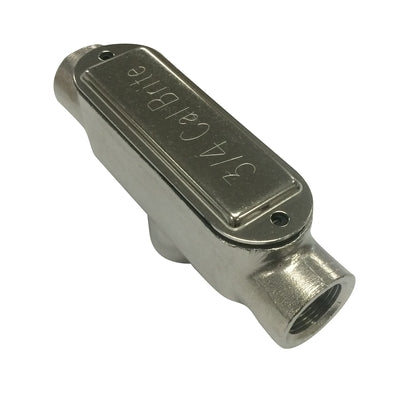

The CALBRITE S60700TB00 is a 3/4 inch stainless steel TB-type conduit body, manufactured in type 316 stainless steel. Polished with a standard brite finish to increase corrosion resistance and improve appearance. Designed for use with stainless threaded conduit. Solid stainless construction permits easy installation using ordinary hand tools.

• Manufactured in type 316 stainless steel to meet stringent sanitary conditions.
• Polished finish increases corrosion resistance.
• Flat back design allows extra wiring capacity.

Product Highlights

This stainless steel TB conduit body connects and changes the direction of conduit runs. It can be used as a pulling fitting, with an accessible wiring chamber for making splices.

Product Information

Standard Information

• Brand: CALBRITE
• Manufacturer Part Number: S60700TB00
• Country of Origin: Multiple

Technical Specifications

• Type: Type TB
• Brand: Calbrite®
• Width: 1.600 in
• Height: 2.72 Inch
• Length: 6.27 Inch
• Material: 316L Stainless Steel
• Form Type: 8
• Trade Size: 3/4 Inch
• Product UPC: 84765600111
• 12-Digit UPC: 847656001117
• Applications: TO CONNECT AMD CHANGE DIRECTION OF CONDUIT RUNS
• TC Connection: NPT Threaded Coupling
• Catalog Number: S60700TB00
• Manufacturer: ATKORE - CALBRITE
• Country of Origin: China
• Made in USA: No
• Finish: #4 Polished Finish
• Standard: UL 514A
• UPC: 847656001117
• GTIN: 00847656001117
• Item Type: Rigid
• Configuration: TB
• Cover Type: 316 Stainless Steel
• Hub Location: Tee Back
• Number of Hubs: 3
• Hub Size: 3/4 Inch
• Size: 6.27 Inch L x 1.6 Inch W x 2.72 Inch H
• Installation: Screw
• Approval: UL (Canada and US), UL 514A
• Used On: Stainless Threaded Conduit
• Enclosure Rating: NEMA 4X
• Back Type: Flat
• Body Type: Conduit Outlet Body with Cover
• Body Style: TB
• Connection: NPT Threaded Coupling
• Thread Size: 3/4 in
• Thread Type: NPT
• For Use With: Threaded
• Style of Hub: Threaded
• Body Capacity: 9 cu in
• Overall Width: 1 9/16 in
• Thread Gender: Female
• Cover Included: Yes
• Overall Height: 3 3/16 in
• Overall Length: 6 9/16 in
• Connection Type: Threaded
• Gasket Included: Yes
• Special Features: Cover and Gasket Included, Designed for Use with Stainless Threaded Conduits, Easy Installation Using Ordinary Hand Tools
• Hazardous Location: No
• Indoor/Outdoor Usage: Indoor/Outdoor
• Connection Orientation: Multi-Angle
• Conduit Outlet Hub Size: 3/4"
• Conduit Outlet Body Type: Conduit Outlet Body with Cover
• Conduit Outlet Body Style: TB
• Conduit Outlet Body Capacity: 9.0 cu in
• Conduit Outlet Body Hub Size: 3/4 in
• Conduit Outlet Body Material: Stainless Steel
• Compatible Conduit Trade Size: 3/4 in
• Conduit Outlet Body Hub Style: Threaded
• Part Width (in): 1.55
• Part Height (in): 3.22
• Part Length (in): 6.54
• Fitting Type: Conduit Body
• Conduit Body Type: Form 8
• Conduit Body Configuration: TB
• Threads 1: NPT
• Material Type: Stainless Steel - 316
• Surface Finish: #4 Polished Finish
• Oil Resistant: true
• Brands: Calbrite
• Diameter: 3/4 in
• ARRA Compliant: N
• Buy American Compliant: N
• EU RoHS Indicator: Y
• Capacity: 9 in³
