Calbrite S60700LB00 Conduit Body, 3/4 in NPT Threaded Coupling

Product Description

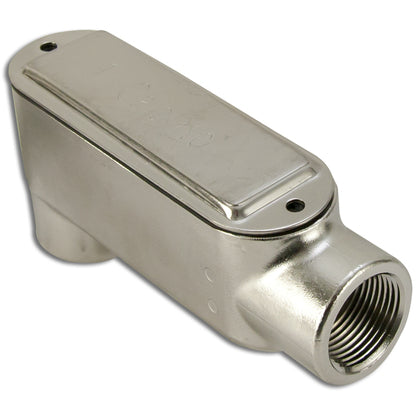

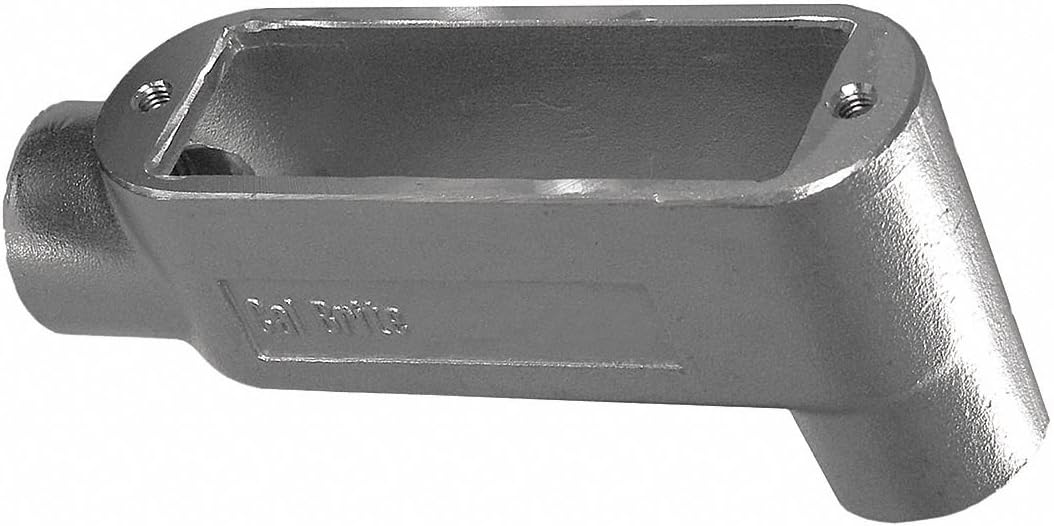

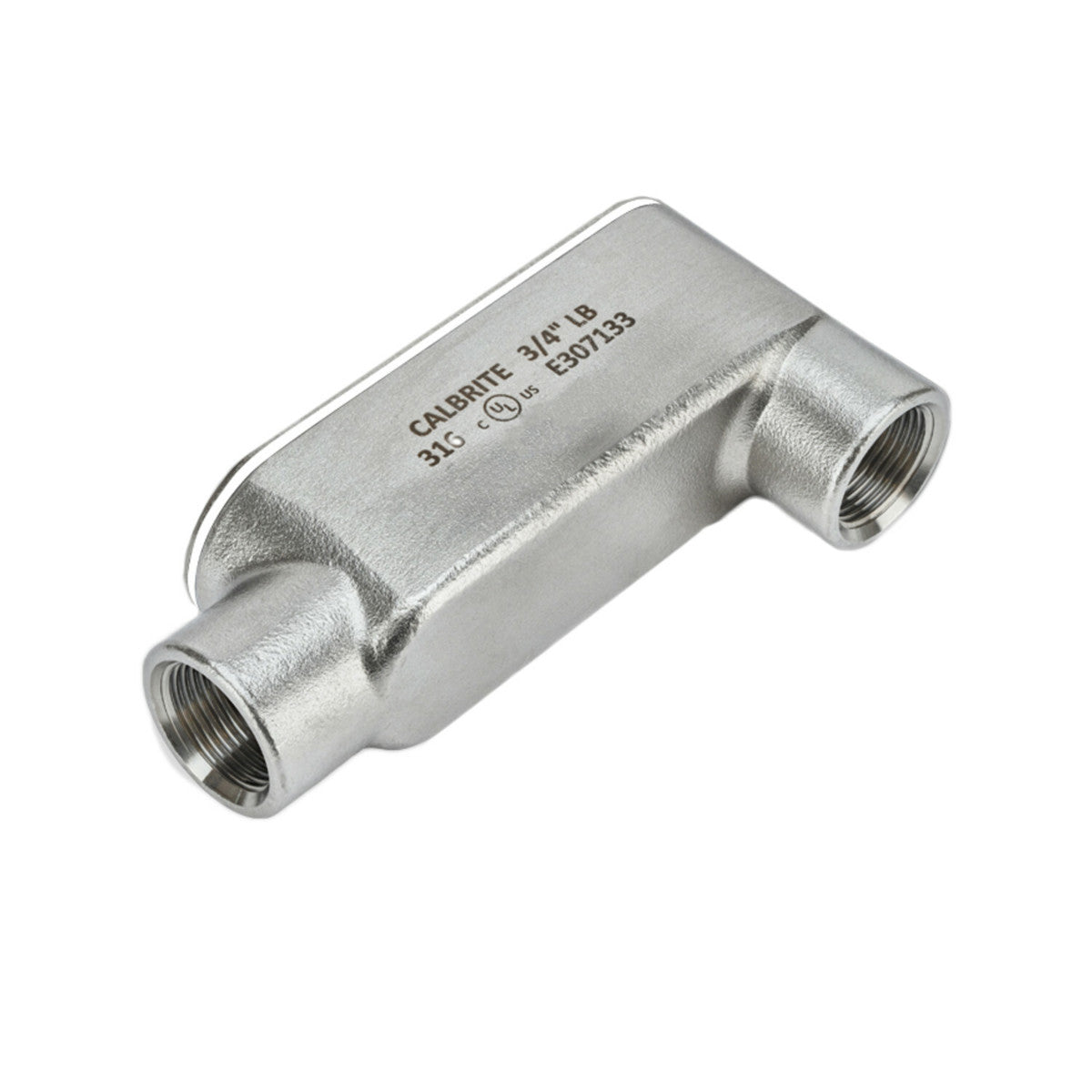

The CALBRITE S60700LB00 is a stainless steel 316L conduit body with a 3/4 in NPT threaded coupling. It connects and allows for changes in the direction of conduit runs and can be used as a pulling fitting. The accessible wiring chamber provides a spacious location to make splices. It is designed for use with stainless steel EMT, light wall, and rigid conduits.

• Constructed from 316 stainless steel for corrosion resistance.
• Features a 3/4 inch NPT threaded coupling.
• Includes a cover and neoprene gasket.

Product Highlights

This conduit body is ideal for food and beverage production, chemical plants, and wastewater treatment.

Product Information

Standard Information

• Brand: CALBRITE
• Manufacturer Part Number: S60700LB00
• Country of Origin: China

Technical Specifications

• Material: Stainless Steel - 316
• Thread Type: NPT
• Connector Type: Coupling
• Brand: Calbrite
• Application: TO CONNECT AMD CHANGE DIRECTION OF CONDUIT RUNS
• Finish: #4 Polished Finish
• Standard: UL 514A
• Item Type: Rigid
• Configuration: LB
• Cover Type: 316 Stainless Steel
• Hub Location: 90 Degree
• Number of Hubs: 2
• Hub Size: 3/4 in
• Installation: Screw
• Form Type: Form 8
• Approval: UL (Canada and US), UL 514A
• Used On: Stainless Steel EMT, Light Wall, Rigid Conduit
• Enclosure Rating: NEMA 4X
• Conduit Outlet Body Style: LB
• Conduit Outlet Body Hub Size: 3/4 In.
• Conduit Outlet Body Hub Style: Threaded
• Conduit Outlet Body Capacity: 7.0 cu in
• Back Type: Flat
• Body Type: Conduit Outlet Body with Cover
• Trade Size: 3/4 in
• For Use With: EMT, RMC
• Style of Hub: Threaded
• Body Capacity: 7 cu in
• Thread Gender: Female
• Cover Included: Yes
• Connection Type: Threaded
• Gasket Included: Yes
• Special Features: Easy Installation Using Ordinary Hand Tools, Designed for Use with Stainless Steel EMT, Light Wall and Rigid Conduits, Cover and Gasket Included
• Hazardous Location: No
• Indoor/Outdoor Usage: Indoor/Outdoor
• Connection Orientation: 90 Degrees
• Compatible Conduit Type: EMT, RMC
• Conduit Outlet Body Type: Conduit Outlet Body with Cover
• Conduit Outlet Body Material: Stainless Steel
• Compatible Conduit Trade Size: 3/4 in
• Fitting Type: Conduit Body
• Conduit Body Type: Form 8
• Conduit Body Configuration: LB
• Threads 1: NPT
• Material Type: Stainless Steel - 316
• Surface Finish: #4 Polished Finish
• Oil Resistant: true
• Diameter: 3/4 in
