Description

Product Description

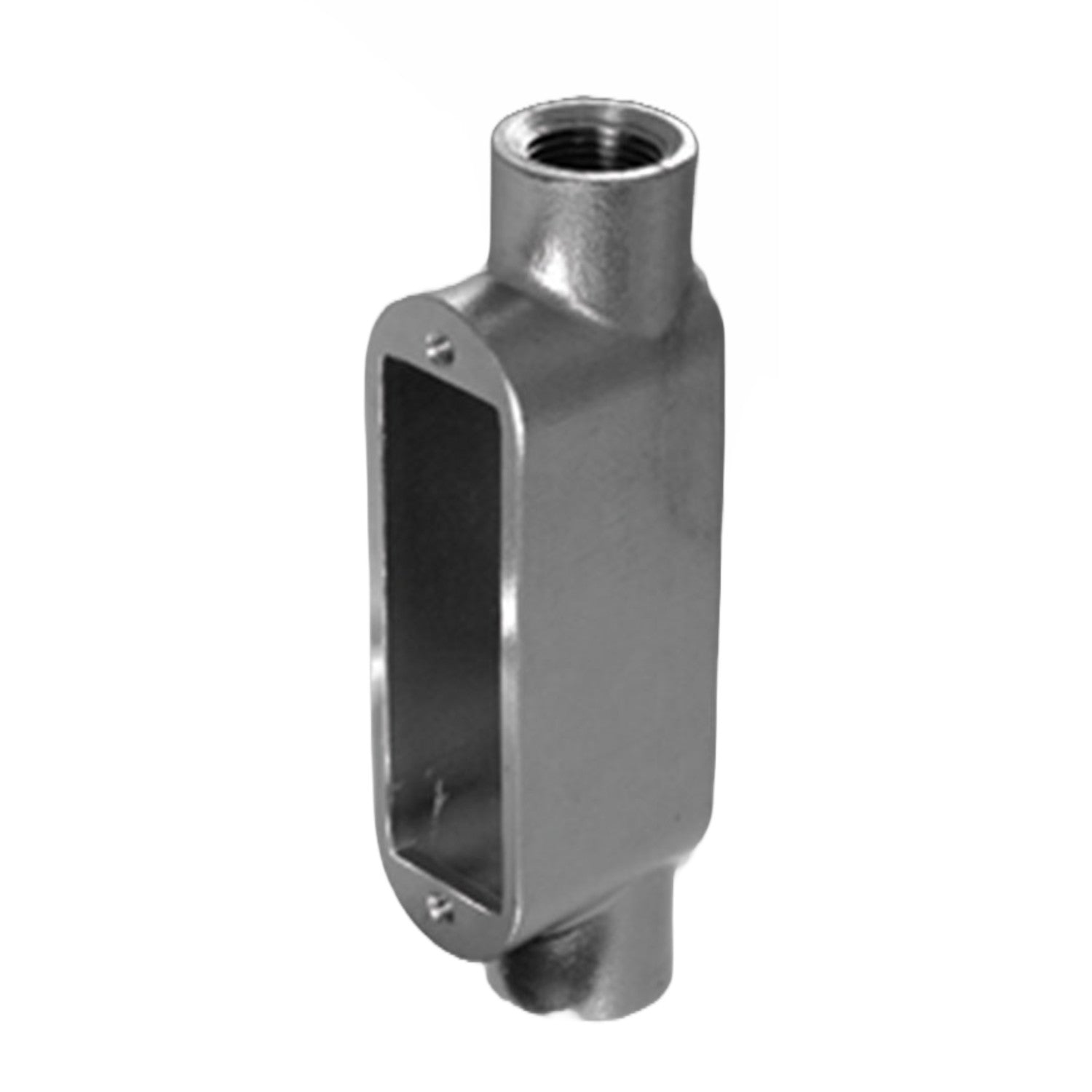

The CALBRITE S60700CE00 is a rigid stainless steel 316 C conduit body with a 3/4" trade size. It connects and allows for changes in the direction of conduit runs and can be used as pulling fittings. The accessible wiring chamber provides a spacious location to make splices and has a flat back design that allows extra wiring capacity.

  • Manufactured in type 316 stainless steel to meet any stringent sanitary condition
  • Polished with standard brite finish to increase corrosion resistance and aesthetic appearance
  • Solid stainless construction permits easy installation using ordinary hand tools

Product Highlights

This stainless steel conduit body is UL 514A Listed and NSF/ANSI 169 Certified, approved for wet locations, and intended for installation in accordance with Article 314 of ANSI/NFPA 70, National Electrical Code (NEC).

Product Information

Standard Information

  • Brand: CALBRITE
  • Manufacturer Part Number: S60700CE00
  • Country of Origin: Multiple
Technical Specifications
Type
Stainless Steel C Conduit Bodies
Brand
Calbrite
Width
1.560 in
Height
2.02 Inch
Length
6.28 Inch
Material
316L Stainless Steel
Form Type
8
Trade Size
3/4 Inch
Applications
CONNCET AND CHANGE DIRECTIONS OF CONDUIT RUNS
TC Connection
NPT Threaded Coupling
Catalog Number
S60700CE00
Manufacturer
ATKORE - CALBRITE
Country of Origin
China
Made in USA
No
Connection
NPT Threaded Coupling
Finish
#4 Polished Finish
Standard
UL 514A
Item Type
Rigid
Access Opening Side
Side
Configuration
C
Cover Type
316 Stainless Steel
Hub Location
Straight
Number of Hubs
2
Hub Size
3/4 Inch
Size
6.28 Inch L x 1.56 Inch W x 2.02 Inch H
Installation
Screw
Approval
UL (Canada and US)
Used On
Stainless Threaded Conduit
Enclosure Rating
NEMA 4X
Includes
Neoprene Gasket, Cover, Screws
Application
Food and Beverage Production, Chemical Plants, Water and Wastewater Treatment, Pharmaceuticals and Cosmetics, Refining and Extraction Sites, Petrochemical Operations, Marine and Coastal Facilities, Pulp and Paper Mills
Back Type
Flat
Body Type
Conduit Outlet Body with Cover
Hub Style
Threaded
Standards
UL File# E307133, UL 514A
Body Style
C
Thread Size
3/4 in
Thread Type
NPT
For Use With
Threaded
Style of Hub
Threaded
Body Capacity
9 cu in
Overall Width
1 9/16 in
Thread Gender
Female
Cover Included
Yes
Overall Height
2 in
Overall Length
6 9/16 in
Connection Type
Threaded
Gasket Included
Yes
Special Features
Cover and Gasket Included, Designed for Use with Stainless Threaded Conduits, Easy Installation Using Ordinary Hand Tools
Hazardous Location
No
Indoor/Outdoor Usage
Indoor/Outdoor
Connection Orientation
Straight
Conduit Outlet Hub Size
3/4"
Conduit Outlet Body Type
Conduit Outlet Body with Cover
Conduit Outlet Body Style
C
Conduit Outlet Body Capacity
9.0 cu in
Conduit Outlet Body Hub Size
3/4 in
Conduit Outlet Body Material
Stainless Steel
Compatible Conduit Trade Size
3/4 in
Conduit Outlet Body Hub Style
Threaded
Part Width (in)
1.55
Part Height (in)
1.98
Part Length (in)
6.54
Fitting Type
Conduit Body
Conduit Body Type
Form 8
Conduit Body Configuration
C
Threads 1
NPT
Material Type
Stainless Steel - 316
Surface Finish
#4 Polished Finish
Oil Resistant
true
MPN
S60700CE00
Dimensions
6.28 in L x 1.56 in W x 2.02 in H
Capacity
9 in³
