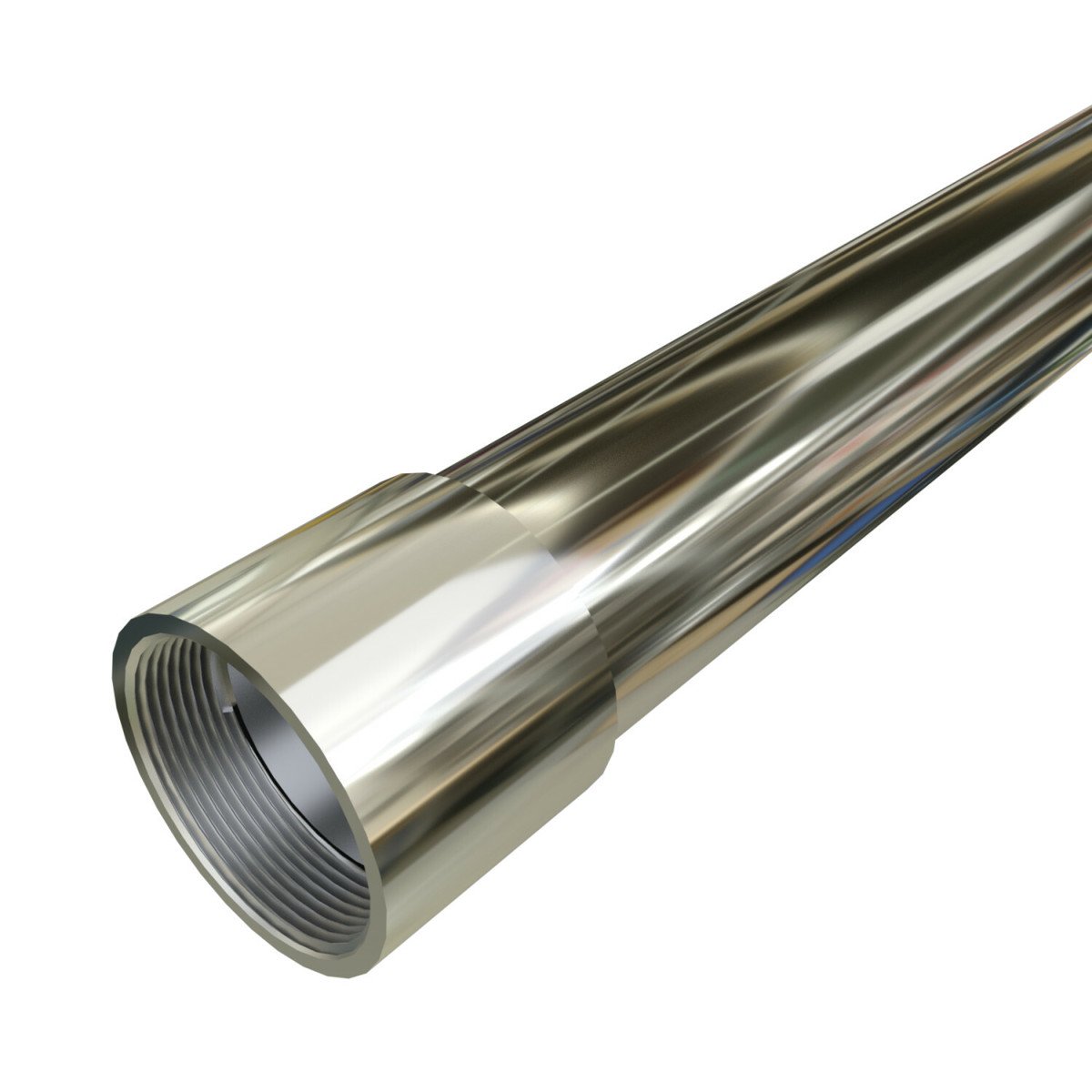

Calbrite S41010CT00 1 inches x 10ft Stainless Steel Rigid Conduit w/Coupling, Type 304

Product Description

The CALBRITE S41010CT00 is a 1" trade size, 10-foot long rigid conduit made of type 304 stainless steel, designed for corrosive environments. It is UL listed under UL6A and ANSI C80.1. The conduit includes one coupling and features standard NPT threads for easy installation, suitable for indoor or outdoor, exposed or concealed applications.

• Manufactured in type 304L and 316L stainless steel for corrosive environments.
• Polished finish enhances corrosion resistance and appearance.
• Installed like standard metallic conduit, without special procedures.

Product Highlights

This stainless steel rigid conduit is ideal for applications requiring high corrosion resistance and plant cleanliness.

Product Information

Standard Information

• Brand: CALBRITE
• Manufacturer Part Number: S41010CT00
• Country of Origin: USA

Technical Specifications

• Type: Stainless Steel Rigid Conduit
• Brand: Calbrite
• Width: 1.315 in
• Height: 1.315 Inch
• Length: 10 Foot
• Material: Stainless Steel
• Trade Size: 1 Inch
• Applications: INSTALLED INDOORS OR OUTDOORS, EXPOSED OR CONCEALED
• TC Connection: NPT Threaded Coupling
• Wall Thickness: 0.266 in
• Inside Diameter: 1.049 in
• Outside Diameter: 1.315 in
• Country of Origin: USA
• Catalog Number: S41010CT00
• Manufacturer: ATKORE - CALBRITE
• Made in USA: Yes
• Connection: NPT Threaded Coupling
• Finish: #4 Polished Finish
• Standard: UL6A, CUL 6A
• Item Type: Rigid
• Thread Type: NPT
• Conduit Type: RMC
• Wet Location: Yes
• Conduit Style: Conduit
• Thread Gender: Male
• Nominal Length: 10 ft
• Overall Length: 9 15/16 ft
• Connection Type: Threaded
• Conduit Material: 304 Stainless Steel
• Special Features: Includes (1) Coupling, Standard NPT Threads Allow for Trouble-Free Installation
• Conduit Trade Size: 1 in
• Max. Operating Temp.: 1,600 Degrees F
• Min. Operating Temp.: -150 Degrees F
• Nominal Outside Dia.: 1 5/16 in
• Metallic Conduit Type: Rigid
• Conduit Nominal Length: 10 ft
• Metallic Conduit Style: Conduit
• Inner Diameter: 1.049 Inch
• End Style: Threaded
• Approval: UL/CUL 6A, CSA C22.1
• Applicable Standard: ANSI/NFPA 70, NEC
• Thread Size: 11.5 TPI
• Temperature Rating: -150 to 1600 deg F
• Thickness: 0.266 in
• Diameter: 1.049 Inch
• Buy American Compliant: Y
