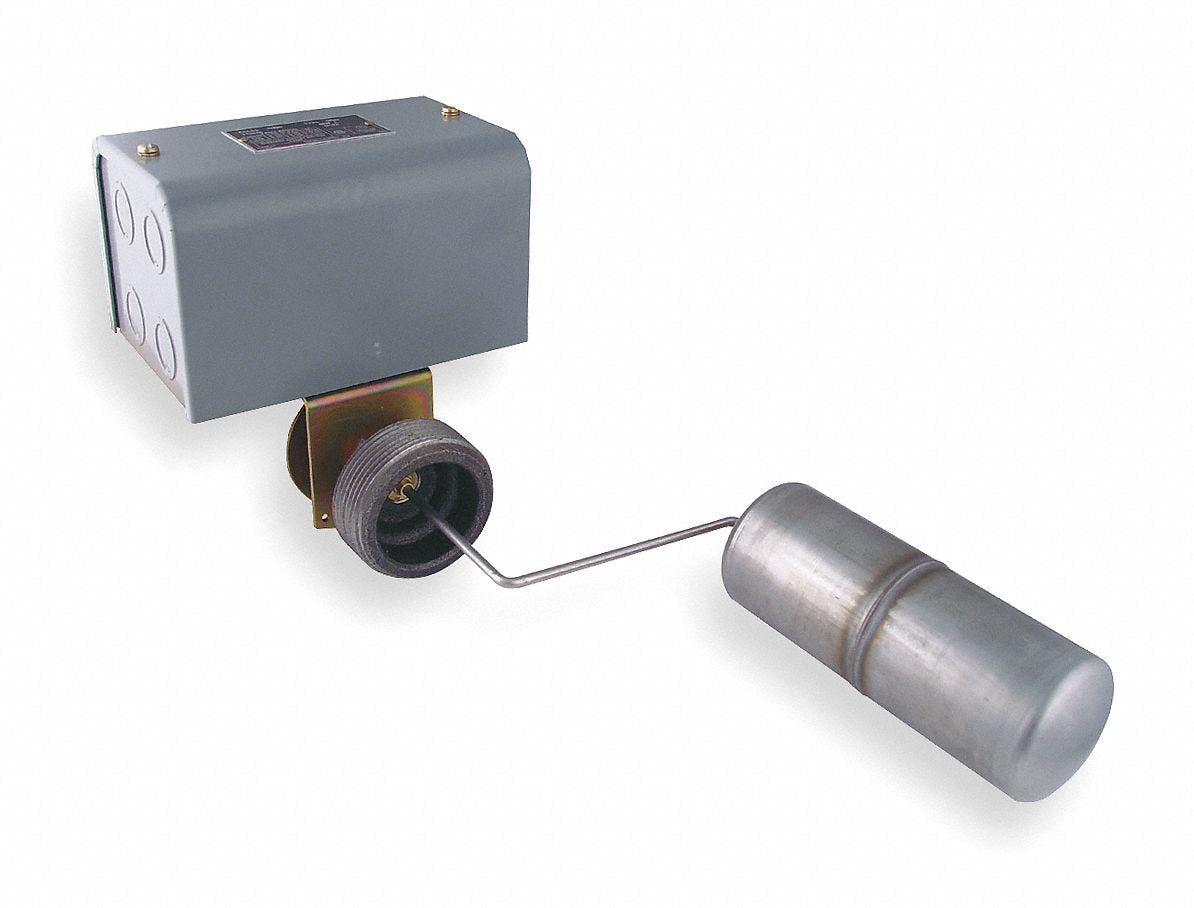

CAI - SQUARE D 9038CG36N4 Tank Liquid 2-Level Switch Close On Rise 2-1/2 MNPT

Product Description

The CAI - SQUARE D 9038CG36N4 tank liquid 2-level switch is designed for horizontal open tank applications. This switch operates by mechanically controlling two pumps in a duplex system. It features a close on rise function for efficient fluid management.

• Designed for horizontal mounting
• Float rod angle is ninety degrees
• Compatible with various tank sizes

Product Highlights

This unit is ideal for managing fluid levels in tanks, using a stainless steel float and rod for durability.

Product Information

Standard Information

• Manufacturer: CAI - SQUARE D
• Product Type: Tank Liquid 2-Level Switch

Technical Specifications

• MPN: 9038CG36N4
• Tank Connection Size: 2-1/2 MNPT
• Float Length: 7.00 inches
• Float Diameter: 2.50 inches
• Operating Temperature Range: -22 Degrees to 220 Degrees F
• Max Pressure: 50 psi
• Overall Length: 17.81 inches
• Max Voltage: 600V
