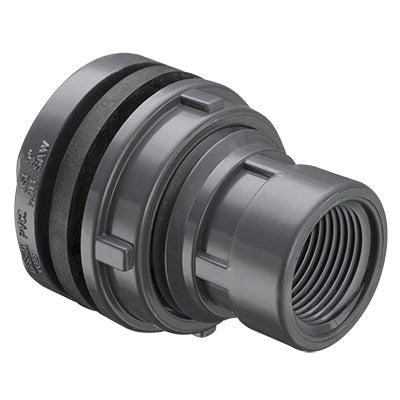

CAI - SPEARS 8172-020 PVC Bulkhead Tank Fitting 2 FNPT x Socket

Product Description

The CAI - SPEARS 8172-020 is a PVC bulkhead tank fitting designed for effective liquid management in tanks or drums. This fitting features a two-inch nominal pipe size with a female NPT connection type for secure installations. The fitting's precise design allows for reliable drainage and filling applications.

• Item: Bulkhead Tank Fitting
• Body Material: PVC
• Connection Type: FNPT x Socket

Product Highlights

This fitting works well for various plumbing and drainage needs. It is built with reinforced female threads, enhancing connection strength and durability, suitable for both plastic and metal pipe transitions.

Product Information

Standard Information

• Manufacturer: CAI - SPEARS
• MPN: 8172-020

Technical Specifications

• Pipe Size: 2 inches
• Max. Pressure: 150 psi
• Length: 4-1/8 inches
• Required Hole Size: 3-1/4 inches
• Gasket Material: Neoprene
• Temp. Range: 0 to 73 Degrees F
• Color: Gray
• Standards: LPCB
