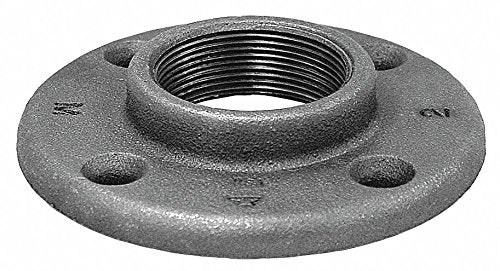

CAI - ANVIL 0310105200 Malleable Iron Floor Flange Class 150 3/4 in FNPT x Flanged

Product Description

The Anvil 0310105200 is a flanged floor flange made from malleable iron. This fitting is designed for use with three-quarter inch nominal pipe sizes. It features a flanged connection type of FNPT x FLNG, making it suitable for various plumbing applications.

• Temperature rating from negative twenty to one hundred fifty degrees Fahrenheit
• Complies with ASME B16.3 and other quality standards
• Class 150 pressure rating

Product Highlights

This floor flange is ideal for non-pressure service and offers reliable connections in plumbing systems.

Product Information

Standard Information

• Brand: CAI - ANVIL
• MPN: 0310105200

Technical Specifications

• Material: Malleable Iron
• Outside Diameter: 3.5 inches
• Number of Bolt Holes: 4
• Pressure Rating: 150 lb
• Connection Type: FNPT x FLNG
• Temperature Range: -20 to 150 degrees F
• Standards Met: ASME B16.3, UL Listed, FM Approved
• Country of Origin: United States
