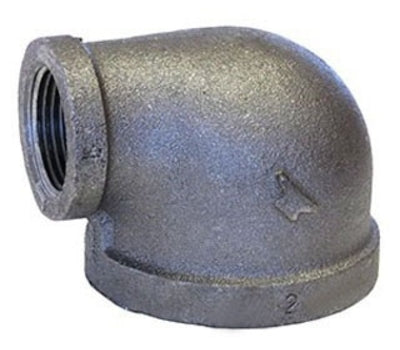

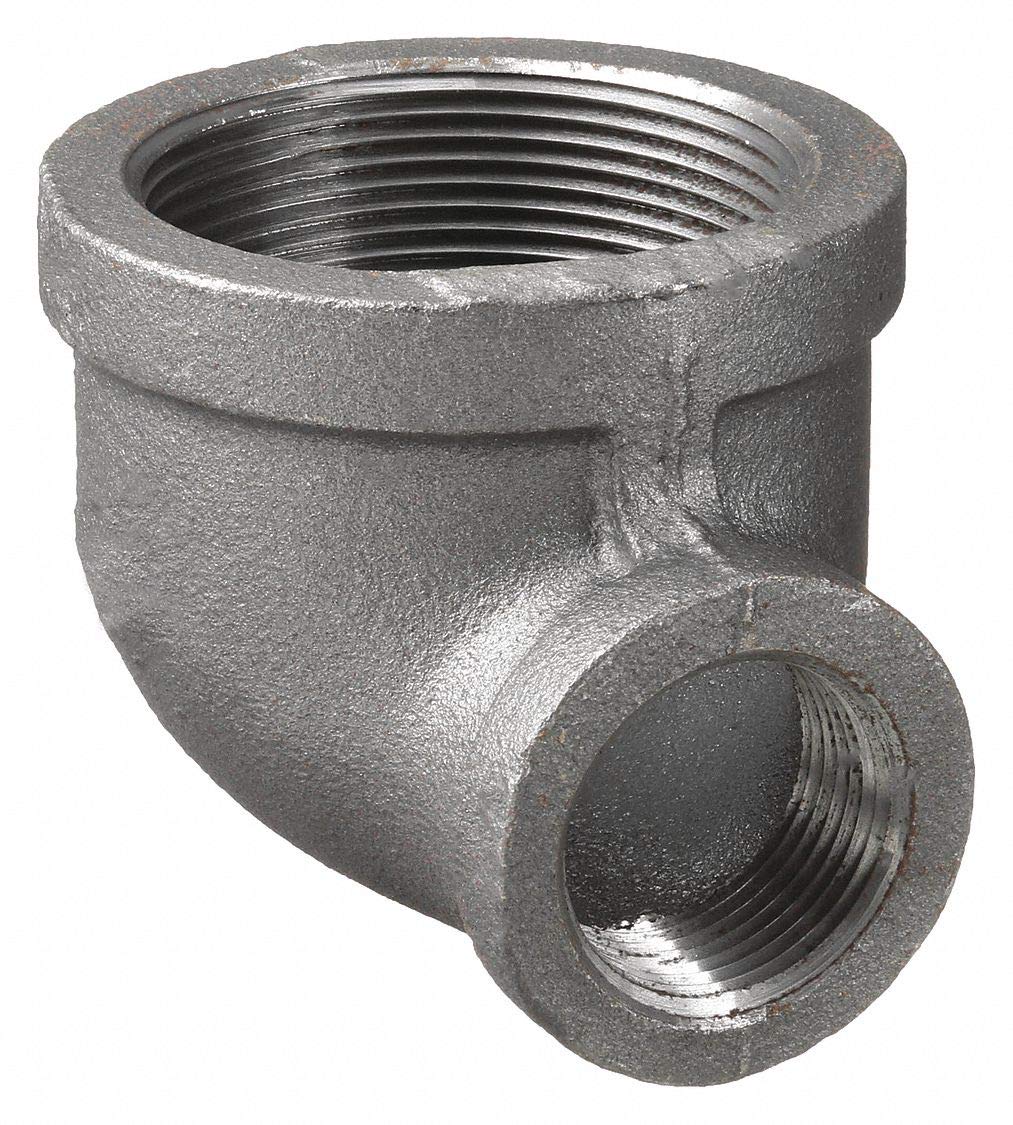

CAI - ANVIL 0310008602 1 x 1/2 in. Female Black Malleable Iron 90-Degree Reducing Elbow

Product Description

The CAI - ANVIL 0310008602 is a 90-degree reducing elbow made from malleable iron. This fitting connects pipes of different sizes, specifically one inch and one-half inches, for plumbing applications. It is designed for low-pressure systems and is suitable for air, water, natural gas, and steam. With a maximum pressure rating of three hundred psi at one hundred fifty degrees Fahrenheit, this fitting is reliable in various environments.

• Material: Malleable Iron
• Connection Type: FNPT
• Standards Met: ASME B16.3, UL, FM Approved

Product Highlights

This reducing elbow is ideal for plumbing applications as it provides stability and durability, ensuring a secure connection between pipes of differing diameters.

Product Information

Standard Information

• Fitting Shape: Elbow
• Fitting Size: 1 x 1/2 in.

Technical Specifications

• Pressure Rating: 300 psi @ 150 Degrees F
• Temperature Range: -20 Degrees to 350 Degrees F
• Material: Malleable Iron
• Saturated Steam Pressure: 150 psi @ 350 Degrees F
• Class/Pressure: Class 150
• Pipe Fitting Gender: Female Female
• Connection Type: FNPT
• Specifications Met: ASME B16.3, cULus Listed, FM Approved
