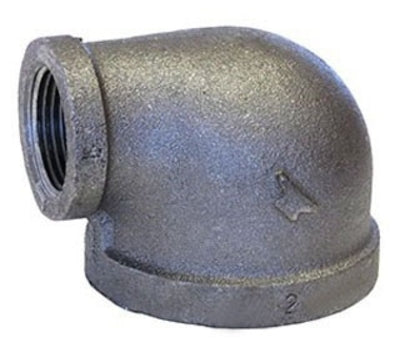

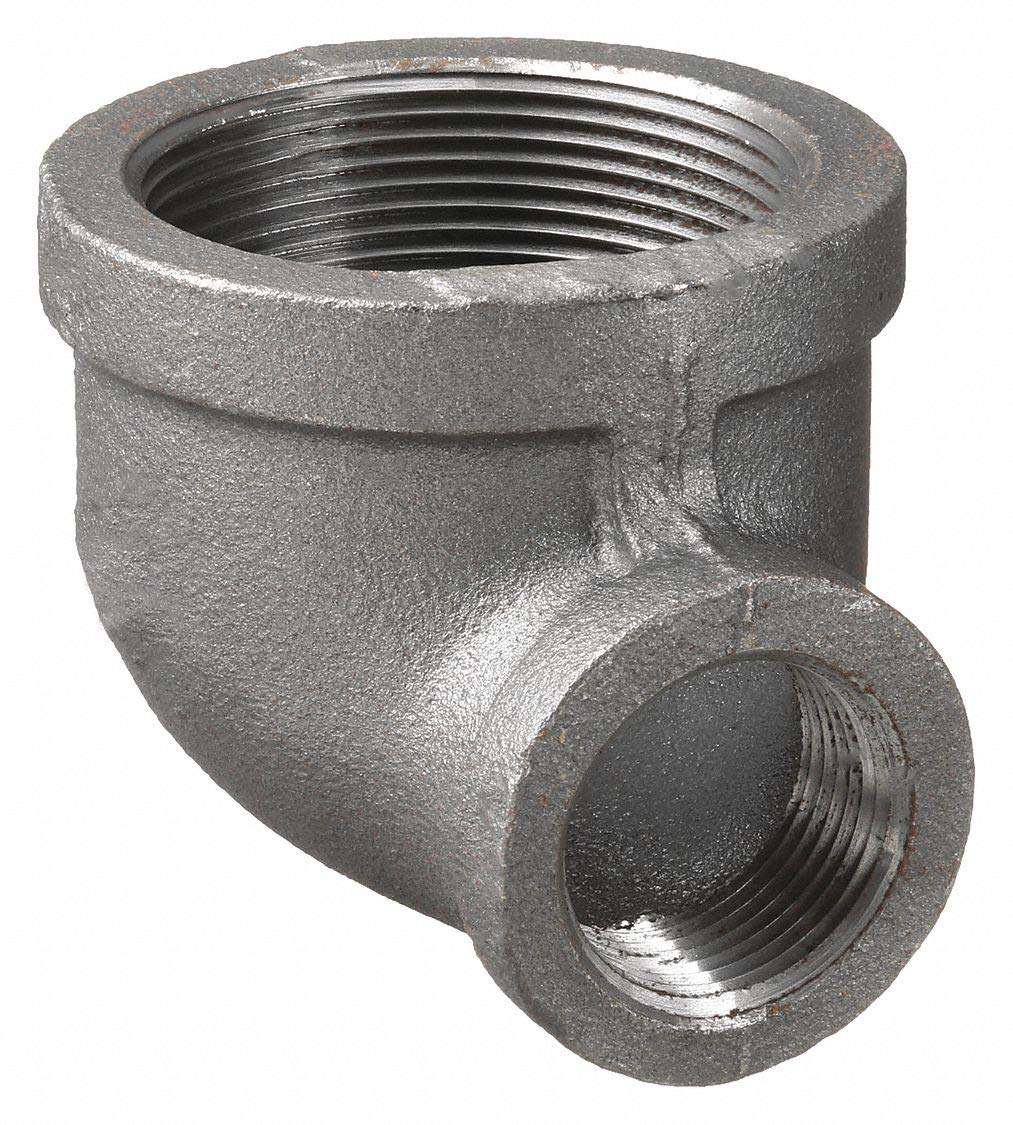

CAI - ANVIL 0310007802 Reducing Elbow 90 Degrees 3/4 x 1/2 Pipe Size

Product Description

The CAI - ANVIL 0310007802 is a reducing elbow designed for low-pressure plumbing applications. It is suitable for air, water, natural gas, and steam systems. This fitting connects two pipes of different diameters and forms a 90-degree angle, making it ideal for various plumbing tasks.

• Material: Malleable Iron
• Pipe Size: 3/4 inches x 1/2 inches
• Max Pressure: 300 psi at 150 degrees Fahrenheit

Product Highlights

This reducing elbow is constructed from durable malleable iron and meets several industry standards. It is designed to facilitate smooth transitions and connections in your plumbing systems.

Product Information

Standard Information

• Model Number: 0310007802
• Brand: CAI - ANVIL

Technical Specifications

• Fitting Schedule/Class: Class 150
• Connection Type: FNPT
• Standards: ASME B16.3, UL, FM Approved
• Max. Pressure: 300 psi
• Saturated Steam Pressure: 150 psi at 350 degrees Fahrenheit
• Temperature Range: -20 degrees to 350 degrees Fahrenheit
• Specifications Met: ASME B16.3, ASTM A197, ANSI/NSF 61
• Product Type: Reducing Elbow
