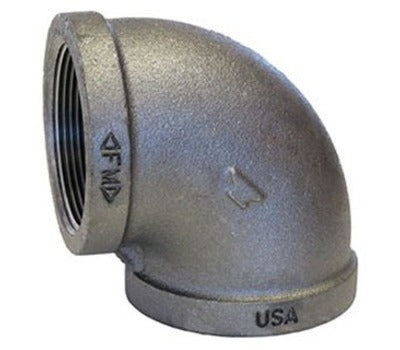

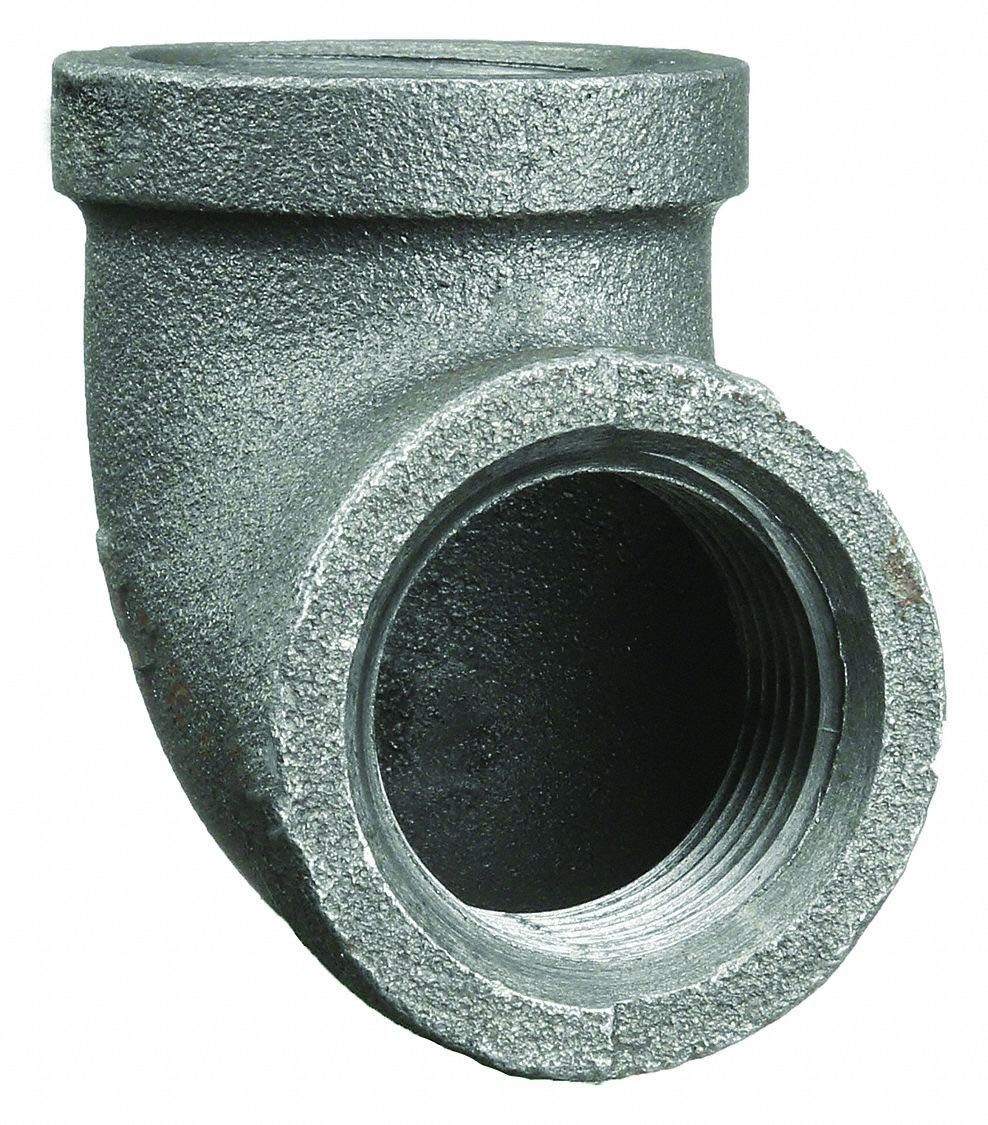

CAI - ANVIL 0310001409 1-1/4 in. Female Black Malleable Iron 90-Degree Elbow

Product Description

The CAI - ANVIL 0310001409 is a 1-1/4 inch female black malleable iron 90-degree elbow fitting. This fitting is designed for low-pressure plumbing applications such as air, water, natural gas, and steam. It conforms to ASME B16.3 and is ideal for connecting pipes at an angle. This fitting can handle pressures up to three hundred psi at one hundred fifty degrees Fahrenheit, making it suitable for various plumbing tasks.

• Material: Malleable Iron
• Connection Type: FNPT
• Max Temperature: 350 Degrees F

Product Highlights

This fitting provides reliable connections for systemic flow in plumbing setups. It is built to withstand high pressure and varying temperatures, ensuring long-term durability.

Product Information

Standard Information

• Product Type: Pipe Fitting
• Fitting Schedule: Class 150

Technical Specifications

• Pipe Size: 1-1/4 inch
• Max Pressure: 300 psi
• Saturated Steam Pressure: 150 psi
• Temperature Range: -20 to 350 Degrees F
• Standards: UL, FM Approved, ASME B16.3
• Color: Black
• Weight: .97 lb.
• UPC: 696504954200
